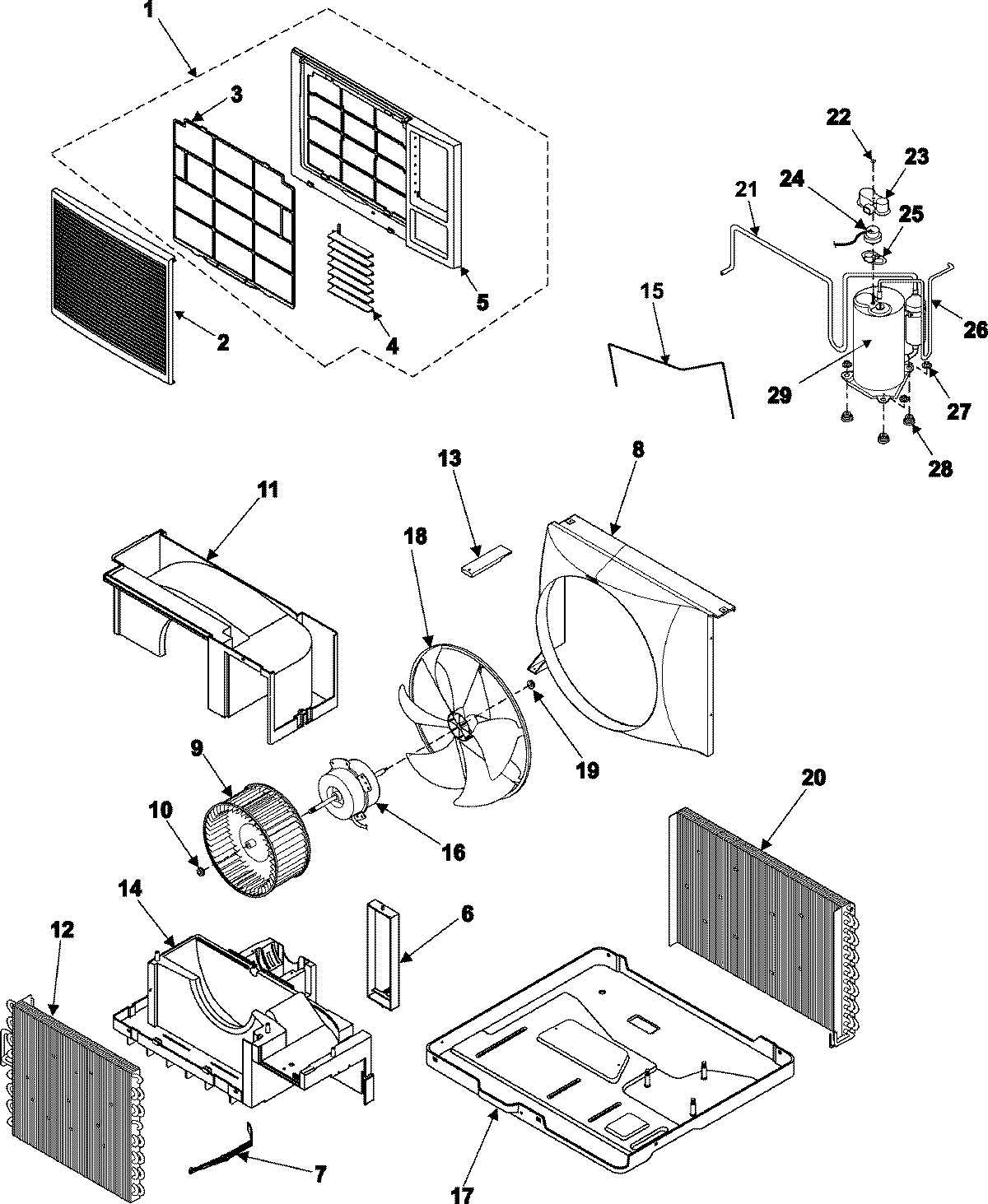

AW0790A 01 – CHASSIS ASSEMBLY

AW0790A 01 – CHASSIS ASSEMBLY

Written by

in

AW0790A 01 – CHASSIS ASSEMBLY

Products

PositionProduct
2MAY DB64-10158A
3MAY DB63-30158A
4MAY DB66-30191A
5MAY DB64-70093A
6MAY DB66-30211B
7MAY DB66-70030A
9MAY DB67-50078A
13MAY DB61-00027B
14MAY DB90-00002D
16MAY DB31-00073E
17MAY DB90-20212F
18MAY DB67-50077A
19MAY DB60-30004A
20MAY DB96-01082A
21MAY DB96-00008B
22MAY DB60-30018A
23MAY DB63-10026A
24MAY DB47-20001V
25MAY DB63-20002A
26MAY DB62-00150C
27MAY DB60-30028A
28SEE NOTE GROUND WIRE, GREEN
29MAY 44A072HW1EB
