AW0790A 02 – CONTROL ASSEMBLY

AW0790A 02 – CONTROL ASSEMBLY

Written by

in

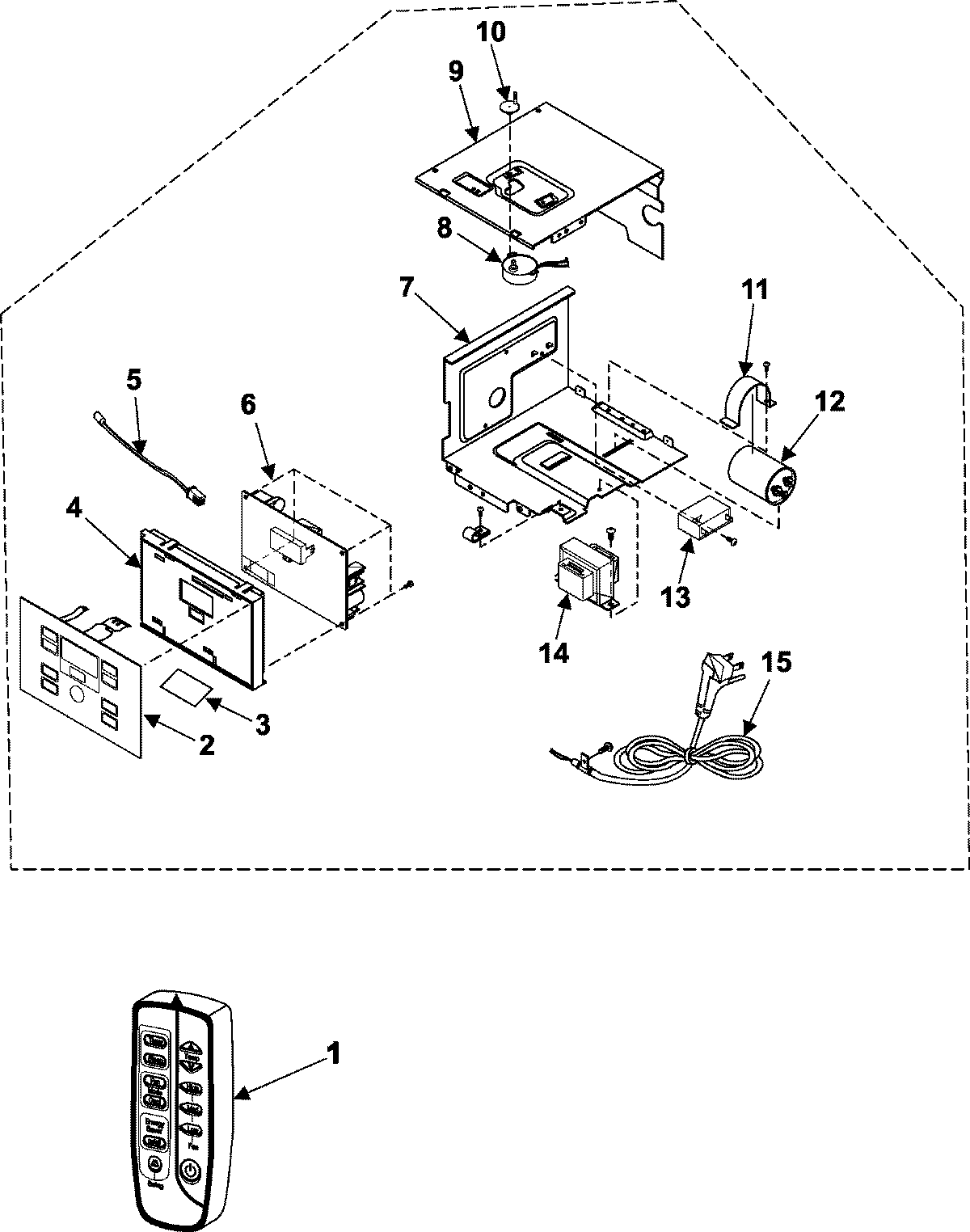

AW0790A 02 – CONTROL ASSEMBLY

Products

PositionProduct
1MAY DB93-00284K
2MAY DB34-00013B
3MAY DB64-00321A
4SEE NOTE GROUND WIRE, GREEN
5MAY DB32-10051B
6MAY DB93-00407A
7MAY DB61-00417A
8MAY DB31-00084A
9MAY DB61-00419A
10MAY DB66-70031A
11MAY DB65-10008B
12MAY 2501-001226
13MAY 2301-001449
14MAY DB26-00006B
15MAY DB39-00343A
