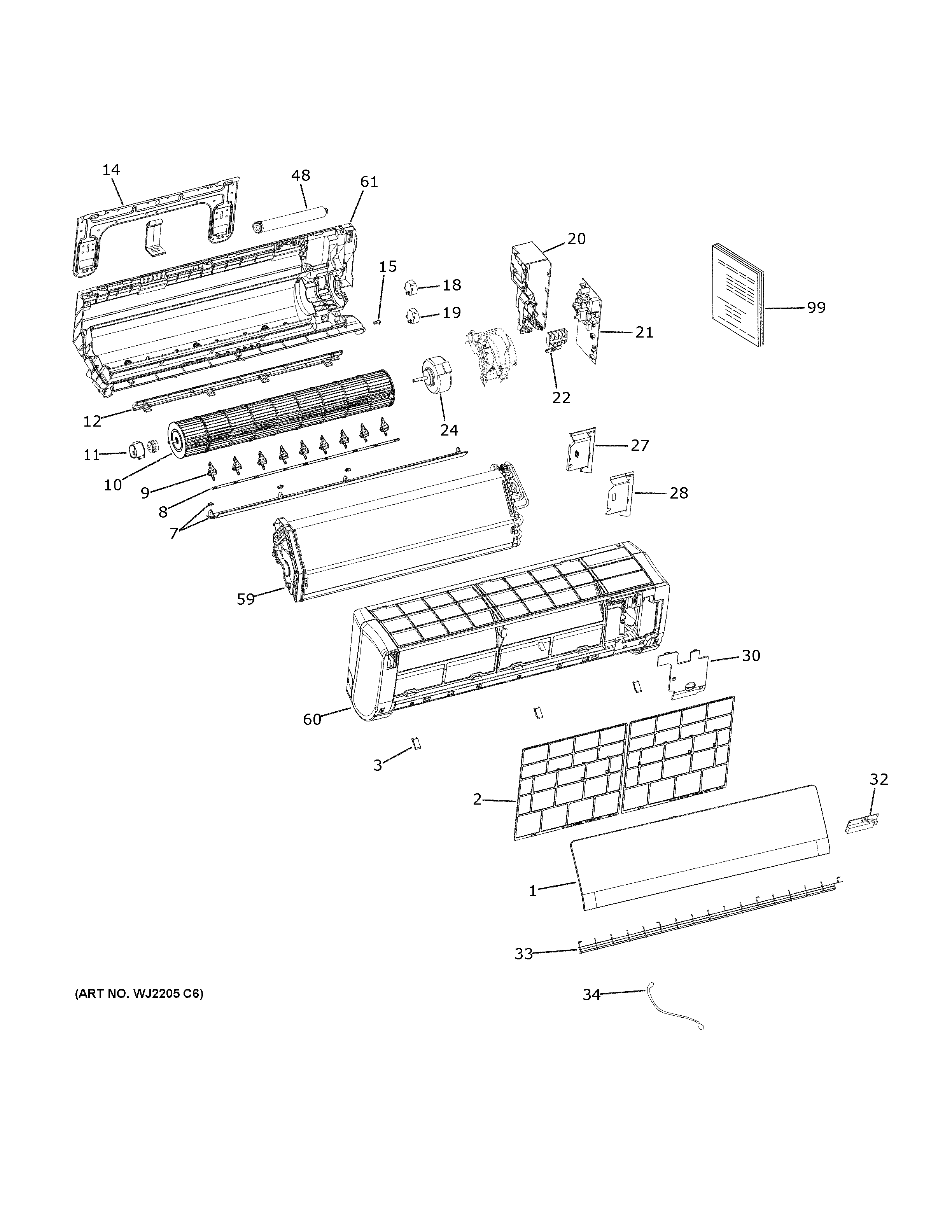

AW07LC2VHB ROOM AIR CONDITIONER

Products

Position	Product
1	TOP PANEL
2	WJ85X23764 GE Air Filter
3	WJ01X24224 GE Cover Bolt
7	HORIZONTAL LOUVER
8	WJ43X24083 GE Connecting Rod
9	VERTICAL LOUVER
10	WJ73X23234 GE Cross Flow Fan
11	WJ73X23028 GE Fan Cross Flow Bearing
12	AIR OUTLET FRAME
14	REAR BRACKET
15	WJ01X24220 GE Axletree Cover Assembly
18	SWING MOTOR
19	SWING MOTOR
20	ELECTRICAL BOX
21	INDOOR POWER CONTROL BOARD
22	WJ26X23043 GE Terminal Block
24	WJ94X23035 GE Indoor Motor
27	WJ76X24371 GE Electrical Box Cover (Plastic)
28	WJ76X24360 GE Electrical Box Cover (Metal)
30	WJ76X28093 GE Air Conditioner Cover
32	WJ71X23031 GE Display Panel
33	GUARD
34	WJ26X23042 GE Temperature Sensor Assembly
48	WJ01X23511 GE Drain Hose
59	EVAPORATOR COIL
60	CASING ASSEMBLY
61	WJ71X31853 GE Evap Case Assembly W/Drain Pan
99	PM OTHER
99	PM OTHER
