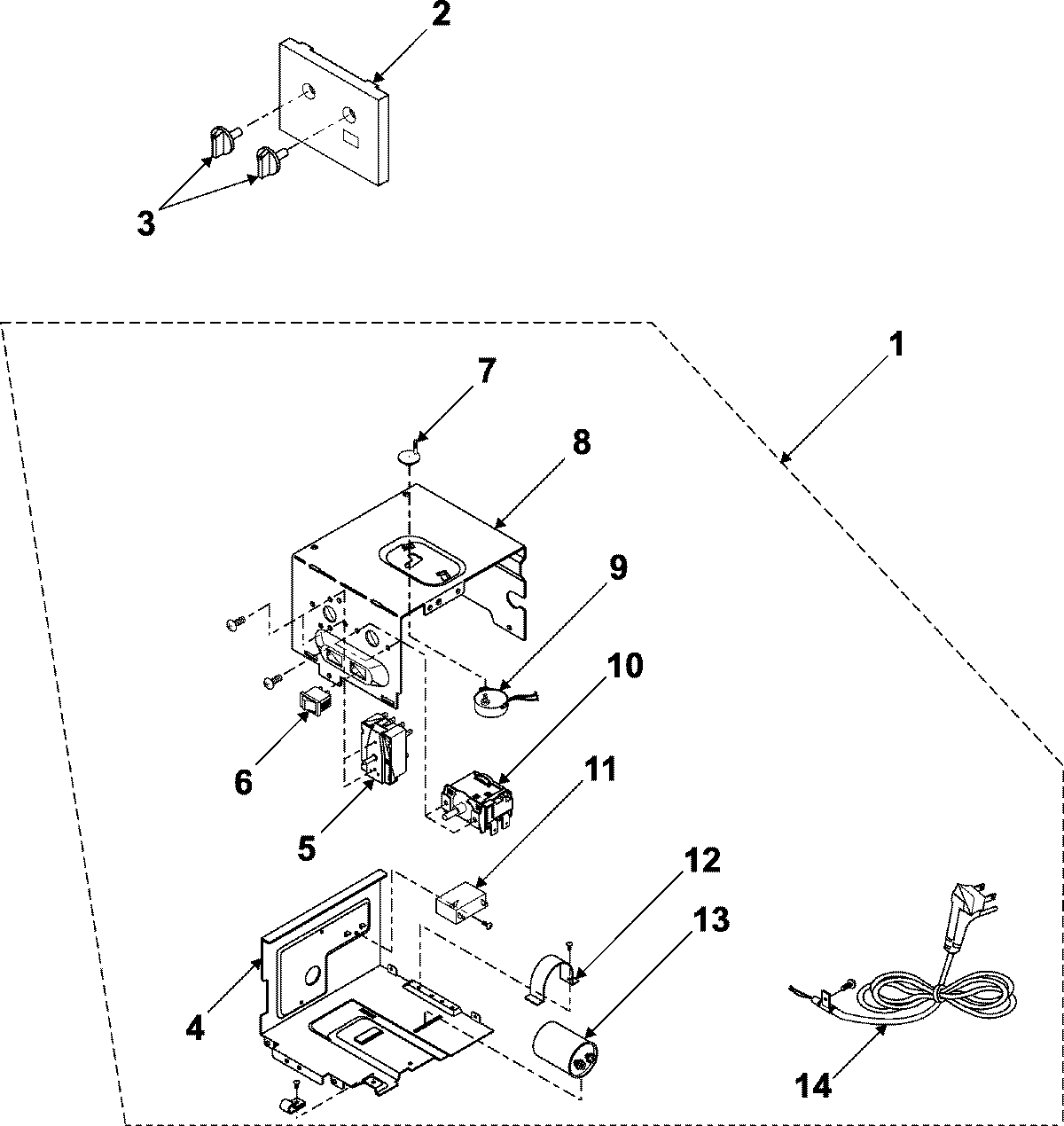

AW0800A 02 – CONTROL ASSEMBLY

AW0800A 02 – CONTROL ASSEMBLY

Written by

in

AW0800A 02 – CONTROL ASSEMBLY

Products

PositionProduct
2MAY DB64-00258D
3MAY DB64-50138A
4MAY DB61-00417A
5MAY 3406-001045
6MAY 3401-001030
7SEE NOTE GROUND WIRE, GREEN
8MAY DB61-00418A
9MAY DB95-20065F
10MAY DB47-20074G
11MAY 2301-001449
12MAY DB65-10008B
13MAY 2501-001228
14MAY DB39-00343A
