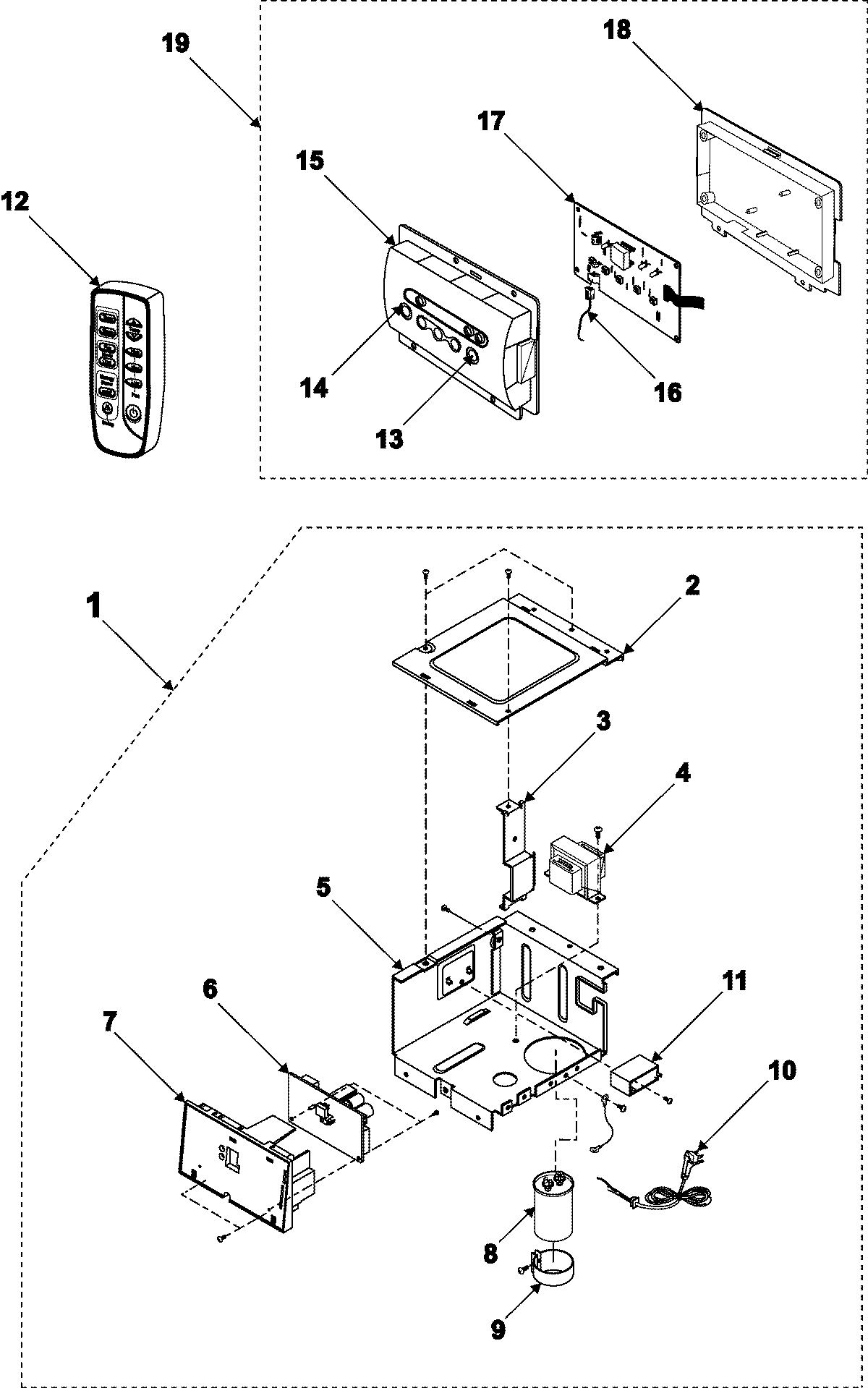

AW0801B 02 – CONTROL ASSEMBLY

Written by

Products

Position	Product
1	MAY DB93-01633B
2	MAY DB61-00670A
3	MAY DB61-00676A
4	MAY DB26-00006G
5	MAY DB61-00669A
7	MAY DB63-00511A
8	MAY 2501-001228
9	MAY DB65-00031A
10	MAY DB39-00343D
11	MAY 2301-001448
12	MAY DB93-01433F
17	DB93-01493A Samsung Printed Circuit Board Main Assembly
18	SEE NOTE GROUND WIRE, GREEN
19	MAY DB92-00395A
