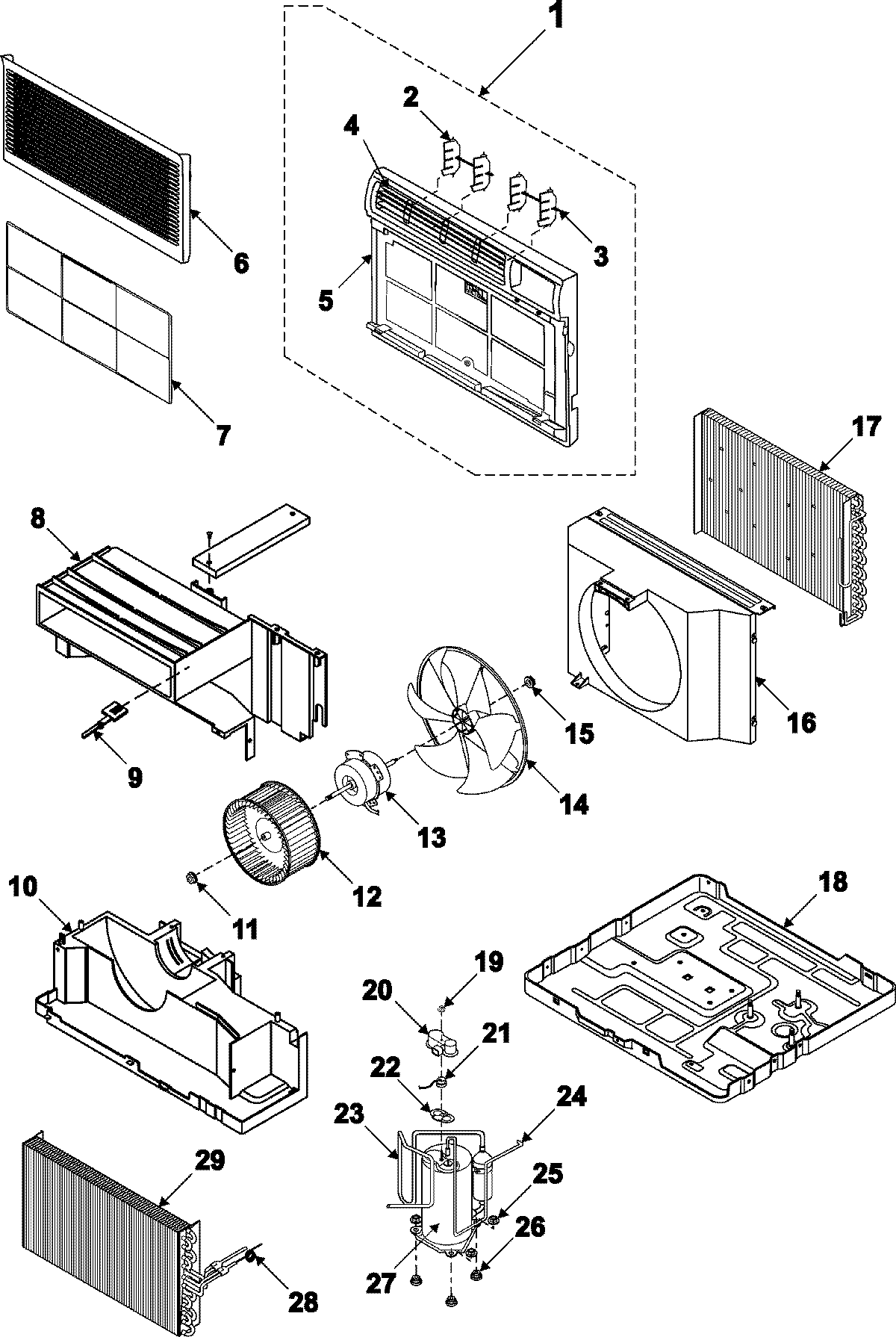

AW0801M 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00398A
3	MAY DB66-00165A
6	SEE NOTE GROUND WIRE, GREEN
7	MAY DB63-00513A
8	MAY DB90-00293A
9	MAY DB66-00430A
10	MAY DB90-00328A
11	MAY DB60-30004A
12	MAY DB67-00099A
13	MAY DB31-00148A
14	MAY DB67-50077A
15	MAY DB60-30020A
16	MAY DB90-00337A
17	MAY DB96-00995A
18	MAY DB90-20212F
19	MAY DB60-30001A
20	MAY DB63-10026A
22	MAY DB63-20003A
23	MAY DB62-00484A
24	MAY DB62-00675A
25	MAY DB60-30028A
26	MAY DB73-00016A
27	MAY 44A080HU1EB
28	MAY DB62-00486A
29	MAY DB96-01028A
