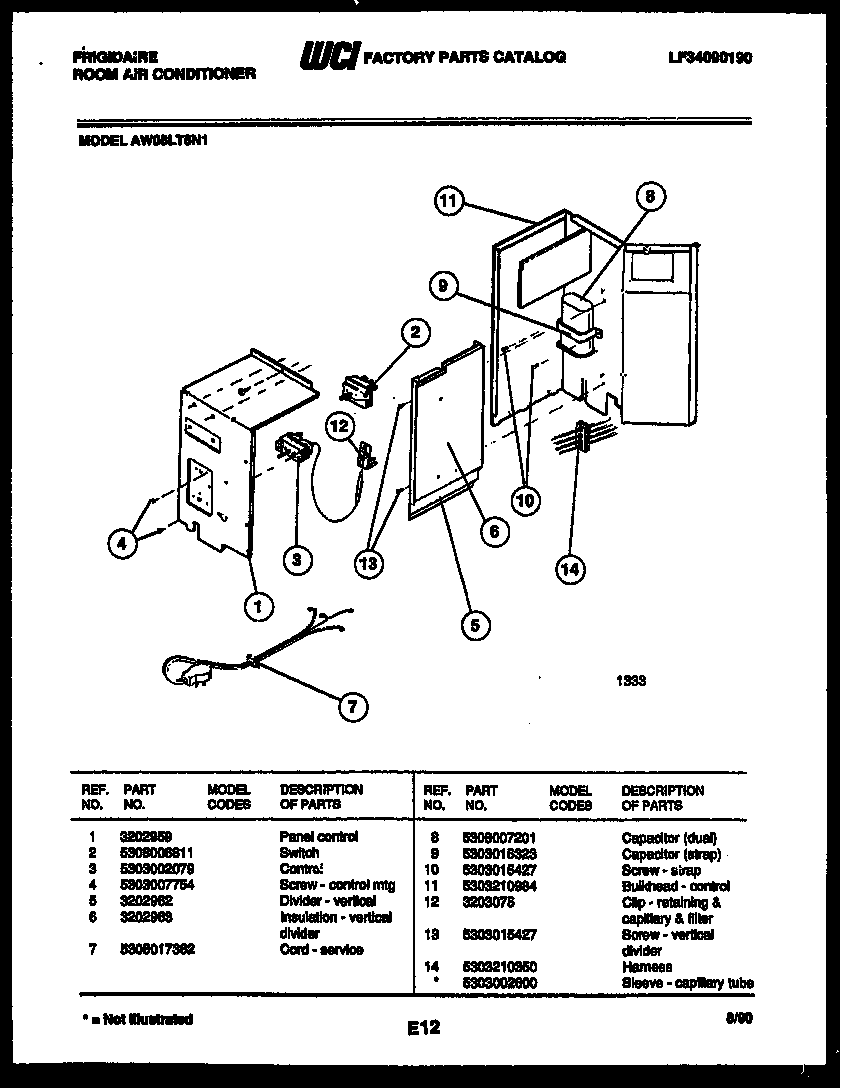

AW08LT5N1 03 – ELECTRICAL PARTS

Products

Position	Product
*33848	SLEEVE-CAP TUBE (NON-ILLUSTRATED)
*33849	WCI 5303012110
1	WCI 32029075
1	WCI 3202959
2	WCI 5303202805
2	SWITCH
3	BULKHEAD-AIR SYSTEM
3	CONTROL
4	SCREW
4	WCI 5303207278
5	FAN-BLADE-W/ CLAMP
5	DIVIDER
6	WCI 3202963
6	WCI 5303201132
7	CORD-SERVICE
7	WCI 3202956
8	WCI 5308007201
8	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
9	131202300 Frigidaire Screw
9	STRAP
10	WCI 3202957
11	PAD - COVER
11	WCI 5303210984
12	CLIP-FILTER & SENSING BULB
13	134178901 Frigidaire Screw
14	WCI 5303210350
