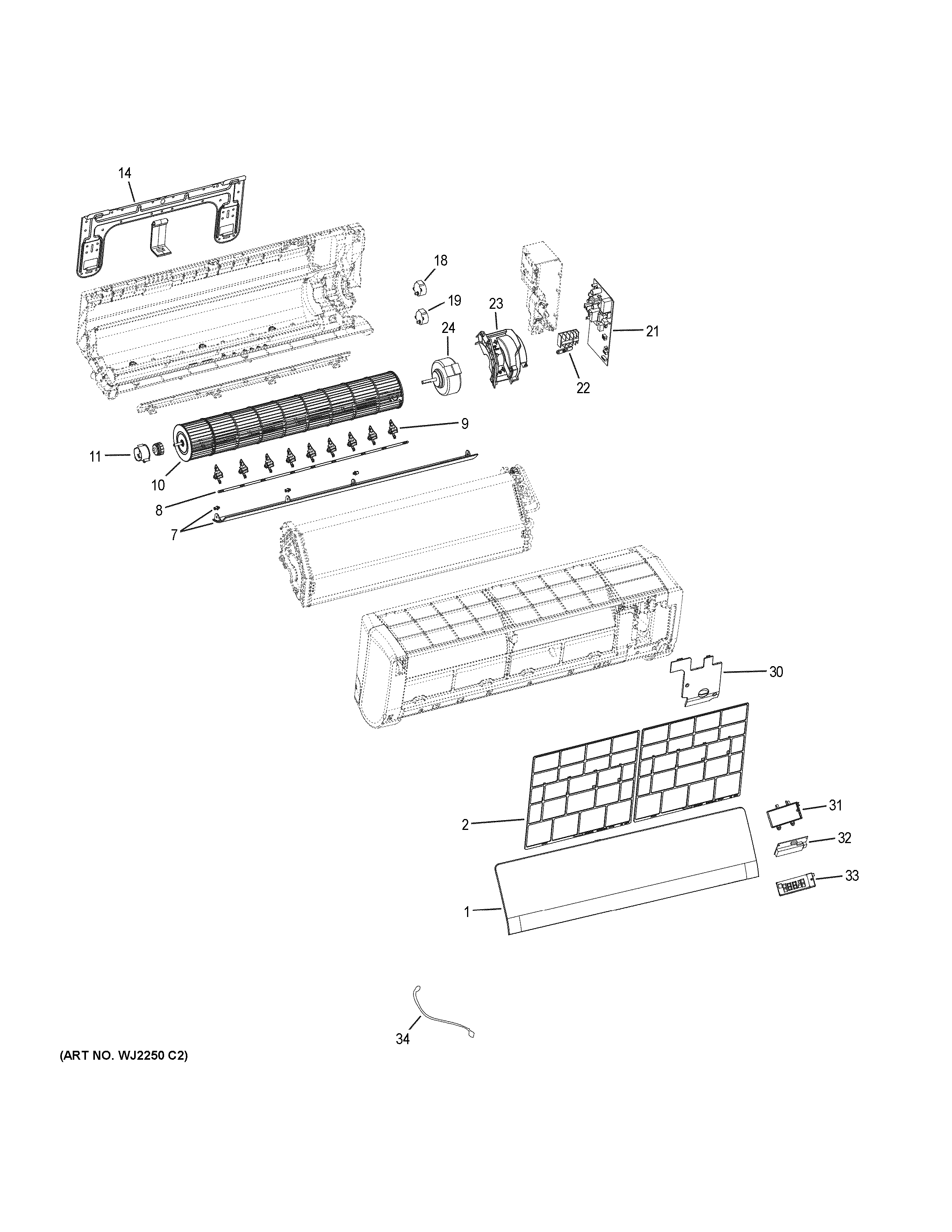

AW09ES2VHA ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X23044 GE Top Cover
2	WJ85X30473 GE Air Filter
7	WJ71X23034 GE Horizontal Louvre
8	WJ65X23033 GE Connecting Rod
9	WJ71X23045 GE Vertical Louvre
10	WJ73X23027 GE Fan Cross Flow
11	WJ73X23028 GE Fan Cross Flow Bearing
14	REAR BRACKET
18	WJ94X23041 GE Louver Motor Horizontal
19	WJ94X23040 GE Vertical Louver Motor
21	INDOOR POWER CONTROL BOARD
22	WJ26X23043 GE Terminal Block
23	WJ76X23036 GE Indoor Motor Cover
24	WJ94X23035 GE Indoor Motor
30	COVER BOARD
31	WJ76X23029 GE Display Board Assembly
32	WJ71X23031 GE Display Panel
33	WJ71X23030 GE Display Board Cover
34	WJ26X23042 GE Temperature Sensor Assembly
