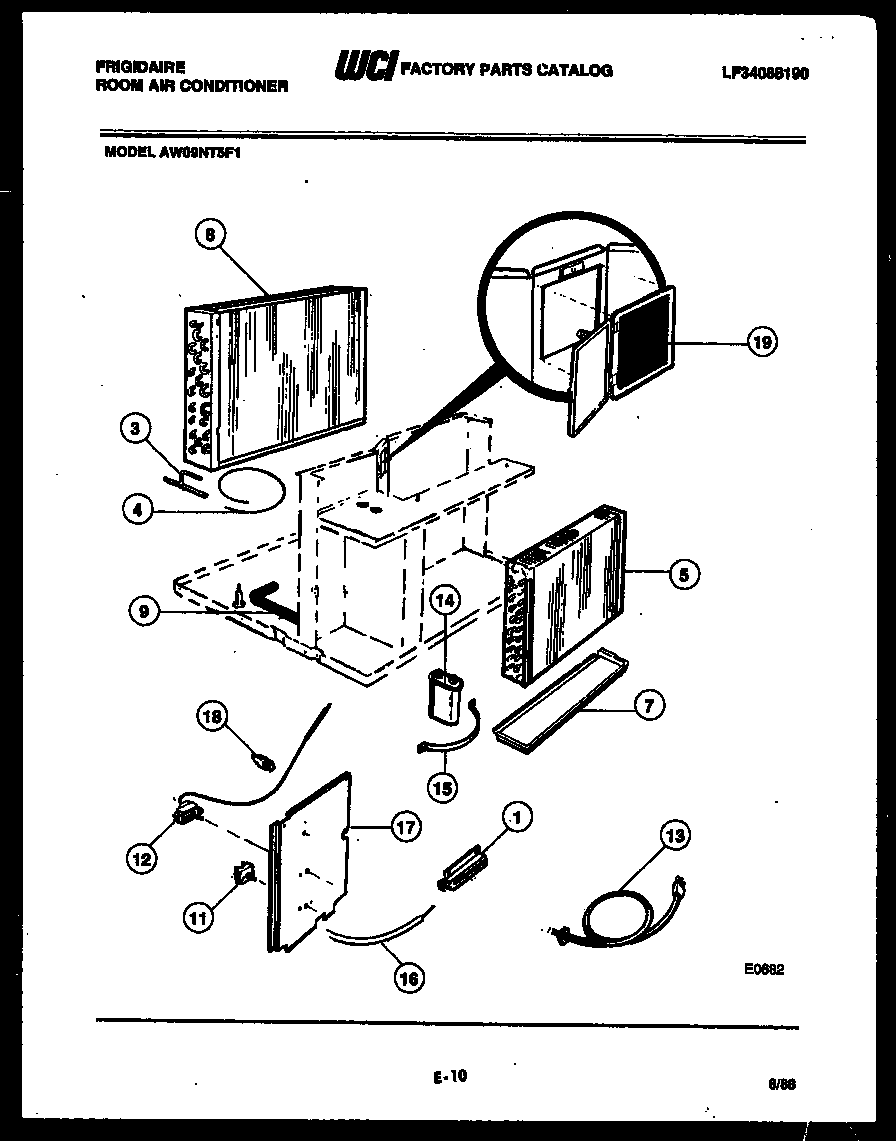

AW09NT5F1 03 – UNIT PARTS
Products
| Position | Product |
|---|---|
| *13385 | WCI 8009027 |
| *13386 | WCI 8007704 |
| *13385 | DRIER |
| *13386 | INSULATOR-CAP TUBE |
| *13386 | CLIP-CONDENSER |
| 1 | WCI 3001848 |
| 1A | ARM-ACTUATOR |
| 3 | STRAINER-ASSEMBLY |
| 4 | CAPILLARY TUBE (CUT TO 40``) |
| 5 | WCI 8014111 |
| 7 | TRAY |
| 8 | WCI 8014108 |
| 9 | WCI 8009022 |
| 11 | SWITCH-SEL |
| 12 | THERMOSTAT-CONTL |
| 13 | WCI 8007861 |
| 14 | WCI 8010867 |
| 15 | CLAMP-CAPACITOR |
| 16 | CABLE, VENT DOOR |
| 17 | PANEL-CONTROL |
| 18 | CLIP-CAP. TUBE |
| 19 | WCI 3012455 |
