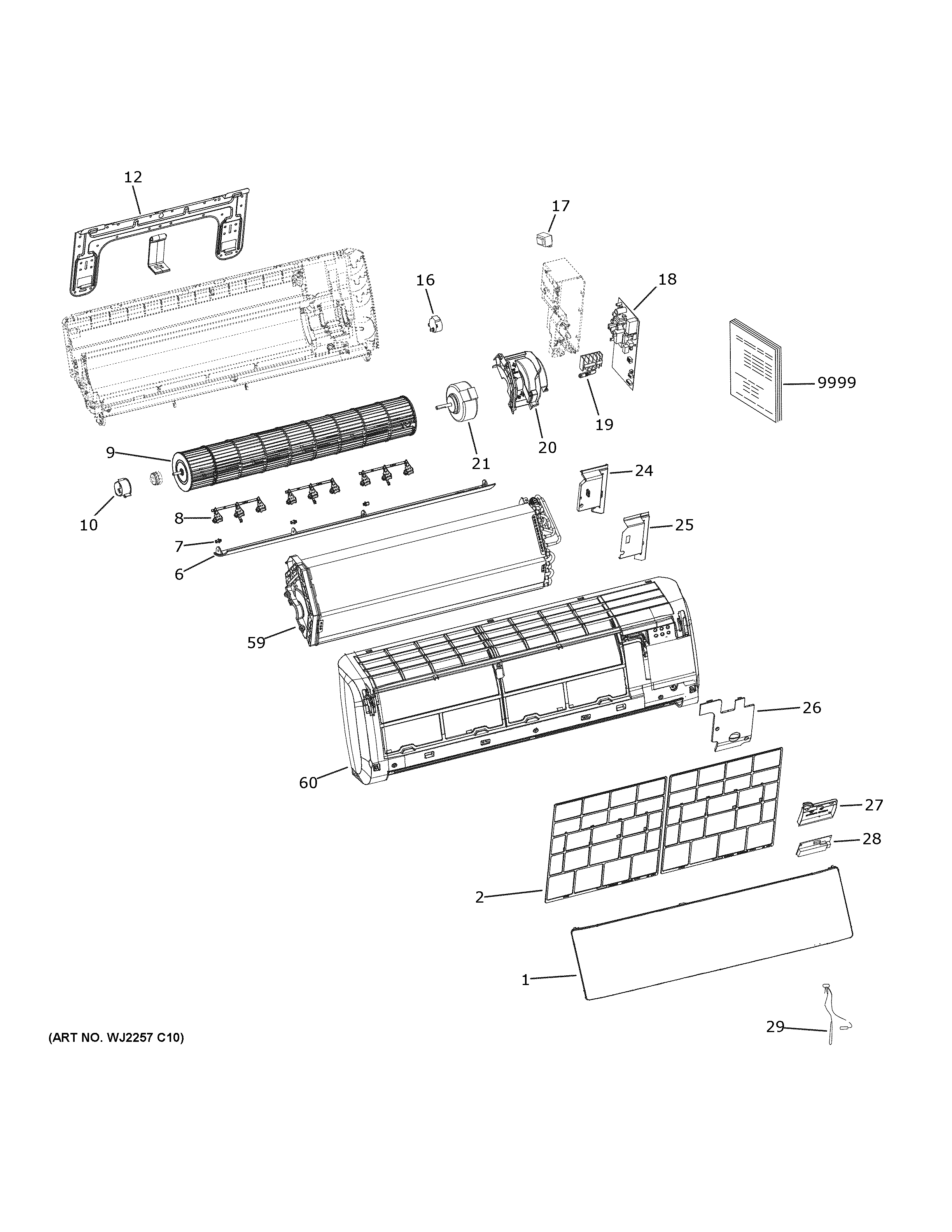

AW09TE1VHA ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X23243 GE Top Panel
2	WJ85X23232 GE Air Filter
6	WJ71X24379 GE Horizontal Louver
7	WJ01X24240 GE Louver Bushing
8	VERTICAL LOUVER
9	WJ73X23234 GE Cross Flow Fan
10	WJ73X23028 GE Fan Cross Flow Bearing
12	MOUNTING BRACKET
16	WJ94X23241 GE Louver Motor Horizontal
17	WJ27X23906 GE Transformer Assembly
18	WJ26X23238 GE Indoor Control Power Board
19	WJ26X23043 GE Terminal Block
20	MOTOR COVER
21	WJ94X23237 GE Indoor Fan Motor
24	WJ76X24371 GE Electrical Box Cover (Plastic)
25	WJ76X24360 GE Electrical Box Cover (Metal)
26	BOARD COVER
27	WJ76X23235 GE Display Board Assembly
28	WJ26X23236 GE Display Panel
29	TEMPERATURE SENSOR
59	EVAPORATOR COIL
60	CASING ASSEMBLY
9999	PM INSTALL INSTRUCTIONS
9999	PM OWNERS MANUAL
9999	PM OTHER
