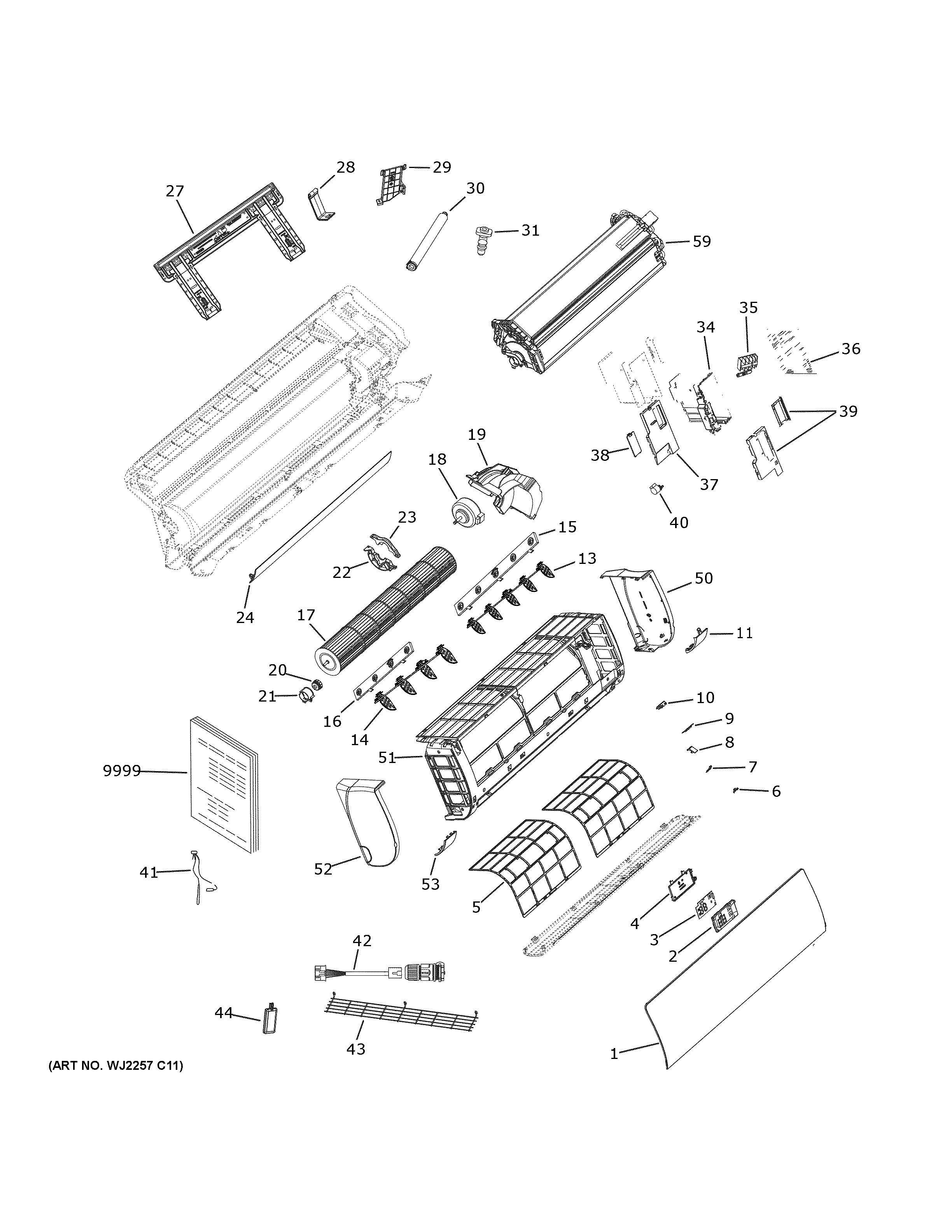

AW09TE2VHA1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X27903 GE Top Panel
2	WJ76X27413 GE Display Box Cover
3	WJ26X26460 GE Display Panel
4	WJ76X26408 GE Display Board Assembly
5	WJ85X27908 GE Air Filter
6	WJ01X26403 GE Panel Latch
7	WJ01X26404 GE Pin
8	WJ76X27905 GE Screw Cover
9	POWER SWITCH
11	WJ71X28274 GE Bottom Access Panel
13	WJ71X27906 GE Right Vertical Louver
14	WJ71X27907 GE Left Vertical Louver
15	WJ65X27911 GE Right Louver Socket
16	WJ65X27912 GE Left Louver Socket
17	WJ73X27901 GE Cross Flow Fan
18	WJ94X23035 GE Indoor Motor
19	WJ76X27913 GE Indoor Cover Motor
20	WJ73X28013 GE Bearing Cover
21	WJ73X23028 GE Fan Cross Flow Bearing
22	WJ76X26407 GE Power Switch Box
23	WJ65X25953 GE Motor Bracket
24	WJ71X27904 GE Horizontal Louver
27	MOUNTING BRACKET
28	WJ65X27896 GE Bracket Drain Pipe
29	WJ76X27895 GE Pipe Channel Cover
30	WJ53X27918 GE Drain Pipe
31	WJ01X26401 GE Drain Plug
34	WJ76X28175 GE Electrical Box
35	WJ26X23043 GE Terminal Block
36	WJ26X27940 GE Indoor Power Control Board
37	WJ76X27876 GE Control Box Cover
38	WJ76X27898 GE Wi-Fi Cover
39	WJ76X27937 GE Metal Cover Control Box
40	WJ26X27923 GE Swing Motor
41	WJ26X23042 GE Temperature Sensor Assembly
42	RJ45
43	WJ71X28026 GE Outlet Guard
44	WiFi-module
50	RIGHT END CAP
51	WJ71X28273 GE Casing
52	LEFT END CAP
53	WJ76X28275 GE Left Cover
59	EVAPORATOR COIL
9999	PM OWNERS MANUAL
9999	PM OTHER
