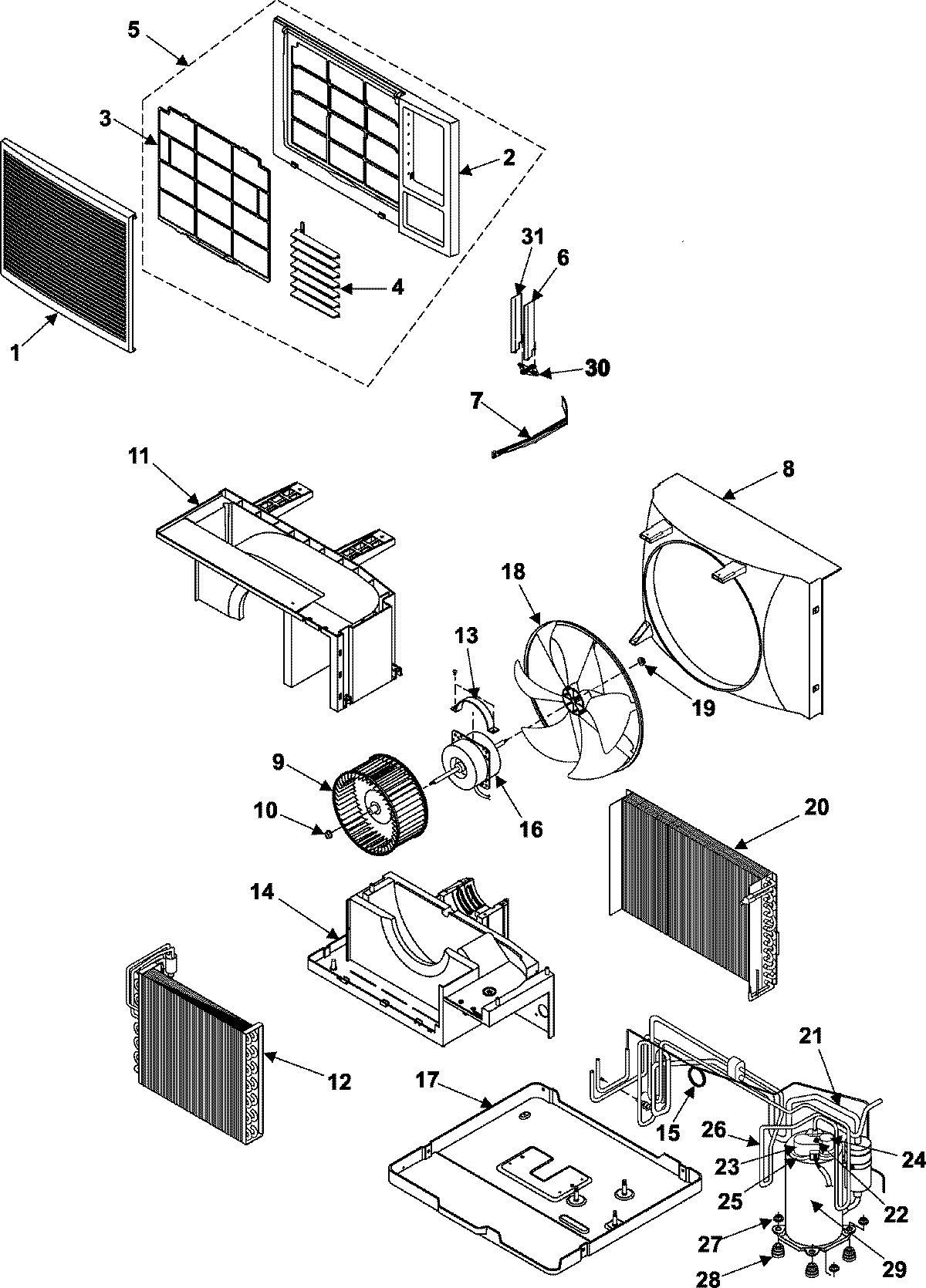

AW1000A 01 – CHASSIS ASSEMBLY

AW1000A 01 – CHASSIS ASSEMBLY

Written by

in

AW1000A 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00059A
1	MAY DB64-00101A
2	MAY DB64-00168A
3	MAY DB63-00073A
3	MAY DB74-10110A
3	MAY DB61-00191A
4	MAY DB66-00049A
5	MAY DB92-00072A
6	MAY DB66-00050A
7	MAY DB66-70024A
8	MAY DB90-00142B
9	MAY DB67-50078A
10	MAY DB60-30020A
13	MAY DB65-10101A
14	MAY DB90-50133H
15	MAY DB62-00342A
15	MAY DB96-00387A
16	MAY DB31-00074A
17	MAY DB90-20184L
18	MAY DB67-50072A
19	MAY DB60-30004A
21	MAY DB96-00348B
22	MAY DB60-30018A
23	MAY DB63-10026A
24	MAY DB35-00004Y
25	MAY DB63-20002A
26	MAY DB62-00327B
27	MAY DB60-30028A
28	SEE NOTE GROUND WIRE, GREEN
29	MAY 44B102HU1EF
30	MAY DB66-60028B
31	MAY DB66-00051A
