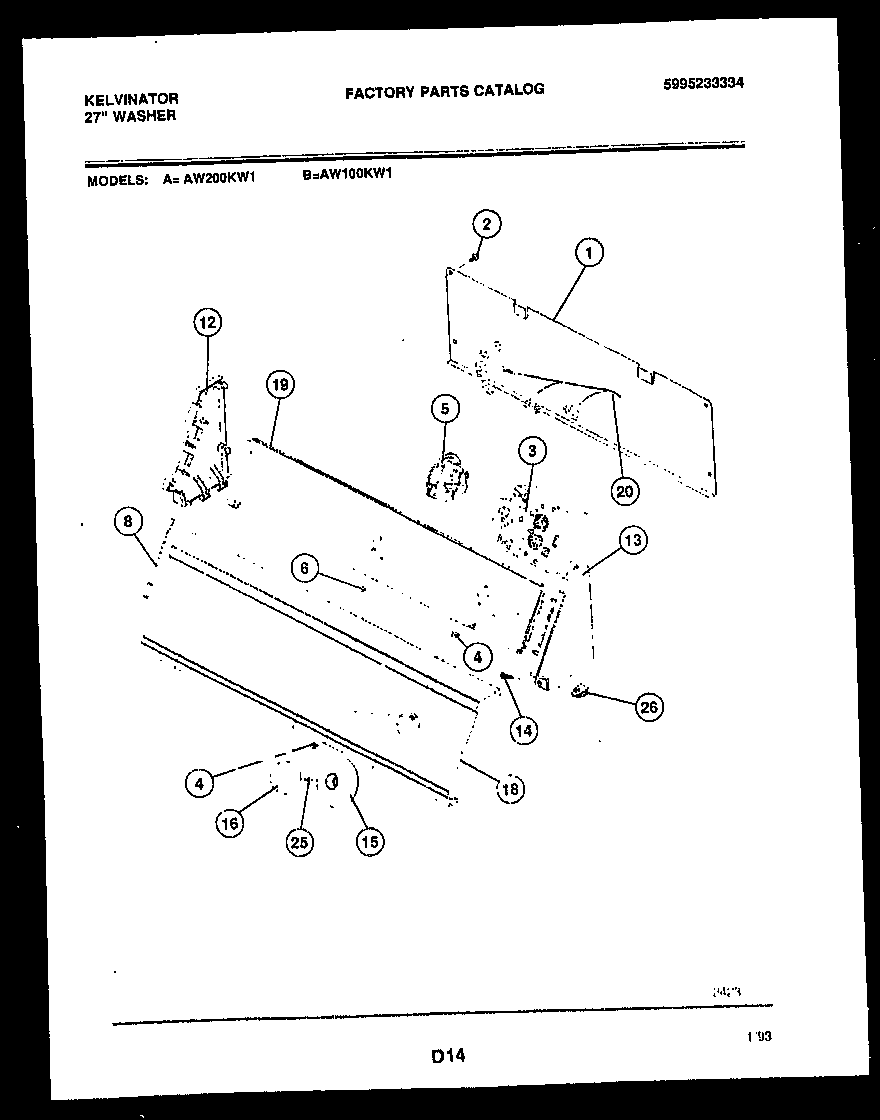

AW100KD1 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*29221	SCREW
*29221	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 5303271758
4	SCREW (2)
5	WCI 131077100
6	5303015671 Frigidaire Bracket Termination Screw
8	WCI 131062204
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	DIAL
16	WCI 5308014337
18	WCI 131087100
19	BRACKET - CONTROL
20	WCI 131077400
25	Spacer,washer ,timer shaft
26	CLIP
