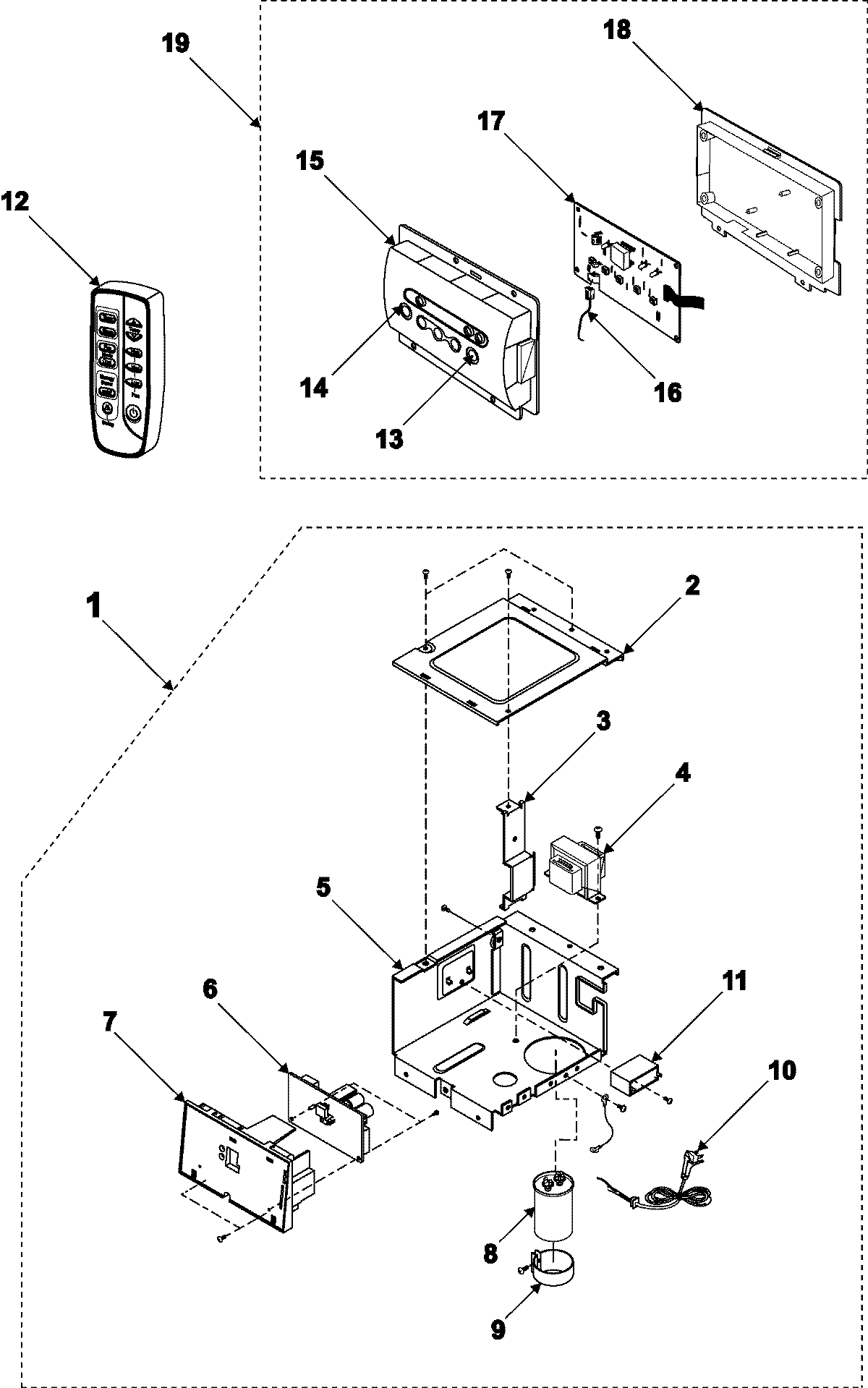

AW1091L 02 – CONTROL ASSEMBLY

Products

Position	Product
1	MAY DB93-01633D
2	MAY DB61-00670A
3	MAY DB61-00676A
4	MAY DB26-00006G
5	MAY DB61-00669A
7	MAY DB63-00511A
8	MAY 2501-001230
9	MAY DB65-00031A
10	MAY DB39-00343E
11	MAY 2301-001452
12	MAY DB93-01364X
17	DB93-01493A Samsung Printed Circuit Board Main Assembly
18	SEE NOTE GROUND WIRE, GREEN
19	MAY DB92-00395A
