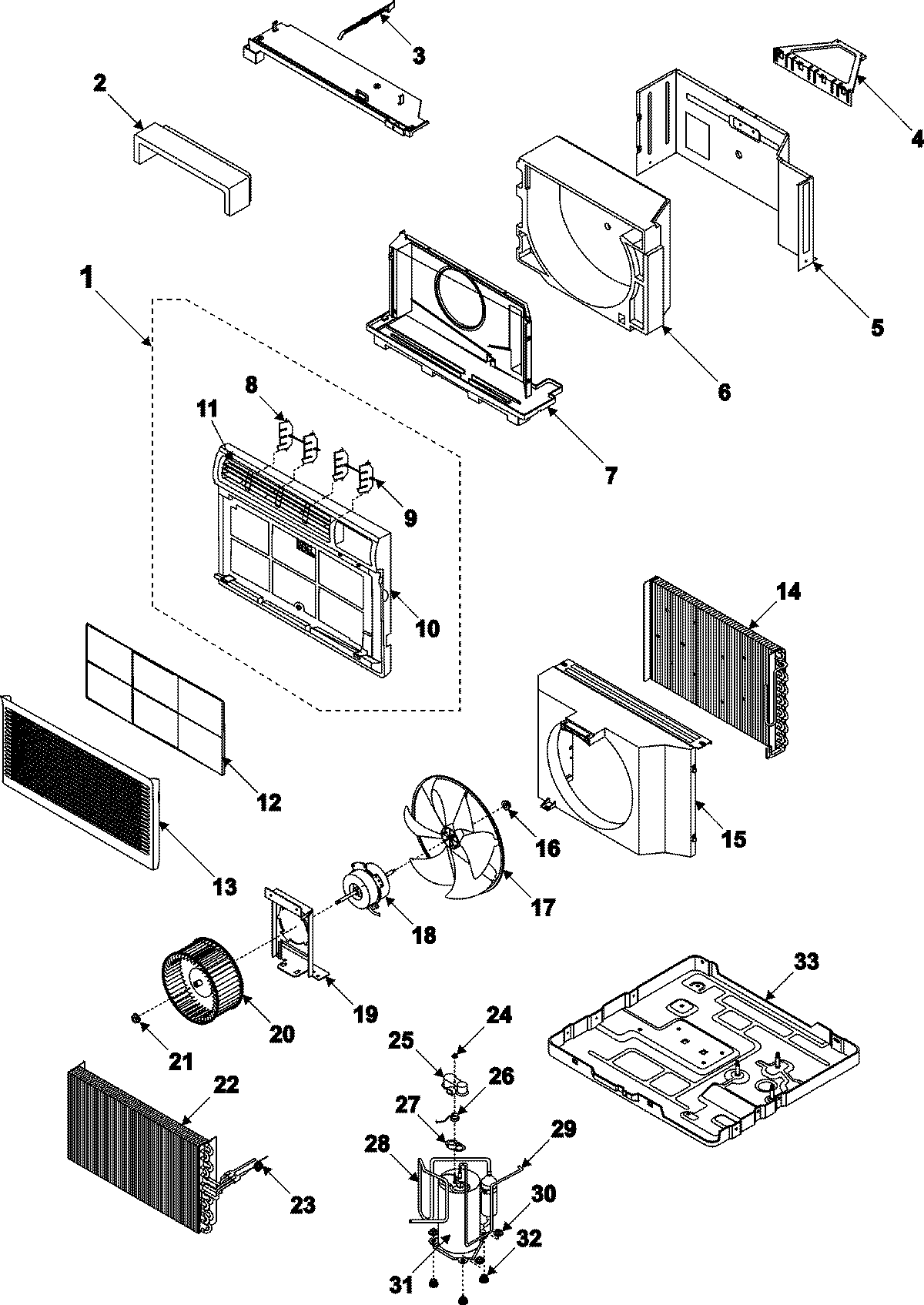

AW1091M 01 – CHASSIS ASSEMBLY

AW1091M 01 – CHASSIS ASSEMBLY

Written by

in

AW1091M 01 – CHASSIS ASSEMBLY

Products

PositionProduct
1MAY DB92-00397A
2MAY DB61-00641A
3MAY DB66-00258A
5MAY DB71-00077B
6MAY DB61-00640A
7MAY DB90-00509A
9MAY DB66-00259A
11MAY DB61-01174A
12MAY DB63-00617A
13SEE NOTE GROUND WIRE, GREEN
14MAY DB96-00982A
15MAY DB61-00647A
16MAY DB60-30020A
17DB67-00139A Samsung Fan Propeller
18MAY DB31-00122A
19MAY DB61-00650A
20MAY DB67-50073A
21MAY DB60-30004A
22MAY DB96-01001A
23MAY DB62-00688B
24MAY DB60-30001A
25MAY DB63-10026A
26MAY DB35-00011D
27MAY DB63-20003A
28MAY DB62-00712A
29MAY DB62-00327A
30MAY DB60-30028A
31MAY 44B098HX1EF
32MAY DB73-00016A
33MAY DB90-00514A
