AW1093M 01 – CHASSIS ASSEMBLY – Aparts

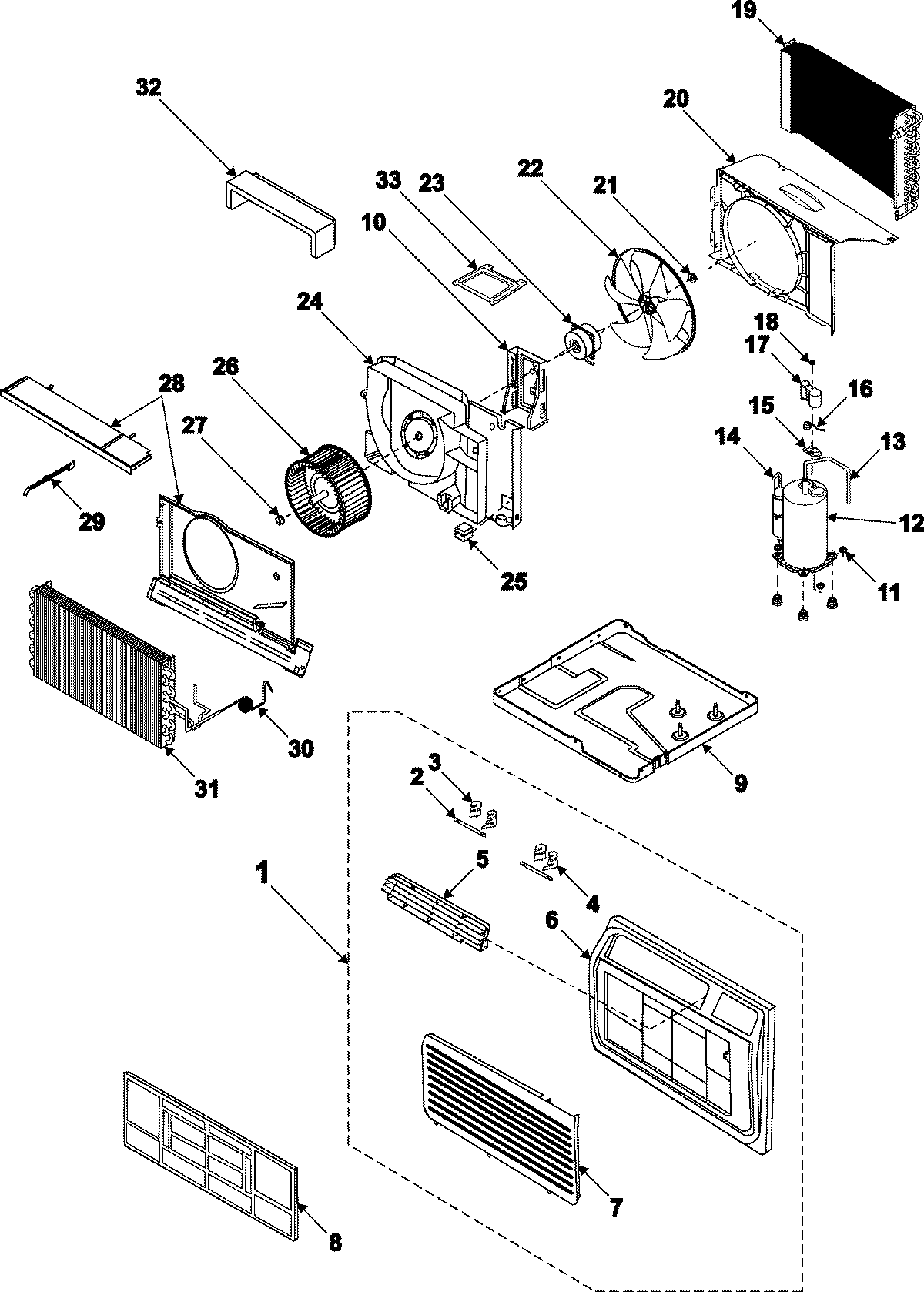

AW1093M 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00553G
2	MAY DB66-00562A
3	MAY DB66-00561A
4	MAY DB66-00560A
5	MAY DB61-01538A
6	MAY DB64-00924A
7	MAY DB64-00925B
8	MAY DB63-00813B
9	MAY DB90-01285B
10	MAY DB90-01420A
11	MAY DB60-30028A
12	MAY 44B098HX1EF
13	MAY DB62-02287A
14	MAY DB62-02213A
16	MAY DB35-00011D
17	MAY DB63-10026A
18	SEE NOTE GROUND WIRE, GREEN
19	MAY DB96-02940A
20	MAY DB61-01537A
21	MAY DB60-30020A
22	DB67-00139A Samsung Fan Propeller
23	MAY DB31-00211B
24	MAY DB97-02047A
25	MAY DB73-00178A
26	MAY DB67-50078A
27	MAY DB60-30004A
28	MAY DB90-01286A
29	MAY DB66-00559A
30	MAY DB62-02367A
31	MAY DB96-02926A
32	MAY DB90-01342A
33	MAY DB70-00367A
