AW109AB 01 – CHASSIS ASSEMBLY – Aparts

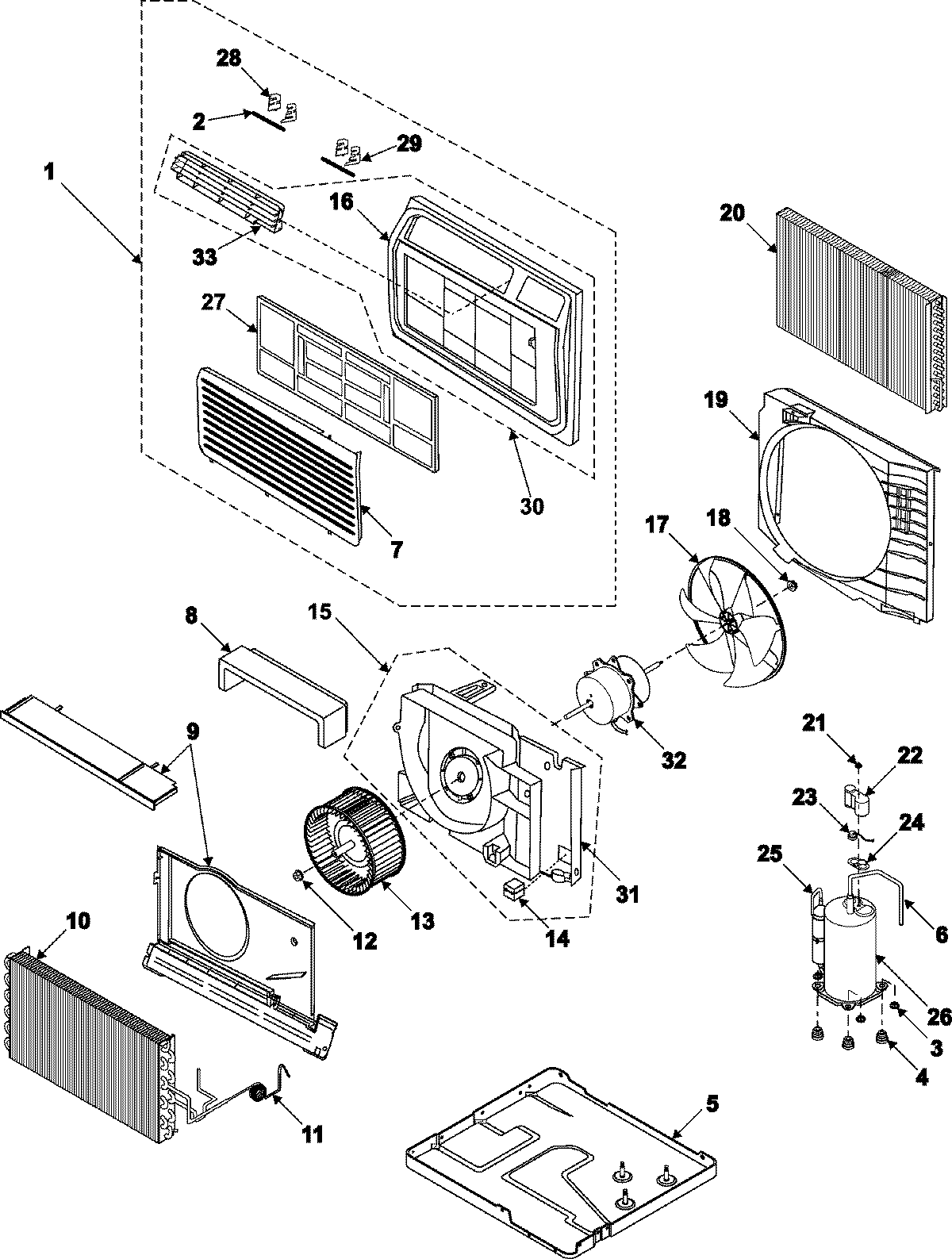

AW109AB 01 – CHASSIS ASSEMBLY

Products

Position	Product
3	MAY DB60-30028A
5	MAY DB90-00514A
6	MAY DB62-00327A
7	MAY DB64-10145A
10	MAY DB96-00983A
11	MAY DB62-00687B
13	MAY DB67-50078A
16	MAY DB64-70080A
17	DB67-00139A Samsung Fan Propeller
18	MAY DB60-30020A
19	MAY DB61-00647A
20	MAY DB96-00979A
21	MAY DB60-30004A
22	MAY DB63-10026A
23	MAY DB35-00011D
24	MAY DB63-20003A
25	MAY DB62-00684A
26	MAY 44B098HX1EF
27	MAY DB63-30142A
29	MAY DB66-30169A
30	MAY DB92-00551K
31	MAY DB71-00075B
32	MAY DB31-00122F
33	SEE NOTE GROUND WIRE, GREEN
