AW109CB 01 – CHASSIS ASSEMBLY – Aparts

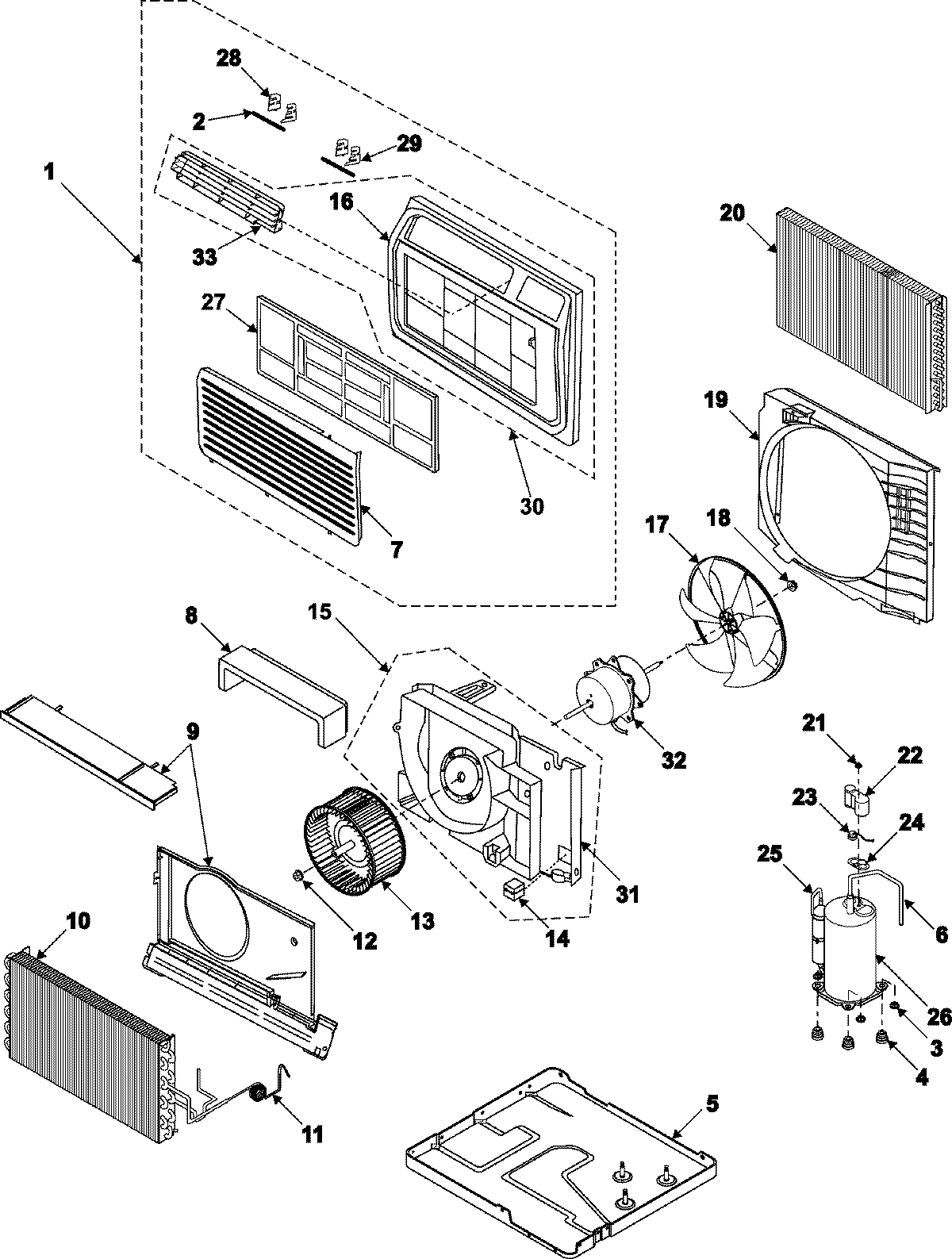

AW109CB 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00553L
2	MAY DB66-00562A
3	MAY DB60-30028A
4	MAY DB63-00763A
5	MAY DB90-01285E
6	MAY DB62-03187D
7	MAY DB64-00925A
8	MAY DB90-01342B
9	MAY DB90-01286C
10	MAY DB96-02926D
11	MAY DB62-04115B
13	MAY DB67-50078E
15	MAY DB94-00925B
16	MAY DB64-00924A
17	MAY DB67-00139B
18	MAY DB60-30020A
19	MAY DB61-01537B
20	MAY DB96-02940E
21	MAY DB60-30004A
22	SEE NOTE GROUND WIRE, GREEN
23	MAY DB35-00022M
24	MAY DB63-00765A
25	MAY DB62-03186C
26	MAY 44B098HXAEF
27	MAY DB63-00813A
28	MAY DB66-00565A
29	MAY DB66-00561A
30	MAY DB92-00551K
31	MAY DB70-00364A
32	MAY DB31-00211C
33	MAY DB61-01538A
