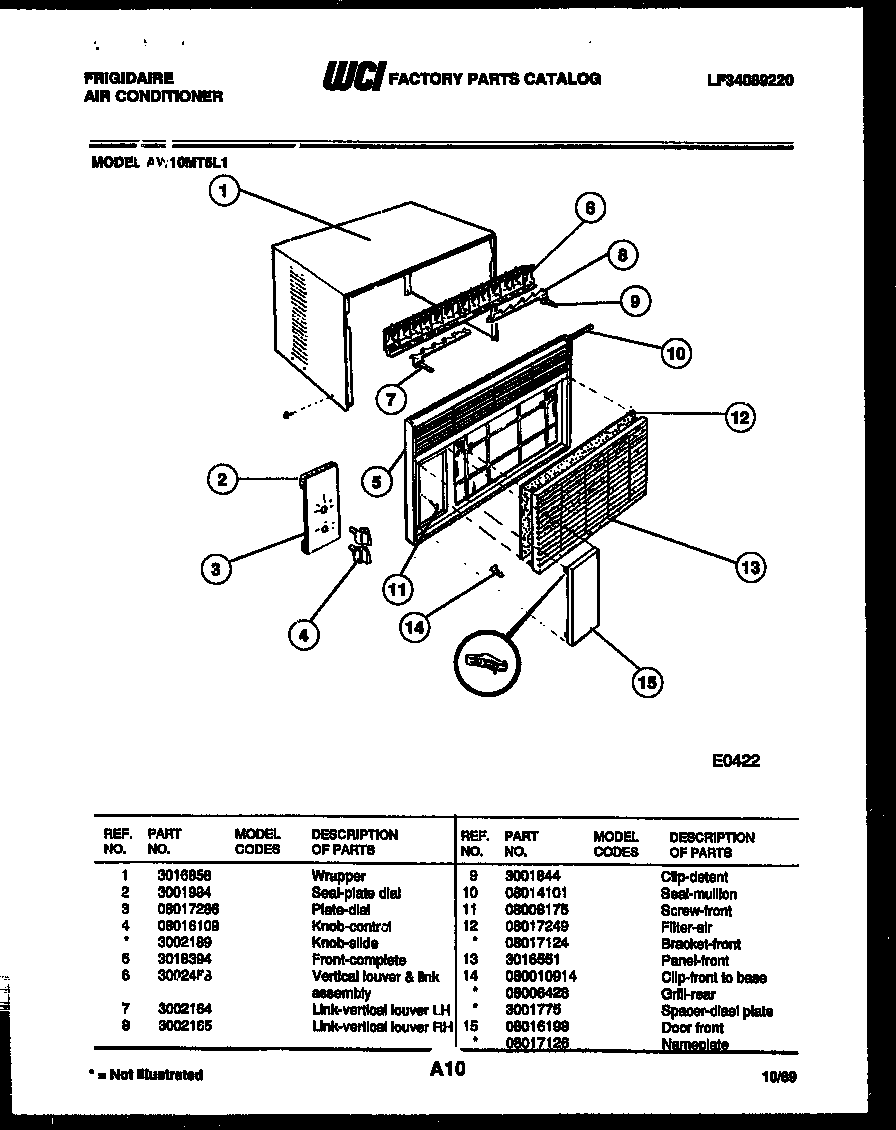

AW10MT5L1 02 – CABINET PARTS

Products

Position	Product
*27477	PLATE-NAME
1	WCI 3016858
2	SEAL-DIAL PLATE
3	DIAL-PLATE
4	WCI 08016109
4A	WCI 3002189
5	WCI 3018394
6	VERT LOUVER AND LINK ASSY
7	LINK-VERT LOUVER RH
8	LINK- VERT LOUVER LH
9	CLIP-DETENT
10	WCI 08014101
11	SCREW-FRONT
12A	BRACKET-FRONT, (NON-ILLUSTRATED)
12	FILTER-AIR-FRAMED
13	WCI 3016551
14B	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
14	WCI 080010914
14A	WCI 08006428
15	WCI 08016198
