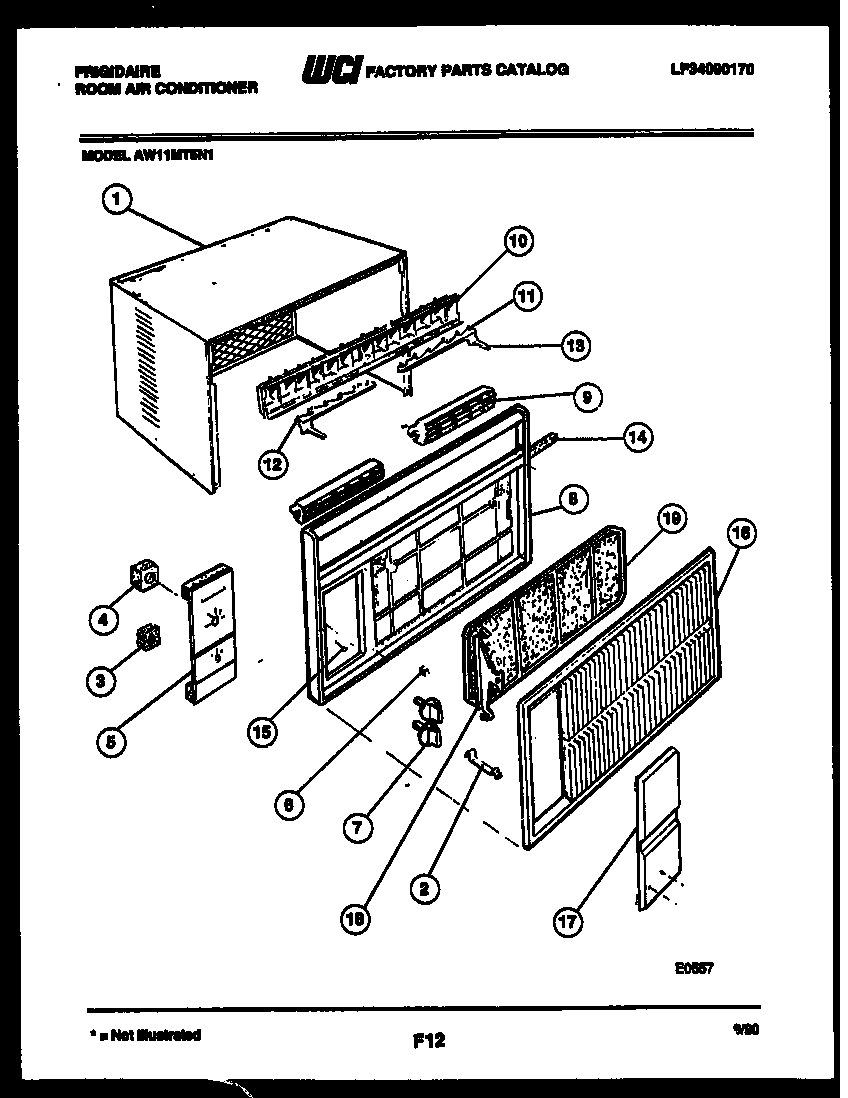

AW11MT5N1 02 – CABINET PARTS

AW11MT5N1 02 – CABINET PARTS

Written by

in

AW11MT5N1 02 – CABINET PARTS

Products

PositionProduct
*33978BRACE – FRONT (NON-ILLUSTRATED)
1WCI 5303207281
2CLIP-FRONT TO BASE
3WCI 5303001775
4WCI 5303001984
5WCI 5308017286
6WCI 5303002189
7WCI 5308016109
8WCI 3204214
9WCI 5303017244
10VERT. LOUVER & LINK ASSY.
11LINK – VERT LOUVER RH
12LINK VERTICAL LOUVER LH
13WCI 5303001844
14WCI 5308014101
15SCREW-FRONT
16PANEL – FRONT
17WCI 5308016198
18WCI 5308017294
19FILTER, FRAMED
