AW1203B 02 – CONTROL ASSEMBLY

AW1203B 02 – CONTROL ASSEMBLY

Written by

in

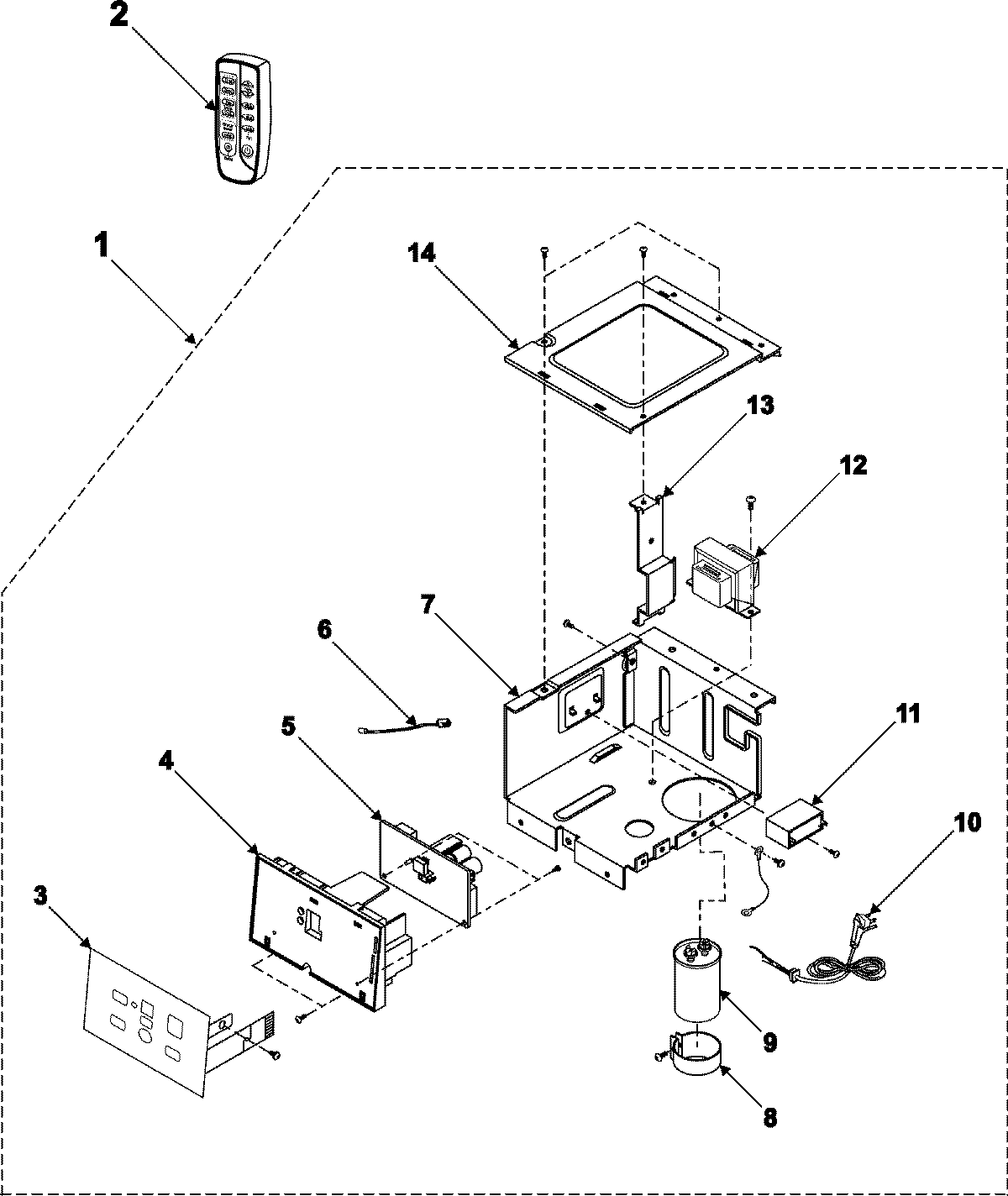

AW1203B 02 – CONTROL ASSEMBLY

Products

PositionProduct
1MAY DB93-02520A
2MAY DB93-03018X
3MAY DB34-00032A
4MAY DB64-00929A
5MAY DB93-02478C
6MAY DB32-10031A
6DB32-10051E Samsung Thermistor
7MAY DB61-00669D
8MAY DB65-00031B
9MAY 2501-001230
10MAY DB39-00343E
11SEE NOTE GROUND WIRE, GREEN
13MAY DB61-00676A
14MAY DB61-00670B
