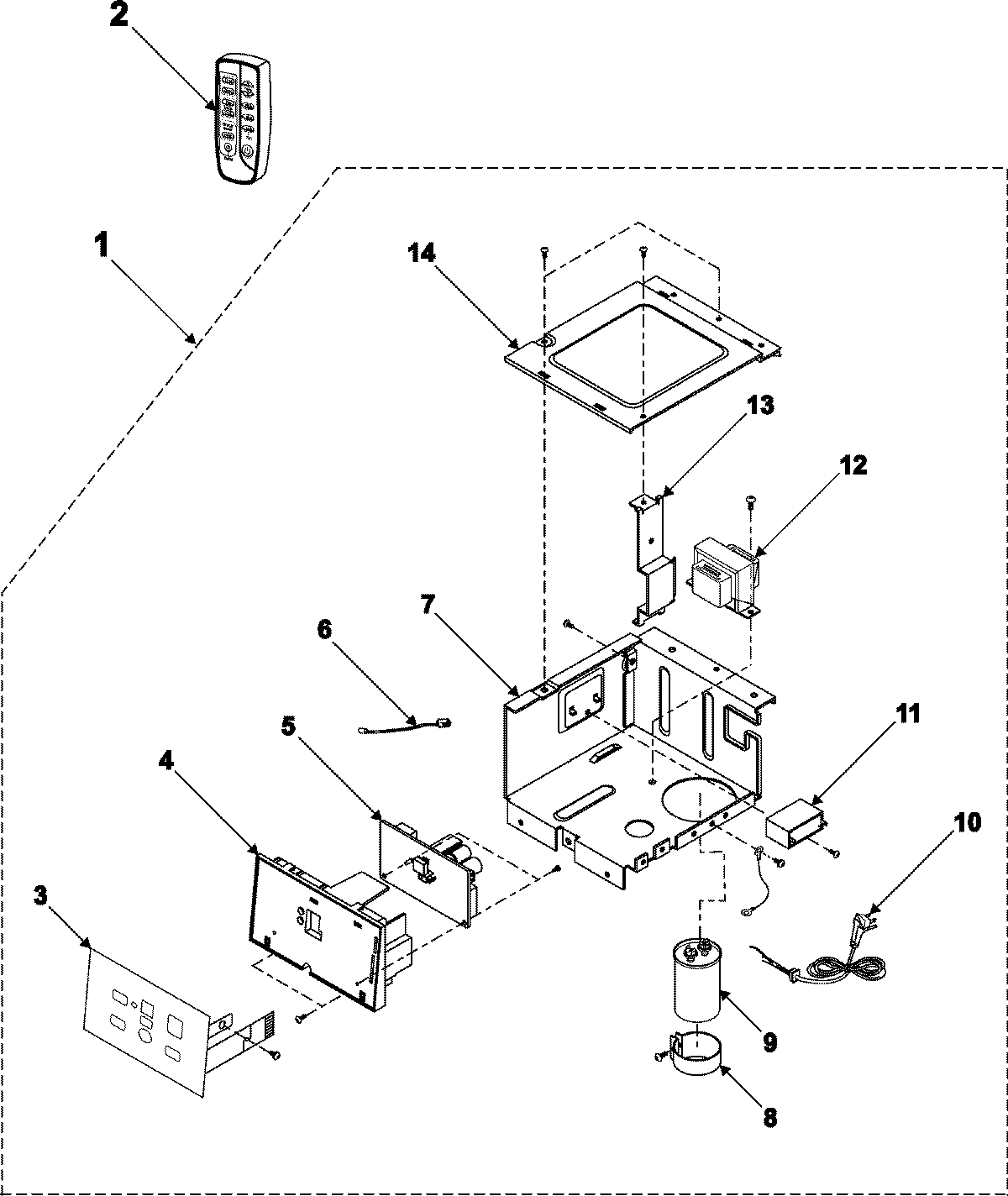

AW1205B 02 – CONTROL ASSEMBLY

AW1205B 02 – CONTROL ASSEMBLY

Written by

in

AW1205B 02 – CONTROL ASSEMBLY

Products

PositionProduct
1MAY DB93-02520C
2MAY DB93-01433S
3MAY DB34-00032D
4MAY DB64-00929A
5MAY DB93-02478C
6DB32-10051E Samsung Thermistor
7MAY DB61-00669B
8MAY DB65-00031A
9MAY 2501-001230
10MAY DB39-00343E
11MAY 2301-001452
13MAY DB61-00676A
14MAY DB61-00670A
