AW1290 02 – CONTROL ASSEMBLY – Aparts

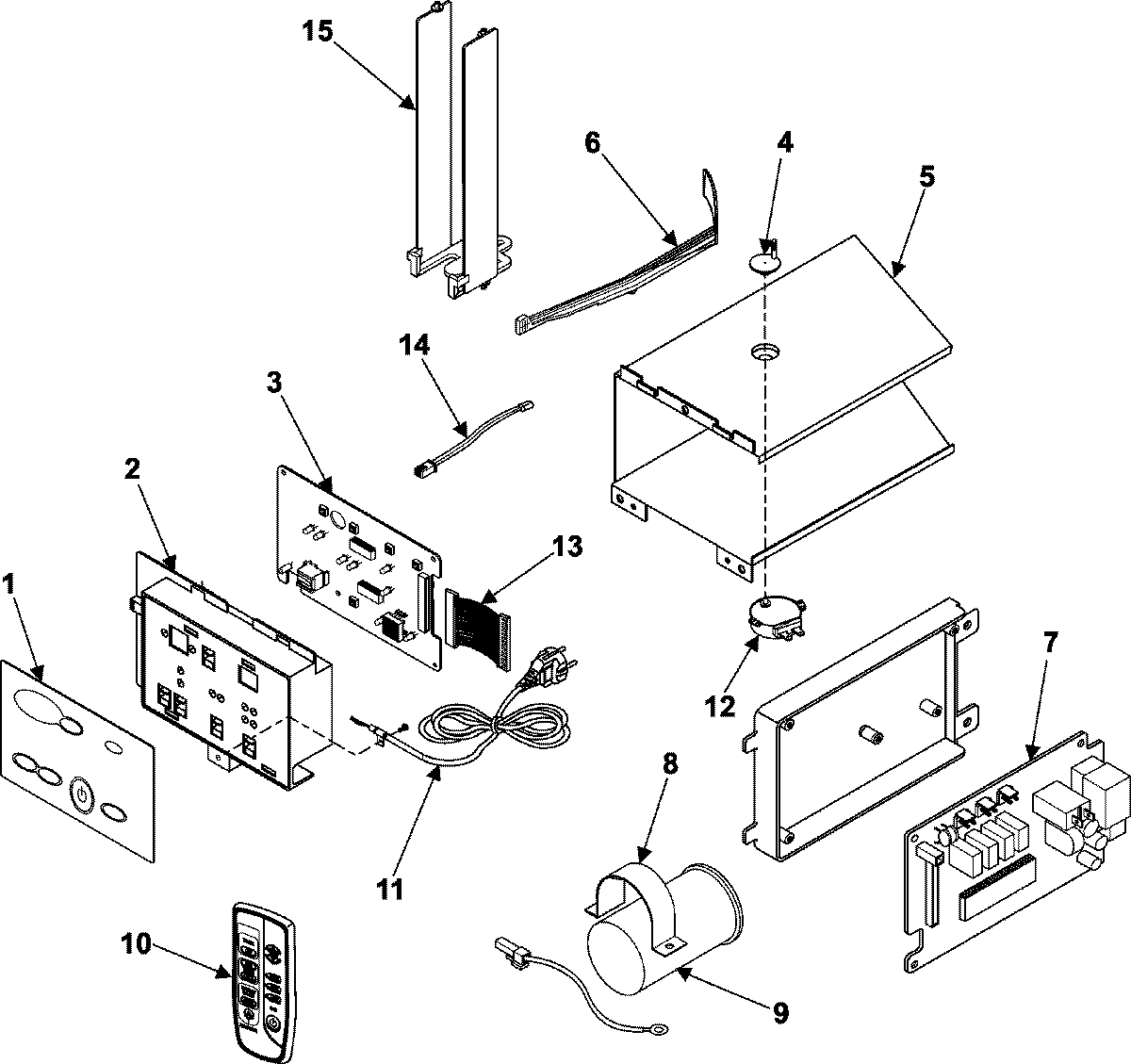

AW1290 02 – CONTROL ASSEMBLY

Products

Position	Product
1	MAY DB64-00189A
2	MAY DB64-00108A
3	MAY PD-SM12D-P1
5	SEE NOTE GROUND WIRE, GREEN
6	MAY DB66-70024A
7	MAY PD-SM12A-00
8	MAY DB65-10008B
9	MAY 2501-001191
10	MAY DB93-00284B
11	MAY DB39-00167B
12	MAY DB31-10152A
13	MAY DB39-20358C
14	MAY DB32-10051A
14	MAY DB32-10031A
15	MAY DB66-30170A
