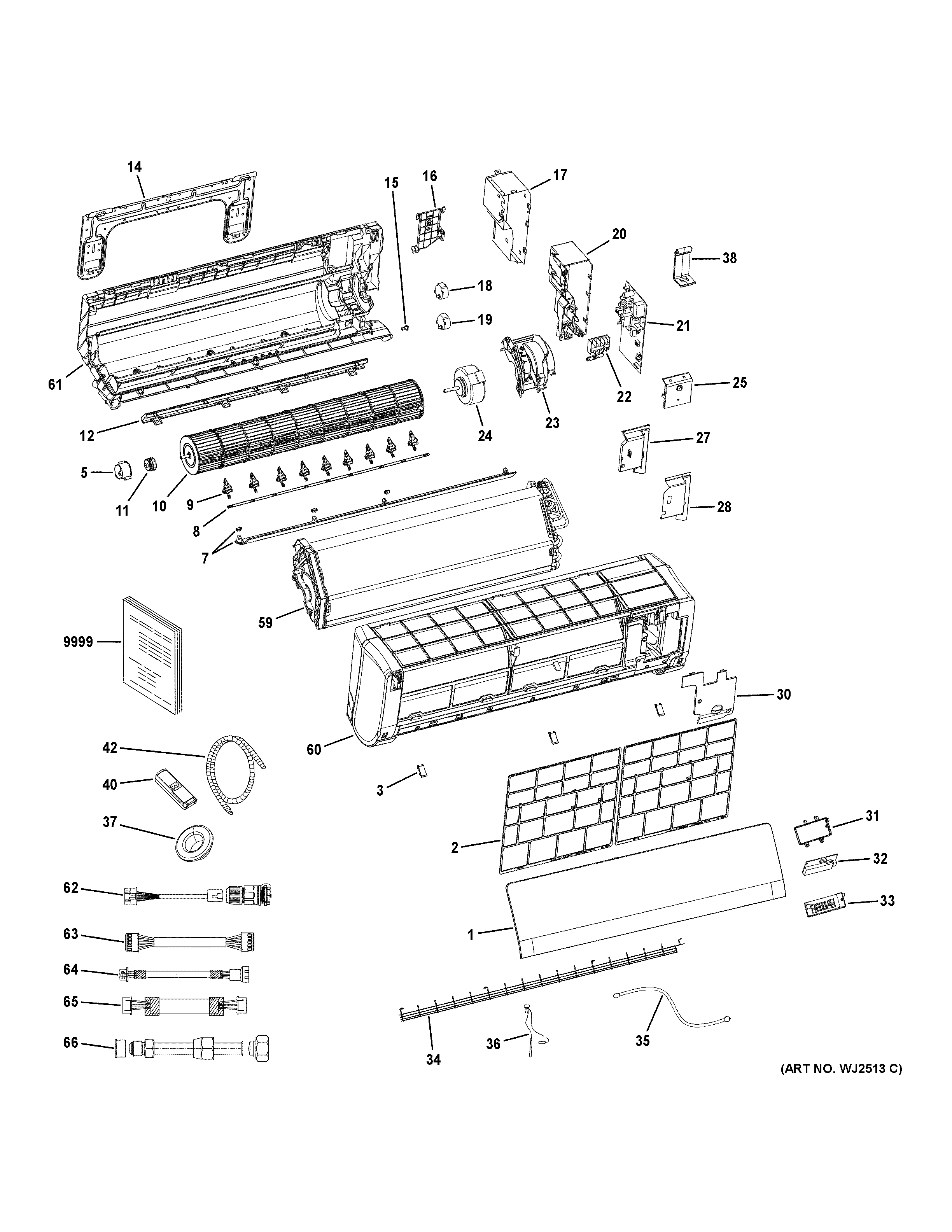

AW12AP2HDB1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X23044 GE Top Cover
2	WJ85X30473 GE Air Filter
3	SCREW COVER
5	CROSS FLOW FAN BEARING COVER
7	WJ71X23034 GE Horizontal Louvre
8	WJ65X23033 GE Connecting Rod
9	WJ71X23045 GE Vertical Louvre
10	WJ73X23027 GE Fan Cross Flow
11	WJ73X23028 GE Fan Cross Flow Bearing
12	WJ76X31360 GE Wire Cover
14	REAR BRACKET
15	WJ01X24235 GE Shaft Jacket
16	WJ76X29674 GE Pipe Channel Cover
17	WJ76X31354 GE Electrical Box Protector
18	WJ94X23041 GE Louver Motor Horizontal
19	WJ94X23040 GE Vertical Louver Motor
20	ELECTRIC BOX
21	WJ26X33178 GE Indoor Power Control Board
22	WJ26X23043 GE Terminal Block
23	WJ76X23036 GE Indoor Motor Cover
24	WJ94X23035 GE Indoor Motor
25	WJ76X31356 GE Electrical Box
27	ELECTRICAL BOX COVER (PLASTIC)
28	WJ76X26713 GE Electrical Box Cover (Metal)
30	COVER
31	WJ76X23029 GE Display Board Assembly
32	WJ71X23031 GE Display Panel
33	DISPLAY BOX COVER
34	WJ71X33033 GE Outlet Guard
35	WJ35X23134 GE Wiring Harness
36	WJ26X23042 GE Temperature Sensor Assembly
37	WJ53X28913 GE Ring Guard
38	DRAIN PIPE BRACKET
40	WJ01X24721 GE Air Conditioner Remote Control
42	DRAIN HOSE
59	EVAPORATOR COIL
60	WJ76X31374 GE Casing Assembly
61	WJ71X24719 GE Washer Evaporator Case Assembly with Drain Pan
62	RJ45
63	WiFi WIRING HARNESS
64	WJ35X27135 GE Wiring Harness
65	WJ35X27136 GE Wiring Harness
66	WJ01X27116 GE 1/2" X 3/8" Adapter
9999	PM OWNERS MANUAL
9999	PM INSTALL INSTRUCTIONS
