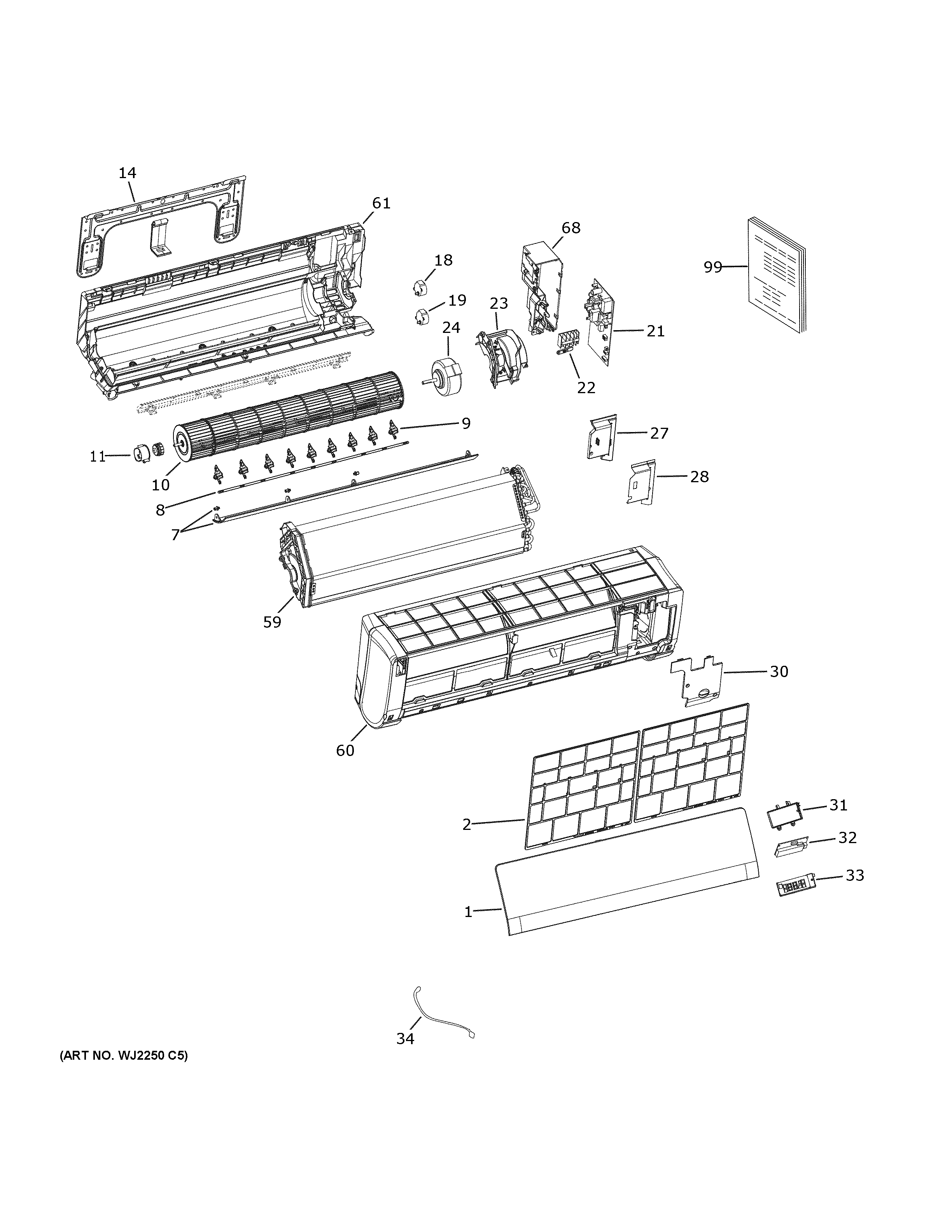

AW12EH2VHA ROOM AIR CONDITIONERadmin2025-04-26T08:46:15+00:00AW12EH2VHA ROOM AIR CONDITIONER ProductsPositionProduct1WJ71X23044 GE Top Cover2WJ85X30473 GE Air Filter7WJ71X23034 GE Horizontal Louvre8WJ65X23033 GE Connecting Rod9WJ71X23045 GE Vertical Louvre10WJ73X23027 GE Fan Cross Flow11WJ73X23028 GE Fan Cross Flow Bearing14REAR BRACKET18WJ94X23041 GE Louver Motor Horizontal19WJ94X23040 GE Vertical Louver Motor21WJ26X25213 GE Indoor Power Control Board22WJ26X23043 GE Terminal Block23WJ76X23036 GE Indoor Motor Cover24WJ94X23035 GE Indoor Motor27ELECTRICAL BOX COVER (PLASTIC)28WJ76X24360 GE Electrical Box Cover (Metal)30COVER31WJ76X23029 GE Display Board Assembly32WJ71X23031 GE Display Panel33WJ71X23030 GE Display Board Cover34WJ26X23042 GE Temperature Sensor Assembly59EVAPORATOR COIL60WJ76X31374 GE Casing Assembly61WJ71X32453 GE Evap Case Assembly W/Drain Pan68ELECTRICAL BOX99PM OWNERS MANUAL
