AW12NE5F1 04 – UNIT PARTS – Aparts

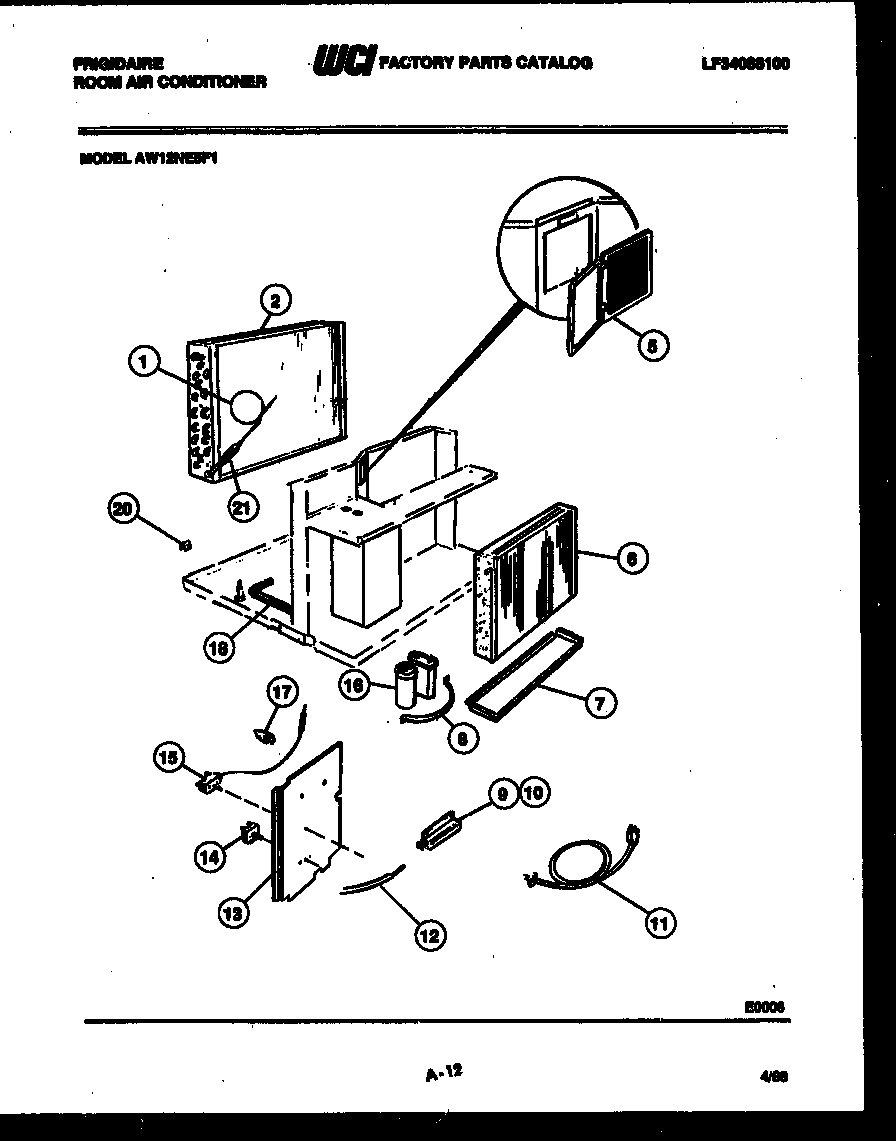

AW12NE5F1 04 – UNIT PARTS

Products

Position	Product
1	TUBE-CAPILLARY (CUT TO 35``)
2	WCI 8017359
5	WCI 8016234
6	WCI 8016142
7	TRAY
8	CLAMP-CAPACITOR
9	BRACKET-ACTUATOR
10	ARM-ACTUATOR
11	WCI 8007861
12	CABLE, VENT DOOR
13	PANEL-CONTROL
14	SWITCH, SELECTOR
15	CONTROL
16	CAPACITOR-DUAL
17	CLIP-CAP. TUBE
18	WCI 8009022
19	WCI 8009027
20	CLIP-CONDENSER
21	WCI 8017350
