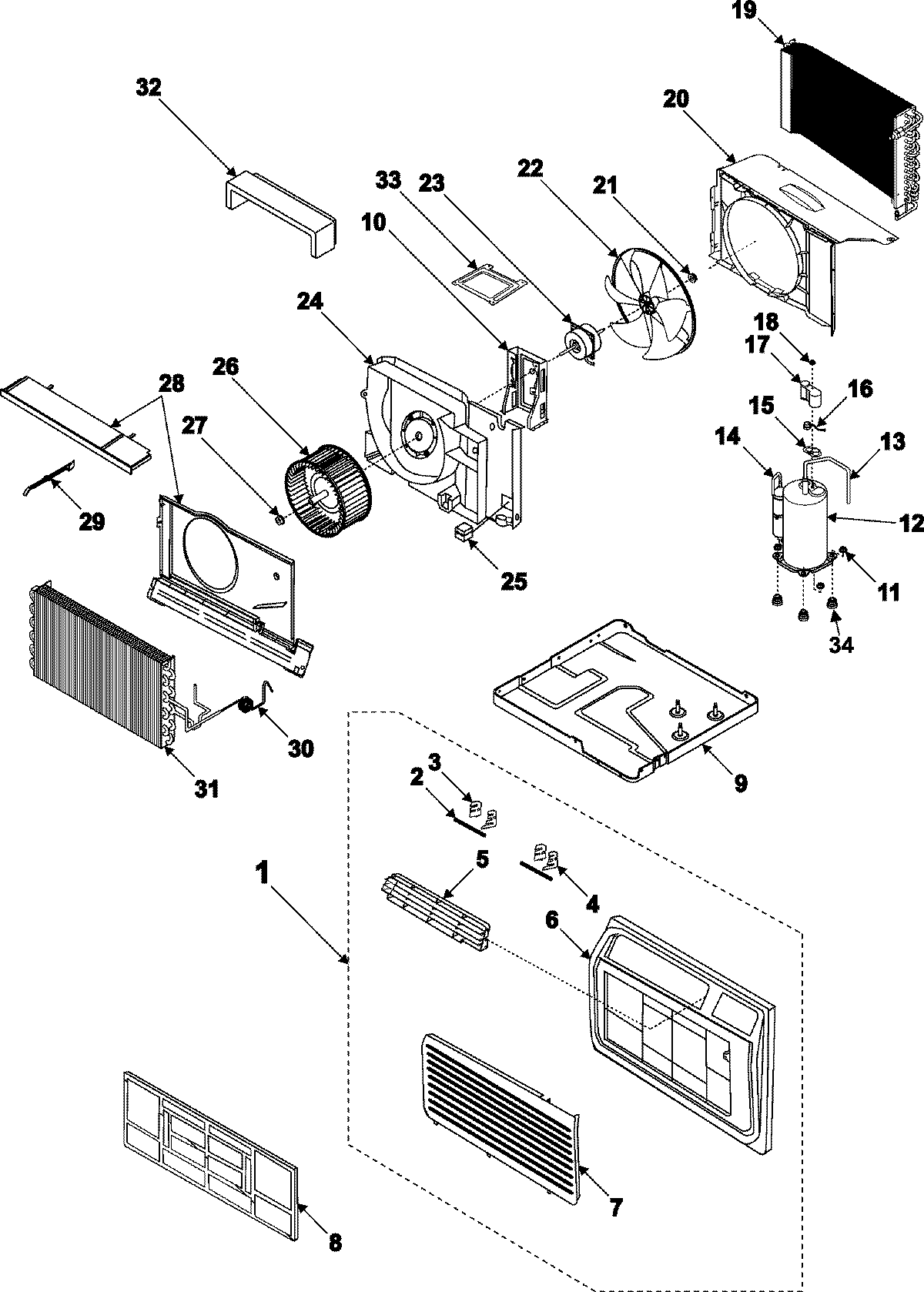

AW1403B 01 – CHASSIS ASSEMBLY – Aparts

AW1403B 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00519F
2	MAY DB66-00552A
3	MAY DB66-00551A
4	MAY DB66-00550A
5	MAY DB61-01524A
6	MAY DB64-00912A
7	MAY DB64-00913A
8	MAY DB63-00807B
9	MAY DB90-01215C
10	MAY DB61-01512B
12	MAY 44B135HX1EL
13	MAY DB62-02469A
14	MAY DB62-02470A
15	MAY DB63-20003A
16	MAY DB47-20001U
17	MAY DB63-10026A
18	SEE NOTE GROUND WIRE, GREEN
19	MAY DB96-02699C
20	MAY DB61-01495A
21	MAY DB60-30028A
22	MAY DB67-00047B
23	MAY DB31-00236A
24	MAY DB97-02027A
25	MAY DB73-00173B
26	MAY DB67-00096A
27	MAY 6021-001056
28	MAY DB90-01288A
29	MAY DB66-00553A
30	MAY DB96-03150A
31	MAY DB96-03039A
32	MAY DB61-01528A
33	MAY DB70-00342A
34	MAY DB73-10001A
