AW1800A 01 – CHASSIS ASSEMBLY – Aparts

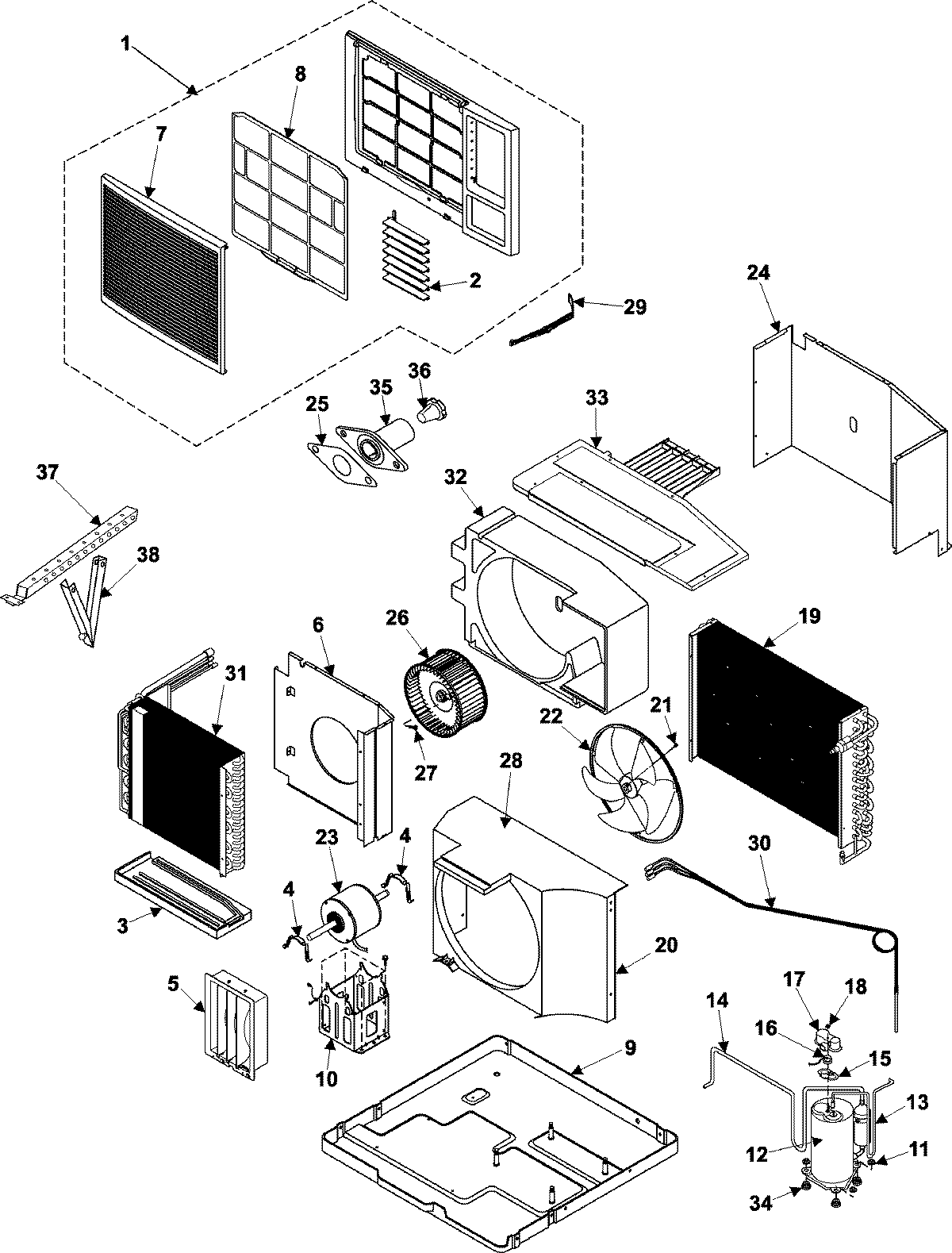

AW1800A 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00067A
2	MAY DB66-00120A
3	MAY DB63-40019A
4	MAY DB65-10089A
5	MAY DB61-60125A
6	MAY DB96-00026A
7	MAY DB64-00178A
7	MAY DB92-00066C
8	MAY DB63-00100A
9	MAY DB90-00304B
10	MAY DB61-00440A
11	MAY DB60-30028A
13	MAY DB62-00457B
14	MAY DB62-00518A
15	MAY DB63-20002A
16	MAY DB35-00004W
17	MAY DB63-10026A
19	MAY DB96-01048A
20	MAY DB61-00448A
21	MAY DB60-30018A
22	MAY DB67-00047A
23	MAY DB31-00106A
24	MAY DB70-10679A
25	MAY DB73-20096A
26	MAY DB67-00096A
27	MAY 6021-001056
28	MAY DB90-00026A
28	MAY DB61-00422A
29	MAY DB66-70024A
30	MAY DB62-00519A
31	MAY DB96-01038A
31	MAY DB96-00267A
32	MAY DB61-10182A
33	MAY DB90-40174A
33	MAY DB63-10487A
34	MAY DB73-00067A
35	MAY DB94-10009A
36	MAY DB63-10365A
38	SEE NOTE GROUND WIRE, GREEN
