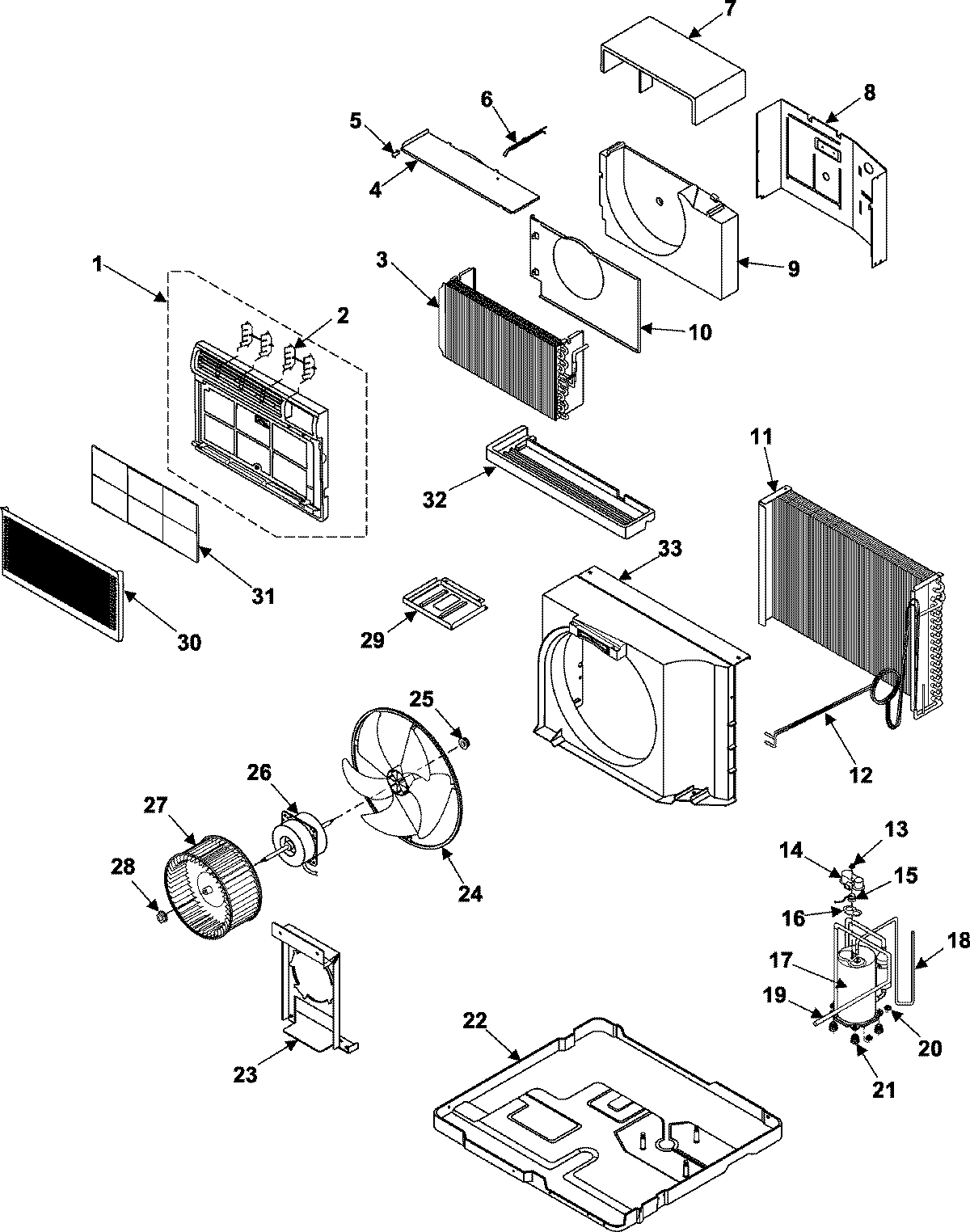

AW1801B 01 – CHASSIS ASSEMBLY

AW1801B 01 – CHASSIS ASSEMBLY

Written by

in

AW1801B 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00396A
2	MAY DB66-00398A
3	MAY DB96-01046A
5	MAY DB61-00443A
6	MAY DB66-00400A
7	MAY DB94-00097A
7	MAY DB61-00439A
8	MAY DB71-00027A
9	MAY DB61-00445A
10	MAY DB61-00438A
11	MAY DB96-01037C
12	MAY DB96-01970A
13	MAY DB60-30001A
14	MAY DB63-10026A
15	MAY DB35-00011C
16	MAY DB63-20003A
17	MAY 48D180IU1EQ
18	MAY DB62-00457B
19	MAY DB62-00456C
20	MAY DB60-30028A
21	MAY DB73-10001A
22	MAY DB90-00304B
23	MAY DB61-00440A
24	MAY DB67-00047B
26	MAY DB31-00106A
27	MAY DB67-00096A
29	MAY DB71-00028A
30	SEE NOTE GROUND WIRE, GREEN
31	MAY DB63-00627A
32	MAY DB63-00185A
33	MAY DB61-00448A
