AW189CB 02 – CONTROL ASSEMBLY – Aparts

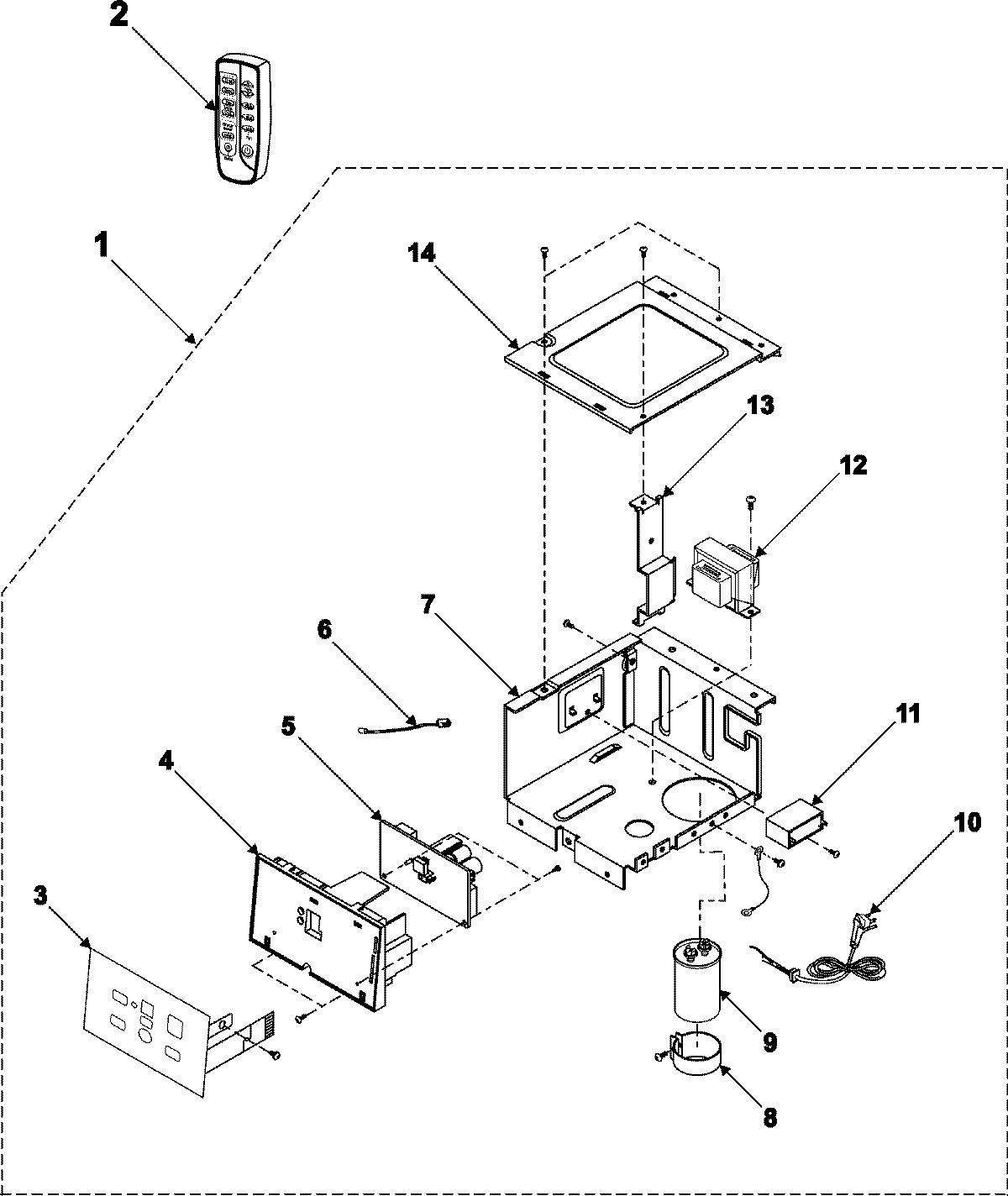

AW189CB 02 – CONTROL ASSEMBLY

Products

Position	Product
1	MAY DB93-02510K
1	MAY DB61-01525A
2	MAY DB93-03018V
3	MAY DB34-00033A
4	MAY DB64-00911A
5	MAY DB93-03564B
6	DB32-10051E Samsung Thermistor
7	MAY DB61-01527A
8	MAY DB65-10008B
9	MAY 2501-001237
9	MAY DB71-50015D
10	MAY DB93-02939A
11	MAY 2301-001449
12	MAY DB26-00006K
13	MAY DB61-01526A
14	SEE NOTE GROUND WIRE, GREEN
