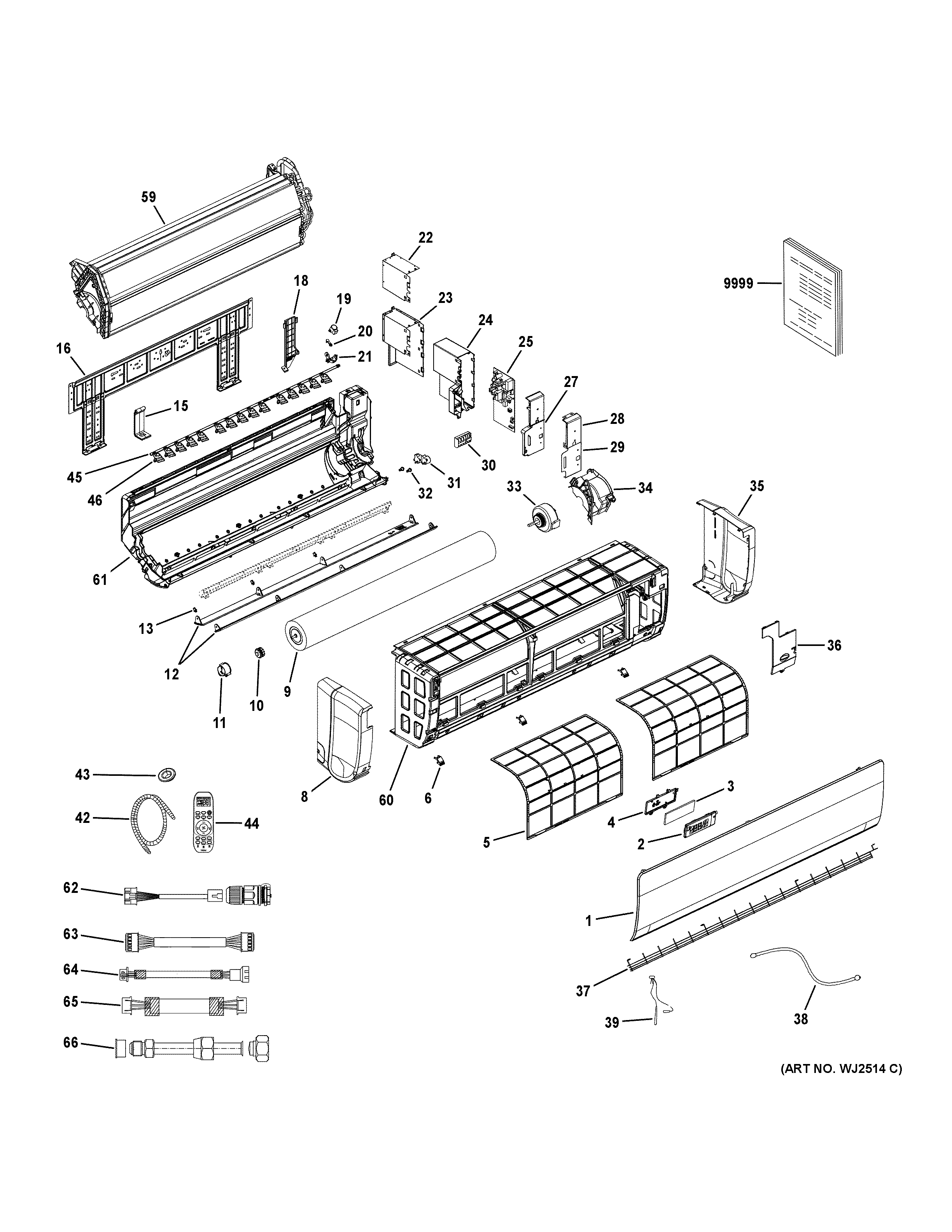

AW18AP2HDB1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X23062 GE Top Cover
2	DISPLAY BOX COVER
3	WJ71X23051 GE Panel Display
4	WJ76X23029 GE Display Board Assembly
5	WJ85X23046 GE Air Filter
6	SCREW COVER
8	LEFT COVER
9	WJ73X23049 GE Fan Cross Flow
10	WJ73X23028 GE Fan Cross Flow Bearing
11	CROSS FLOW FAN BEARING COVER
12	WJ71X22765 GE Air Louvre
13	WJ65X24232 GE Horizontal Louver Bushings
15	WJ65X23248 GE Bracket Drain Pipe
16	WJ65X23056 GE Mounting Bracket
18	PIPE CHANEL COVER
19	SWING MOTOR
20	WJ76X23057 GE Power Cable Cover
21	WJ65X23059 GE Stepper Motor Bracket
22	WJ76X29662 GE Board Protector
23	WJ76X31353 GE Electrical Box Protector
24	WJ76X31361 GE Electrical Box
25	WJ26X33178 GE Indoor Power Control Board
27	WJ76X24724 GE Electrical Box Cover
28	WJ76X29514 GE Cover Protect Board
29	WJ76X26714 GE Electrical Box Cover
30	WJ26X23043 GE Terminal Block
31	WJ94X23058 GE Stepper Motor Horizontal
32	WJ01X24220 GE Axletree Cover Assembly
33	WJ94X23054 GE Indoor Motor Assembly
34	INDOOR MOTOR COVER
35	RIGHT COVER
36	COVER BOARD
37	PROTECT NET
38	WJ35X23134 GE Wiring Harness
39	WJ26X23042 GE Temperature Sensor Assembly
42	DRAIN HOSE
43	WJ53X28913 GE Ring Guard
44	WJ01X24721 GE Air Conditioner Remote Control
45	WJ65X33040 GE Appliance Connecting Rod
46	WJ71X33039 GE Louver
59	WJ87X31369 GE Coil Evaporator
60	WJ76X31358 GE Casing Assembly
61	WJ71X33047 GE Indoor Assembly Chassis
62	RJ45
63	WiFi WIRING HARNESS
64	WJ35X27135 GE Wiring Harness
65	WJ35X27136 GE Wiring Harness
66	WJ01X27116 GE 1/2" X 3/8" Adapter
9999	PM OWNERS MANUAL
9999	PM INSTALL INSTRUCTIONS
