AW18EH2VHD1 ROOM AIR CONDITIONER

Products

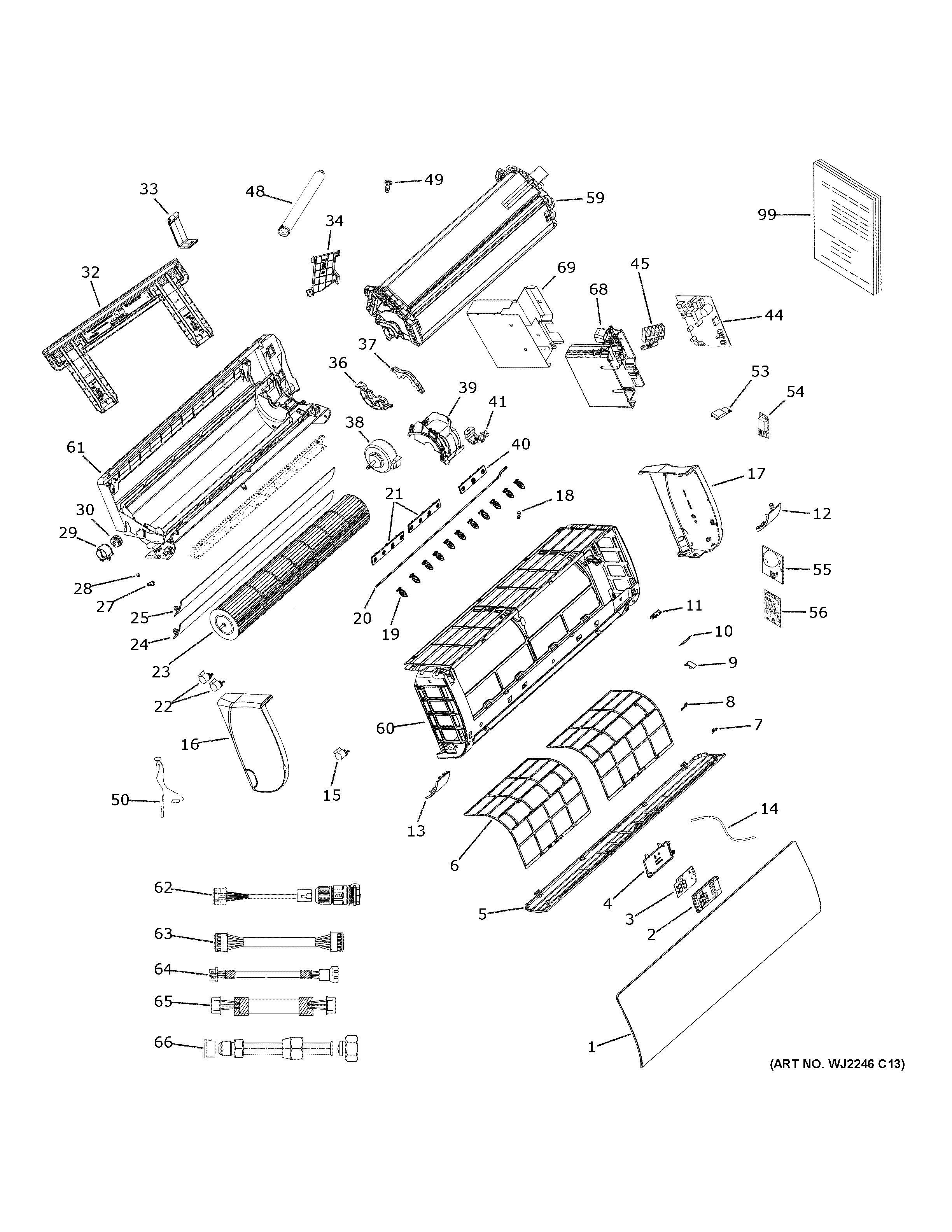

PositionProduct
1WJ71X26458 GE Front Cover
2WJ76X26408 GE Display Board Assembly
3WJ26X26460 GE Display Panel
4WJ76X26409 GE Display Board Cover
5BOTTOM ACESS PANEL
6WJ85X26433 GE Air Filter
7WJ01X26403 GE Panel Latch
8WJ01X26404 GE Pin
9WJ76X26422 GE Cover Screw
10POWER SWITCH
11WJ76X26407 GE Power Switch Box
12WJ76X26425 GE Right Cover
13WJ76X26424 GE Left Cover
14WJ35X33413 GE PCB Display Wire Harness
15WJ94X26438 GE Dishwasher Horizontal Louver Motor
16WJ71X26428 GE Left End Panel
17WJ71X26429 GE Right End Panel
18WJ01X26402 GE Connecting Rod Link
19WJ71X26420 GE Vertical Louver
20WJ01X26421 GE Connecting Rod
21WJ65X26418 GE Louver Socket 4 Hole
22WJ94X26439 GE Vertical Motor Louver
23WJ73X23255 GE Cross Flow Fan
24WJ71X26427 GE Horizontal Louver
25WJ71X26426 GE Horizontal Louver Assembly
27WJ01X26410 GE Louver Motor Adapter
28WJ01X24240 GE Louver Bushing
29WJ73X23028 GE Fan Cross Flow Bearing
30CROSS FLOW FAN BEARING COVER
32MOUNTING BRACKET
33WJ65X23248 GE Bracket Drain Pipe
34WJ76X26395 GE Pipe Channel Cover
36WJ65X26399 GE Motor Bracket – Bottom
37WJ65X26398 GE Top Motor Bracket
38WJ94X23054 GE Indoor Motor Assembly
39WJ76X26430 GE Indoor Motor Cover
40WJ65X26431 GE Louver Socket 3 Hole
41WJ65X26406 GE Vertical Louver Motor Bracket
44WJ26X26461 GE Indoor Power Control Board
45WJ26X23043 GE Terminal Block
48WJ53X23256 GE Drain Pipe
49WJ01X26401 GE Drain Plug
50WJ26X23042 GE Temperature Sensor Assembly
53WIFI MODULE COVER
54WiFi-module
55OCUPANCY SENSOR
56WJ26X26464 GE Wired Control Adapter Board
59EVAPORATOR COIL
60WJ71X31363 GE Casing Assembly
61WJ71X31364 GE Vertical Louvre Assembly
62RJ45
63WiFi WIRING HARNESS
64WJ35X27135 GE Wiring Harness
65WJ35X27136 GE Wiring Harness
66WJ01X27116 GE 1/2" X 3/8" Adapter
68WJ76X31366 GE Electrical Box
69WJ76X31355 GE Electrical Box Protector
99GEN 315000464
99PM INSTALL INSTRUCTIONS
99GEN 495000489
