AW18ES2VHA ROOM AIR CONDITIONER

Products

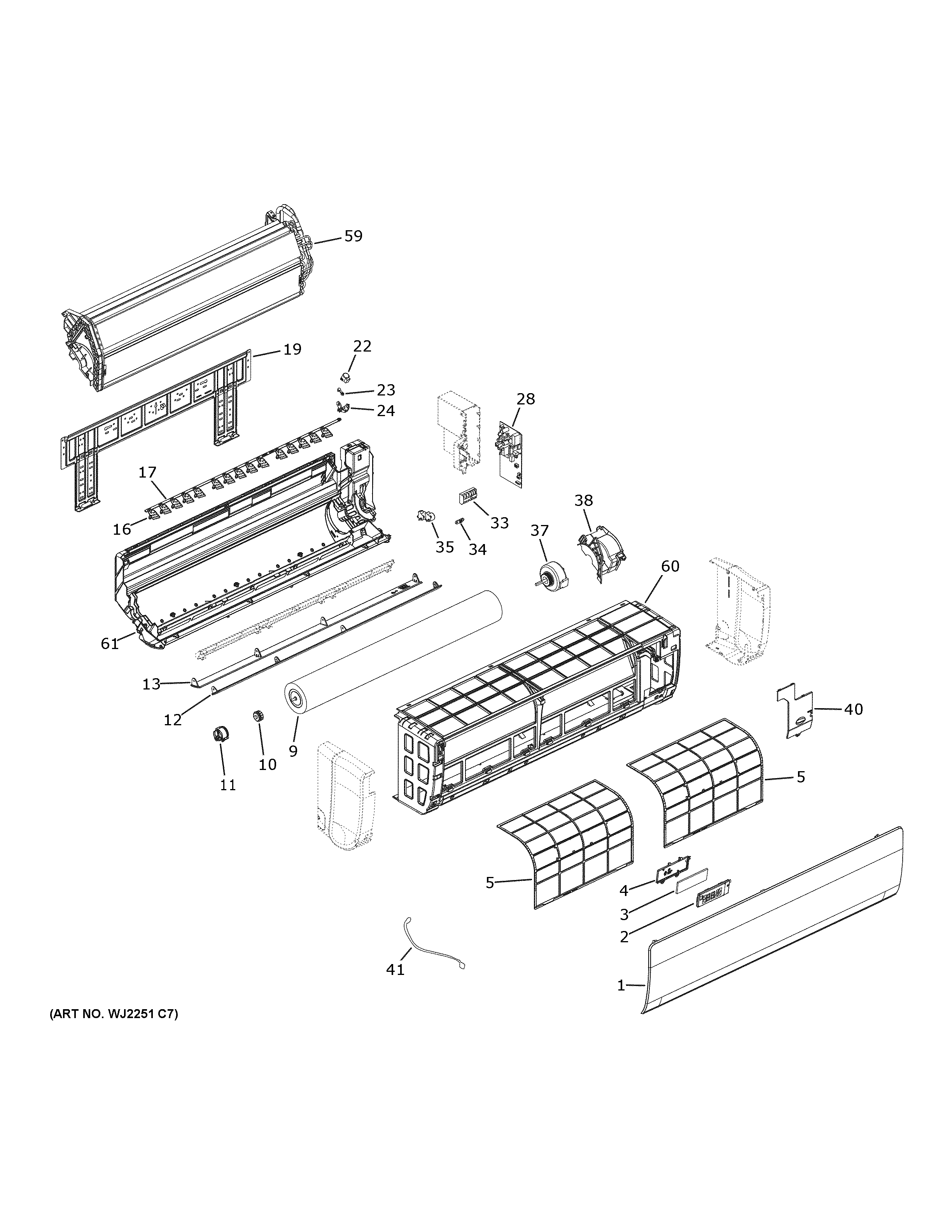

Position	Product
1	WJ71X23062 GE Top Cover
2	WJ71X23030 GE Display Board Cover
3	WJ71X23051 GE Panel Display
4	WJ76X23029 GE Display Board Assembly
5	WJ85X23046 GE Air Filter
9	WJ73X23049 GE Fan Cross Flow
10	WJ73X23028 GE Fan Cross Flow Bearing
11	CROSS FLOW FAN BEARING COVER
12	WJ71X23063 GE Top Horizontal Louver
13	WJ71X23053 GE Horizontal Louver Bottom
16	WJ71X23060 GE Louver Vertical
17	WJ71X23052 GE Connecting Rod
19	WJ65X23056 GE Mounting Bracket
22	SWING MOTOR
23	LINK
24	WJ65X23059 GE Stepper Motor Bracket
28	INDOOR POWER CONTROL BOARD
33	WJ26X23043 GE Terminal Block
34	WJ76X23057 GE Power Cable Cover
35	WJ94X23058 GE Stepper Motor Horizontal
37	WJ94X23054 GE Indoor Motor Assembly
38	INDOOR MOTOR COVER
40	COVER BOARD
41	WJ26X23042 GE Temperature Sensor Assembly
59	WJ87X32193 GE Evaporator Coil
60	WJ76X31375 GE Casing Assembly
61	WJ76X31357 GE Vertical Louvre Assembly
