AW18ES2VHB ROOM AIR CONDITIONER

Products

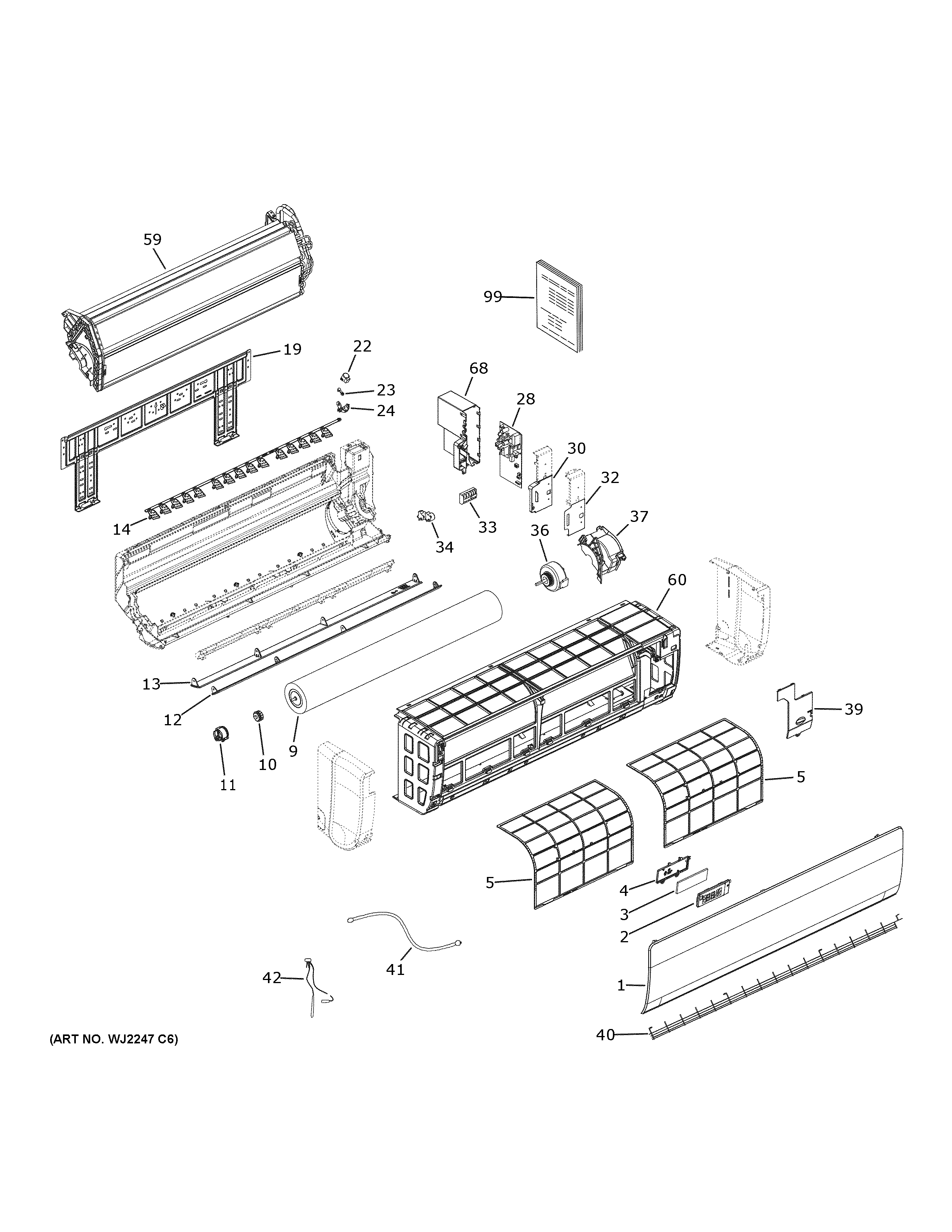

Position	Product
1	WJ71X23062 GE Top Cover
2	WJ71X23030 GE Display Board Cover
3	WJ71X23051 GE Panel Display
4	WJ76X23029 GE Display Board Assembly
5	WJ85X23046 GE Air Filter
9	WJ73X23049 GE Fan Cross Flow
10	WJ73X23028 GE Fan Cross Flow Bearing
11	CROSS FLOW FAN BEARING COVER
12	WJ71X22765 GE Air Louvre
13	WJ65X24232 GE Horizontal Louver Bushings
14	VERTICAL LOUVRE ASSEMBLY
19	WJ65X23056 GE Mounting Bracket
22	SWING MOTOR
23	WJ76X23057 GE Power Cable Cover
24	WJ65X23059 GE Stepper Motor Bracket
28	WJ26X23142 GE Indoor Control Board Power
30	WJ76X24724 GE Electrical Box Cover
32	ELECTRICAL BOX COVER (METAL)
33	WJ26X23043 GE Terminal Block
34	WJ94X23058 GE Stepper Motor Horizontal
36	WJ94X23054 GE Indoor Motor Assembly
37	INDOOR MOTOR COVER
39	COVER
40	GUARD
41	WJ35X23134 GE Wiring Harness
42	WJ26X23042 GE Temperature Sensor Assembly
59	WJ87X31369 GE Coil Evaporator
60	WJ76X31358 GE Casing Assembly
68	WJ76X31361 GE Electrical Box
99	PM OTHER
99	PM INSTALL INSTRUCTIONS
99	PM OTHER
99	PM OWNERS MANUAL
