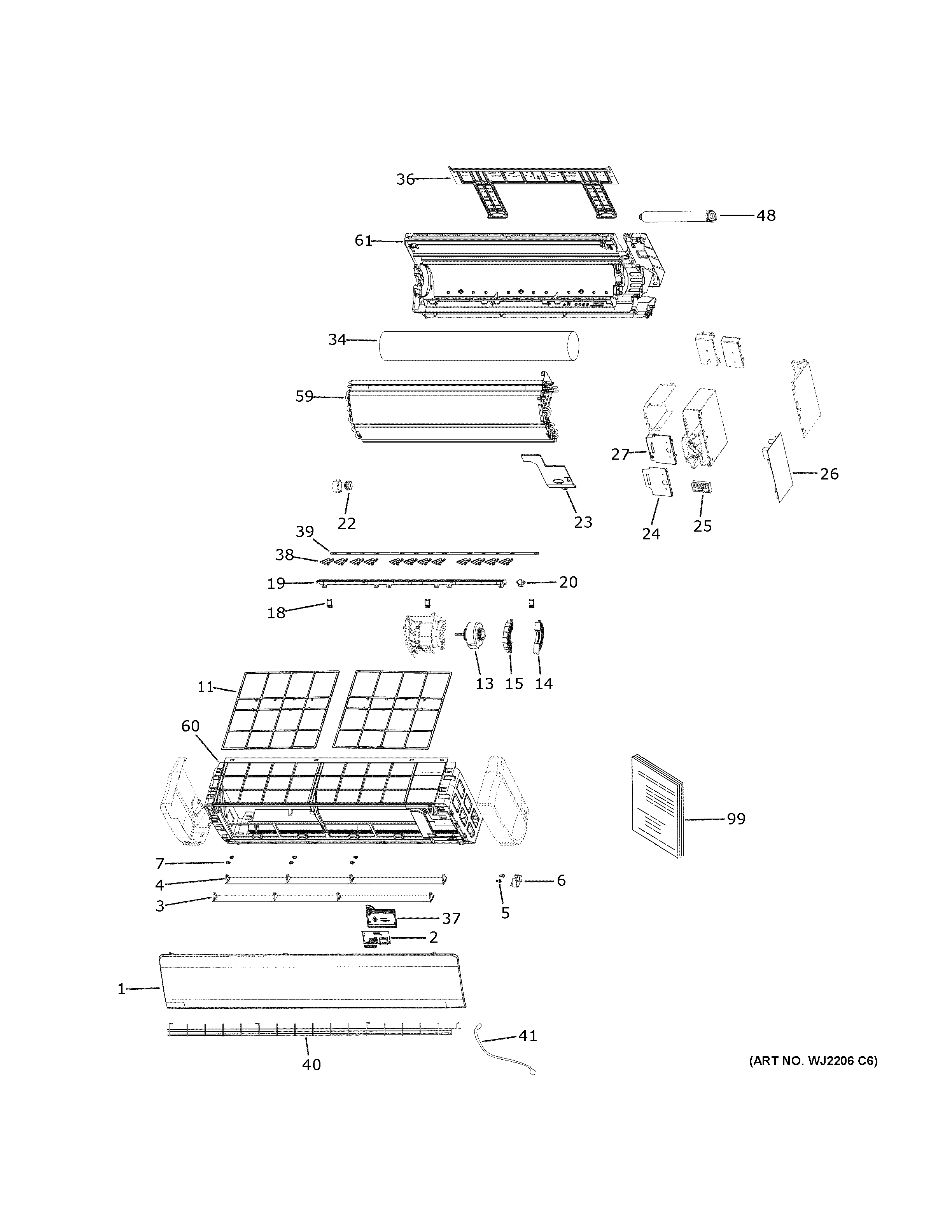

AW18LC2VHB ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X23775 GE Top Panel
2	WJ76X23029 GE Display Board Assembly
3	HORIZONTAL LOUVER TOP
4	HORIZONTAL LOUVER BOTTOM
5	WJ01X24220 GE Axletree Cover Assembly
6	WJ94X23058 GE Stepper Motor Horizontal
7	WJ65X24232 GE Horizontal Louver Bushings
11	WJ85X23768 GE Air Filter
13	WJ94X23249 GE Indoor Fan Motor
14	WJ65X24234 GE Bracket Lower Motor
15	WJ65X24229 GE Upper Bracket Motor
18	WJ01X24233 GE Bolt Cover Assembly
19	WJ01X24230 GE Snail Foam
20	WJ94X23040 GE Vertical Louver Motor
22	WJ73X23028 GE Fan Cross Flow Bearing
23	COVER
24	ELECTRICAL BOX COVER (METAL)
25	WJ26X23043 GE Terminal Block
26	INDOOR POWER CONTROL BOARD
27	WJ76X24362 GE Electrical Box Cover
34	CROSS FLOW FAN
36	MOUNTING BRACKET
37	WJ71X23051 GE Panel Display
38	WJ71X23060 GE Louver Vertical
39	WJ65X24372 GE Connecting Rod
40	GUARD
41	WJ26X23042 GE Temperature Sensor Assembly
48	WJ53X23256 GE Drain Pipe
59	EVAPORATOR COIL
60	WJ76X31815 GE Casing Assembly
61	WJ71X31833 GE Vertical Louvre Assembly
99	PM OTHER
99	PM OTHER
99	PM OTHER
