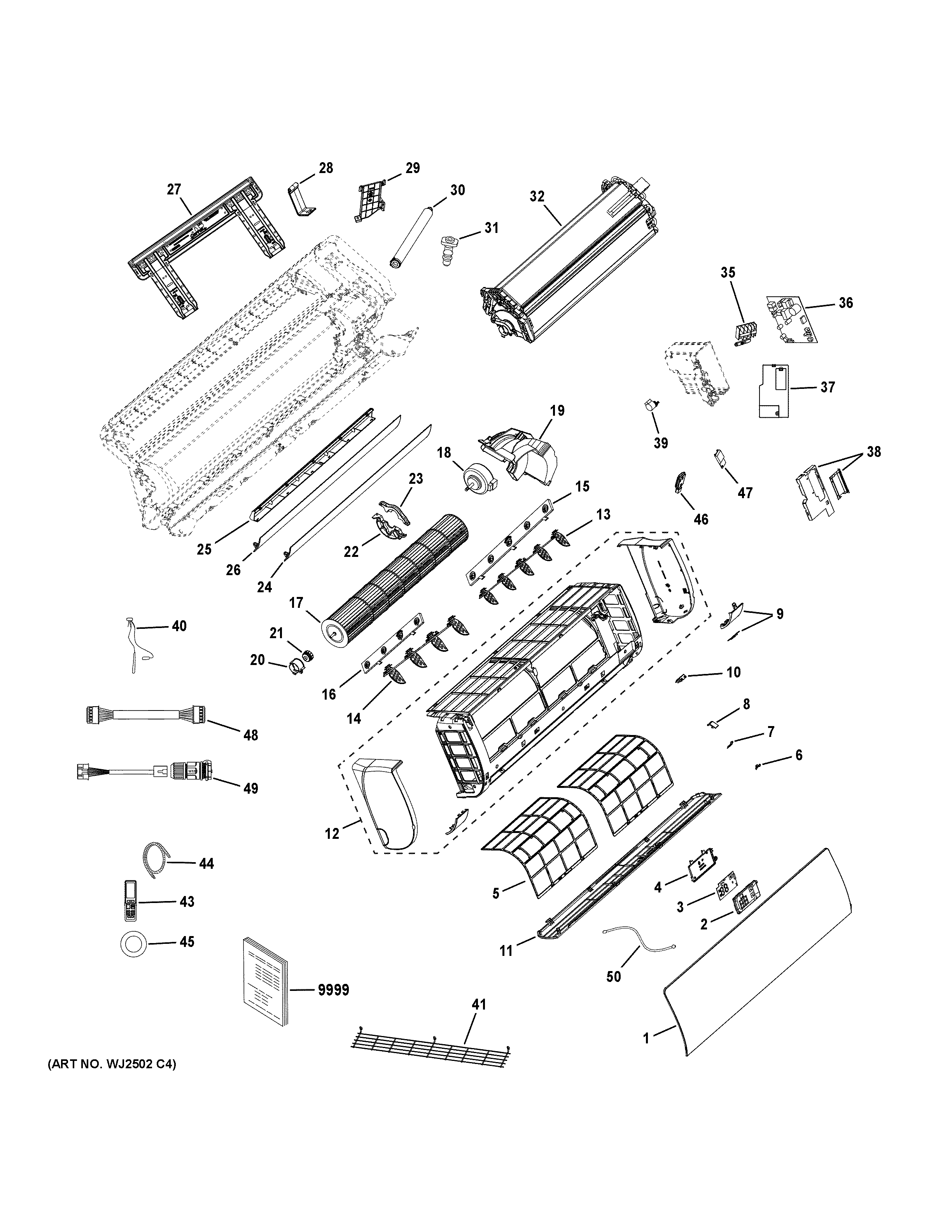

AW18TE2HDA1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X29560 GE Access Panel
2	WJ76X26408 GE Display Board Assembly
3	WJ26X26460 GE Display Panel
4	WJ76X27413 GE Display Box Cover
5	WJ85X26432 GE Air Filter
6	WJ01X26403 GE Panel Latch
7	WJ01X26404 GE Pin
8	WJ76X26411 GE Cover Screw
9	RIGHT END PANEL
10	WJ76X26407 GE Power Switch Box
11	BOTTOM ACESS PANEL
12	CASING ASSEMBLY
13	VERTICAL LOUVRE
14	WJ71X29743 GE Vertical Louvre
15	WJ71X29740 GE Louver Socket 5 Hole
16	WJ71X29739 GE 4-Hole Louver Socket
17	CROSS FLOW FAN
18	WJ94X23249 GE Indoor Fan Motor
19	WJ76X26494 GE Indoor Motor Cover
20	CROSS FLOW FAN BEARING COVER
21	WJ73X23028 GE Fan Cross Flow Bearing
22	WJ65X26400 GE Motor Bracket
23	WJ65X25953 GE Motor Bracket
24	HORIZONTAL LOUVER
25	WJ76X29800 GE Wire Cover Washer
26	WJ71X26415 GE Louver Horizontal
27	MOUNTING BRACKET
28	WJ65X29559 GE Drain Pipe Bracket
29	WJ76X29799 GE Channel Cover Pipe
30	WJ53X23256 GE Drain Pipe
31	WJ01X26401 GE Drain Plug
32	WJ87X29748 GE Evaporator Assembly
35	WJ26X23043 GE Terminal Block
36	WJ26X29034 GE Indoor PCB
37	WJ76X28918 GE Cover Board
38	WJ76X29557 GE Metal Cover
39	WJ94X26439 GE Vertical Motor Louver
40	WJ26X23042 GE Temperature Sensor Assembly
41	WJ71X29796 GE Outlet Guard
43	REMOTE
44	WJ53X29553 GE Drain Hose
45	WJ53X28913 GE Ring Guard
46	WIFI module
47	WiFi WIRING HARNESS
48	RJ45
49	WIFI MODULE COVER
50	WJ35X33413 GE PCB Display Wire Harness
9999	PM OWNERS MANUAL
