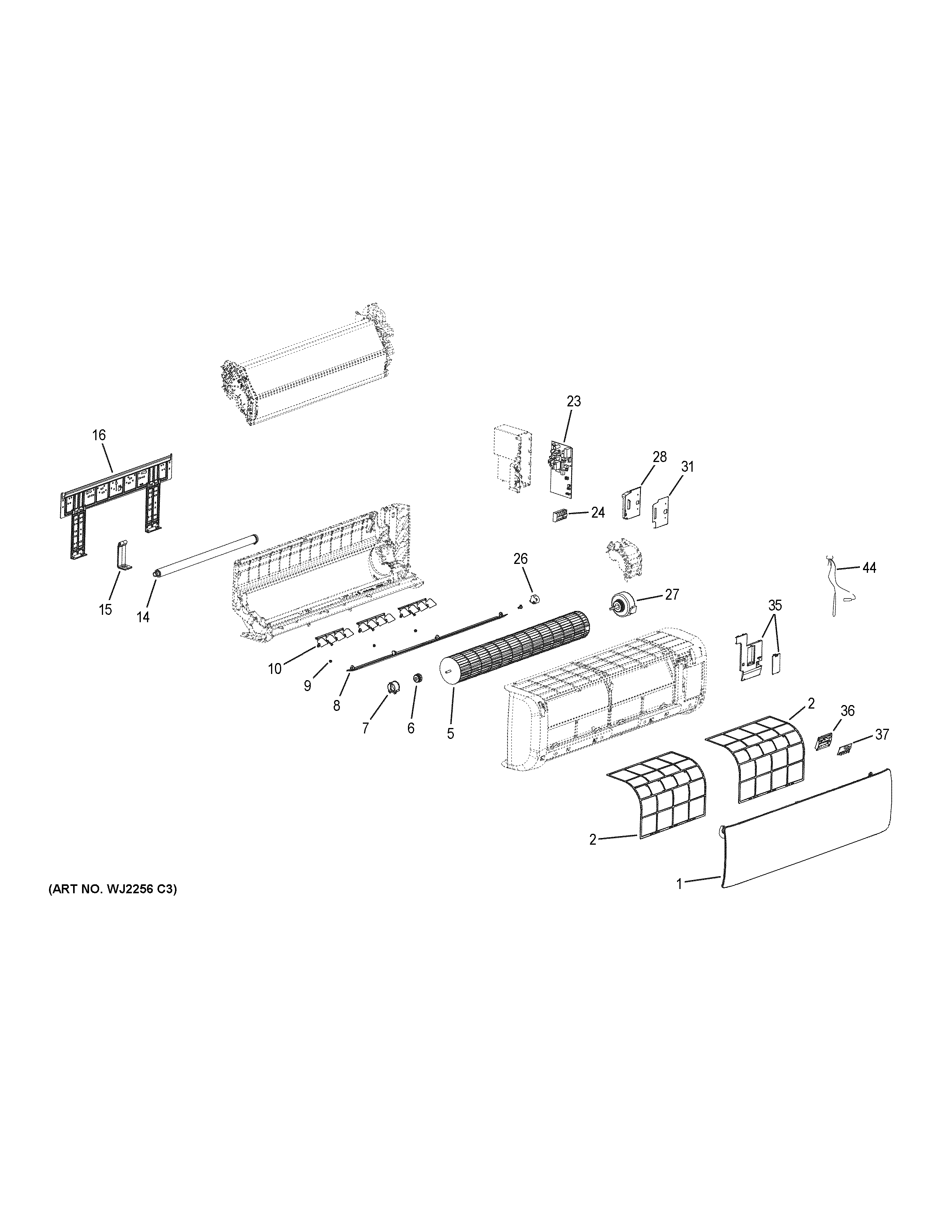

AW18TE2VHA ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X23252 GE Top Panel
2	WJ85X23244 GE Air Filter
5	WJ73X23246 GE Cross Flow Fan
6	WJ73X23028 GE Fan Cross Flow Bearing
7	CROSS FLOW FAN BEARING COVER
8	WJ71X24380 GE Horizontal Louver
9	WJ01X24240 GE Louver Bushing
10	VERTICAL LOUVER
14	WJ53X23247 GE Drain Pipe
15	WJ65X23248 GE Bracket Drain Pipe
16	MOUNTING BRACKET
23	WJ26X23250 GE Indoor Power Control Board
24	WJ26X23043 GE Terminal Block
26	WJ94X23241 GE Louver Motor Horizontal
27	WJ94X23249 GE Indoor Fan Motor
28	WJ76X24362 GE Electrical Box Cover
31	ELECTRICAL BOX COVER (METAL)
35	WJ76X23245 GE Cover Board
36	WJ76X23235 GE Display Board Assembly
37	WJ26X23236 GE Display Panel
44	WJ26X23042 GE Temperature Sensor Assembly
