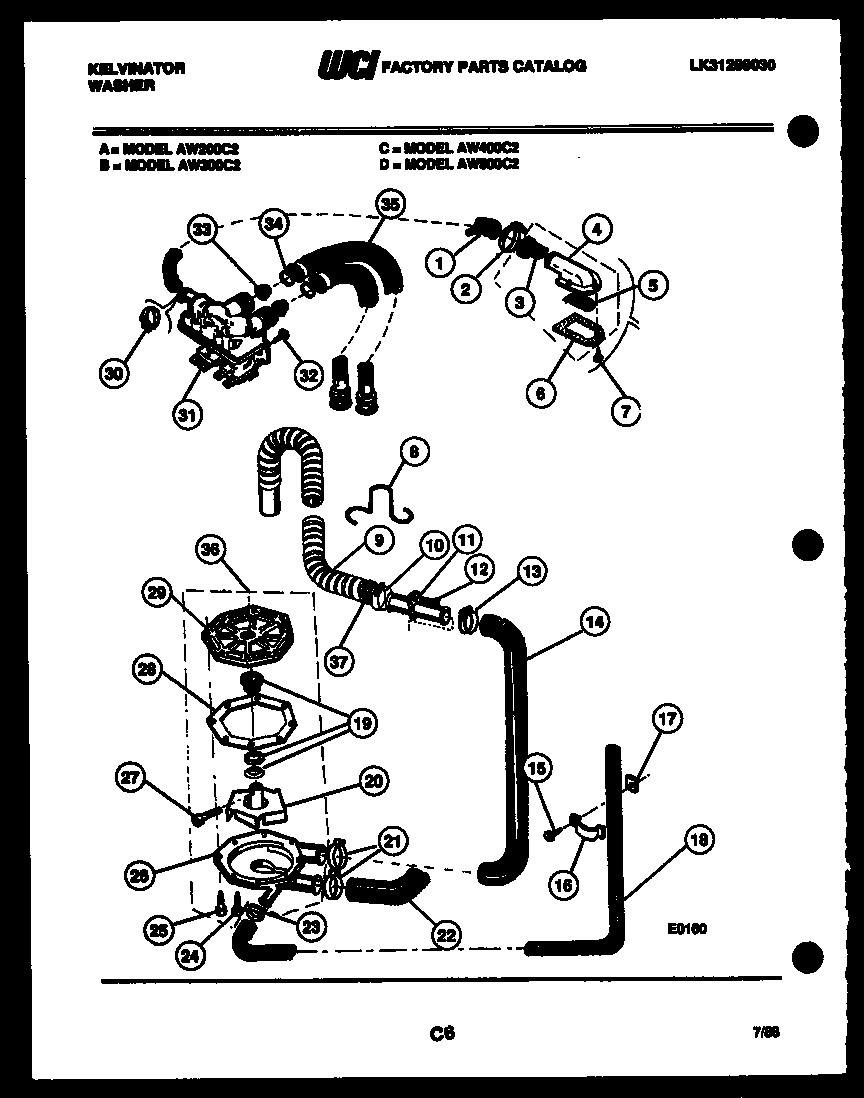

AW200C2D 04 – DRAIN, RECIRCULATE PARTS

Products

Position	Product
*60329	WCI F139821-100
*60329	WCI F139821-000
1	WCI F137862-000
2	WCI F064154-010
3	WCI F137506-000
4	WCI F137017-000
5	WCI F138570-000
6	WCI F138571-000
7	5304455649 Frigidaire Refrigerator Screw
8	WCI F131968-000
9	WCI F137465-000
10	WCI F064154-015
11	WCI F141124-000
12	WCI F131276-000
13	WCI F064154-013
14	HOSE-PUMP TO COUPLING
15	WCI F140073-000
16	WCI F130491-100
17	WCI F078029-000
18	WCI F078921-000
19	WCI F076143-000
20	WCI F079428-000
21	WCI F140887-028
22	WCI F077278-000
23	WCI F140887-020
24	5304401796 Frigidaire Screws
25	SCREW, PUMP MOUNTING (4)
26	HOUSING, PUMP
27	IMPELLER SCREW
28	WCI F077354-000
29	WCI F077352-000
30	WCI F064154-003
31	134190200 Frigidaire Washer Water Valve
32	WCI F141175-000
33	WCI F076138-011
34	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
35	5303912532 Frigidaire Hose Inlet 60"
36	PUMP ASSY COMPLETE
37	WCI F132251-000
