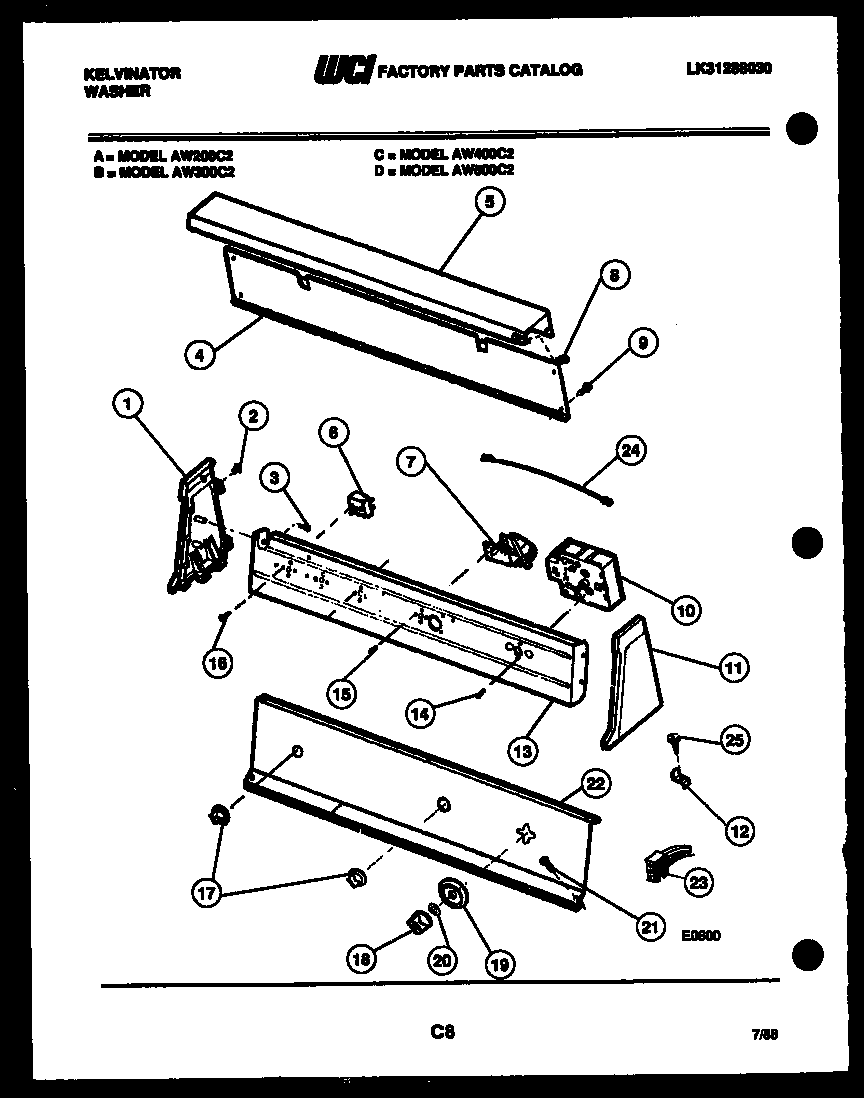

AW200C2D 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI F139719-100
2	WCI F139577-000
3	131205100 Frigidaire Screw
4	WCI F139230-026
5	COVER-TOP
7	SWITCH-PRESSURE
8	WCI F139635-000
9	5303015671 Frigidaire Bracket Termination Screw
10	WCI 3015652
11	WCI F139719-000
12	WCI F079171-000
13	BRACKET, MTG.
14	WCI F060796-000
15A	SEMS SCREW (2)
16	SCREW SWITCH TO BRACKET ( 2 )
17	ROTARY KNOB (2)
18	WCI F141025-000
19	TIMER POINTER
20	WCI F078212-000
21	WCI F140203-000
22B	TIE-HARN TOP PNL (NON-ILLUSTRATED)
22	WCI F141101-100
22A	WCI F136345-000
23	WCI 3018970
24	HARNESS-GROUND
25	131243800 Frigidaire Screw
