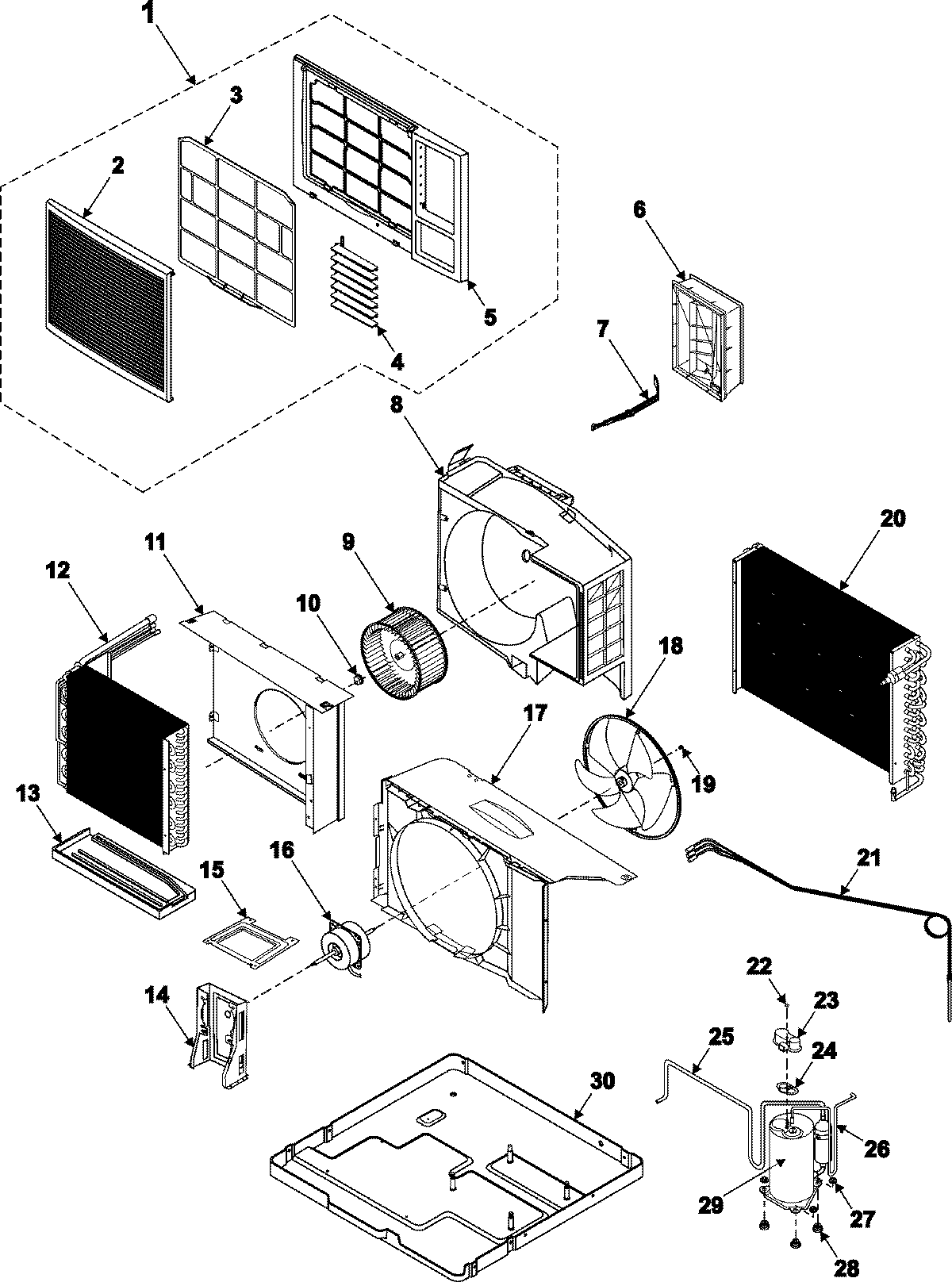

AW2402M 01 – CHASSIS ASSEMBLY

AW2402M 01 – CHASSIS ASSEMBLY

Written by

in

AW2402M 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00506A
2	MAY DB64-00895A
4	MAY DB66-00493A
5	MAY DB64-00894A
6	MAY DB90-01219A
7	MAY DB66-00492A
8	MAY DB97-01959A
9	MAY DB67-00344A
11	MAY DB90-01220A
12	MAY DB96-02859A
13	MAY DB63-00783A
14	MAY DB61-01496A
15	MAY DB70-00342A
16	MAY DB31-00214B
17	MAY DB61-01495A
18	MAY DB67-00047B
19	MAY 6021-001056
20	MAY DB96-02699B
21	MAY DB96-03251A
22	MAY DB60-30001A
25	SEE NOTE GROUND WIRE, GREEN
26	MAY DB62-02136A
27	MAY DB60-30028A
28	MAY DB73-00082A
29	MAY 55A240IU2EN
30	MAY DB90-01215B
