AW2410C 01 – CHASSIS ASSEMBLY – Aparts

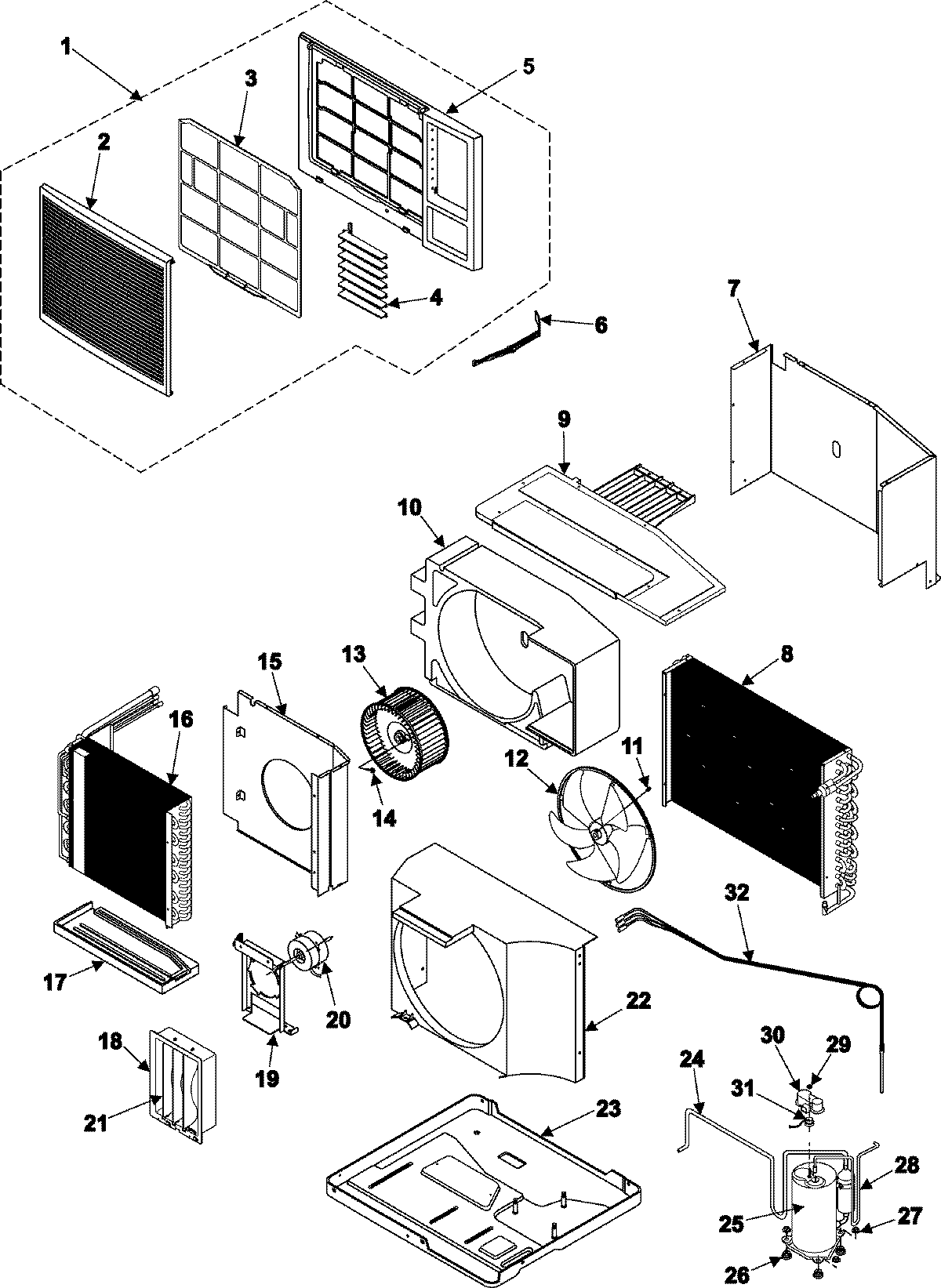

AW2410C 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-70101F
3	MAY DB63-30167C
4	MAY DB66-30205A
5	MAY DB64-70102A
6	MAY DB66-70024A
7	MAY DB70-10679A
8	MAY DB96-01037A
8	MAY DB96-00268A
9	MAY DB63-10487A
9	MAY DB90-40174A
10	MAY DB61-10182A
12	MAY DB67-00047A
13	MAY DB67-00096A
14	MAY 6021-001056
15	MAY DB96-00026B
16	MAY DB96-01047A
17	MAY DB63-40019A
18	MAY DB90-50161E
19	MAY DB61-00440A
20	MAY DB31-00106A
21	MAY DB61-60125A
22	MAY DB61-00448A
23	MAY DB90-00304B
24	MAY DB62-00673A
26	MAY DB73-00082A
27	MAY DB60-30028A
28	MAY DB62-00672A
29	MAY DB60-30018A
30	MAY DB63-10026A
31	SEE NOTE GROUND WIRE, GREEN
32	MAY DB62-00671A
