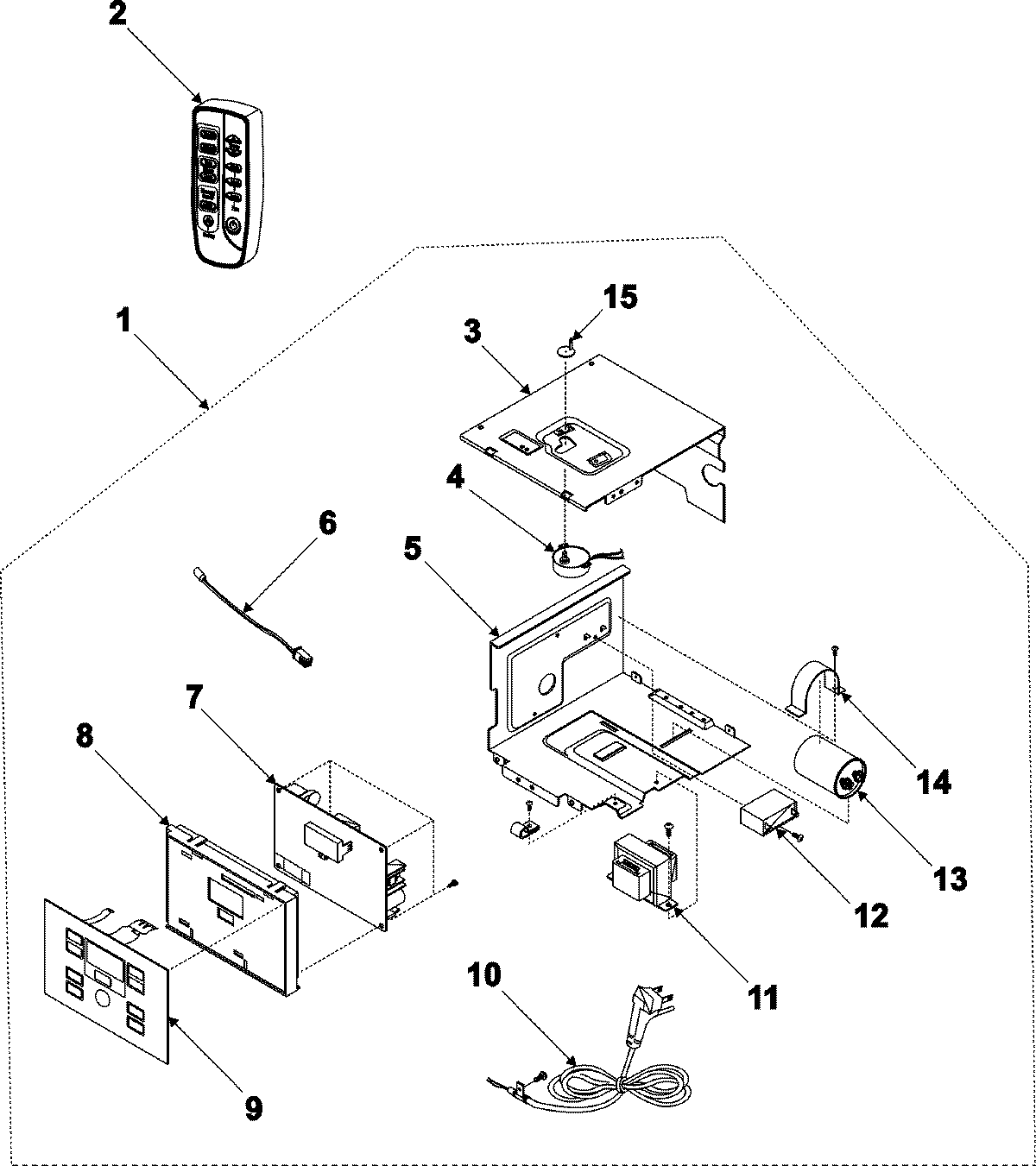

AW2490L 02 – CONTROL ASSEMBLY

AW2490L 02 – CONTROL ASSEMBLY

Written by

in

AW2490L 02 – CONTROL ASSEMBLY

Products

PositionProduct
1MAY DB93-01600D
2MAY DB93-01364Y
3MAY DB61-00419A
4MAY DB95-20065F
5MAY DB61-00417A
6DB32-10051E Samsung Thermistor
7MAY DB93-00874Q
8MAY DB64-00388A
9MAY DB34-00024F
10MAY DB39-00200B
11MAY DB26-00006H
12MAY 2301-001449
13MAY 2501-001238
14MAY DB65-10008B
15MAY DB66-00186A
