AW2492L 01 – CHASSIS ASSEMBLY – Aparts

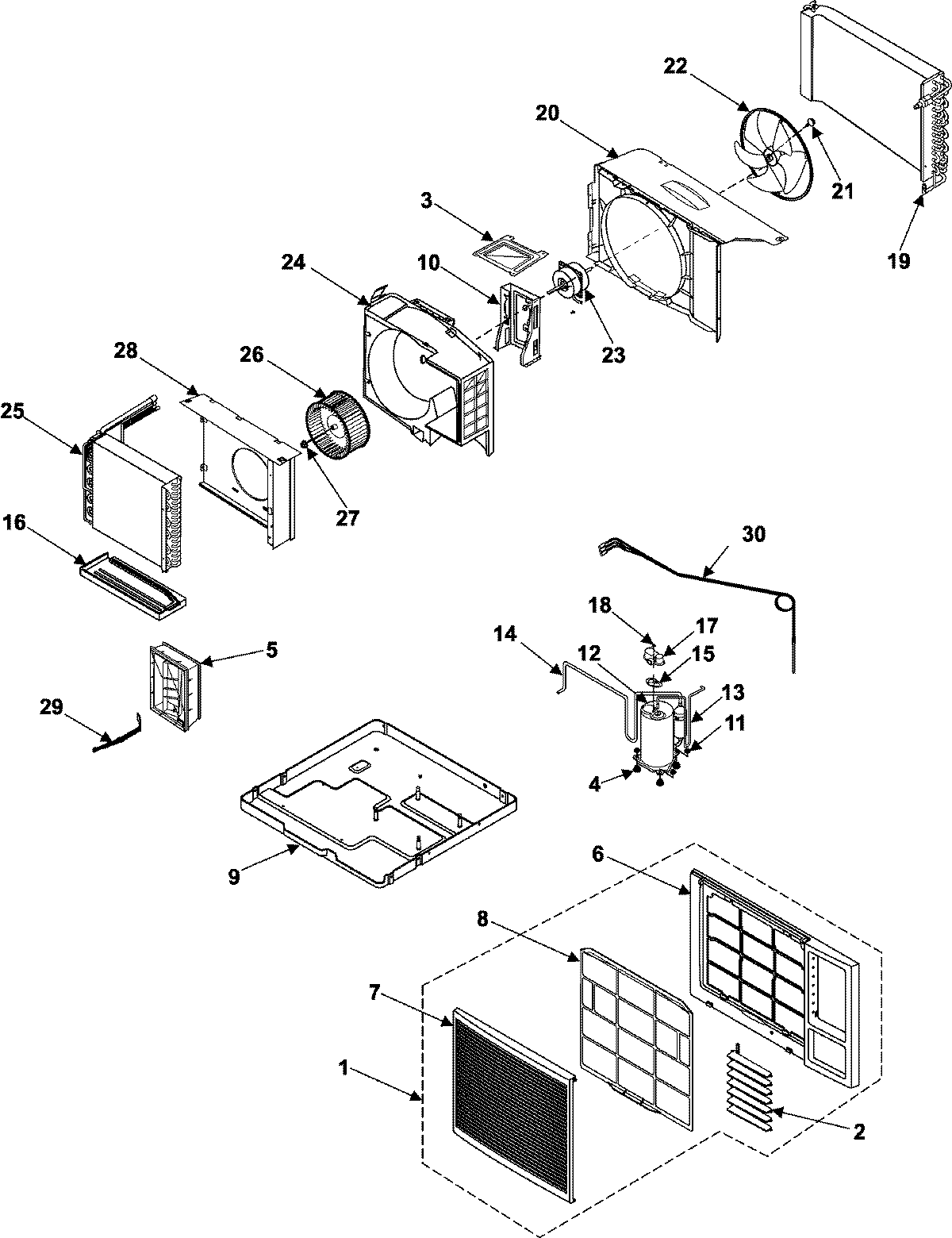

AW2492L 01 – CHASSIS ASSEMBLY

Products

Position	Product
1	MAY DB92-00506B
2	MAY DB66-00493A
3	MAY DB70-00342A
4	MAY DB73-00082A
5	MAY DB90-01219A
6	MAY DB64-00894A
7	MAY DB64-00895A
8	MAY DB63-00784B
9	MAY DB90-01215B
10	MAY DB61-01496A
12	MAY 55A240IU2EN
13	MAY DB62-02136A
14	MAY DB62-02724A
16	MAY DB63-00783A
18	SEE NOTE GROUND WIRE, GREEN
19	MAY DB96-02954D
20	MAY DB61-01495A
21	MAY 6021-001056
22	MAY DB67-00047B
23	MAY DB31-00214B
24	MAY DB97-01959A
25	MAY DB96-03108A
26	MAY DB67-00344A
27	MAY DB60-30028A
28	MAY DB90-01220A
29	MAY DB66-00492A
30	MAY DB96-03400B
