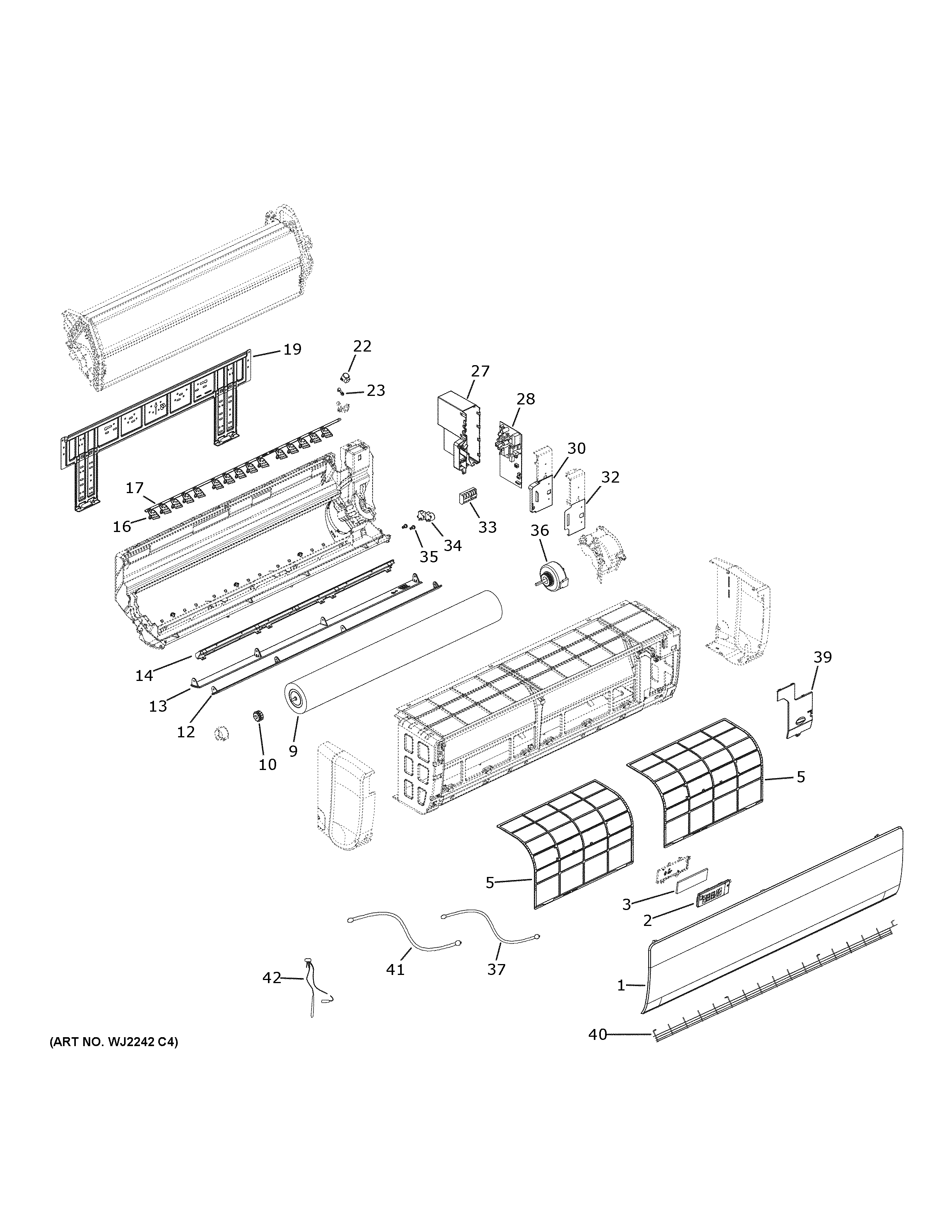

AW24LP2VHA ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X23062 GE Top Cover
2	WJ71X23030 GE Display Board Cover
3	WJ71X23051 GE Panel Display
5	AIR FILTER
9	CROSS FLOW FAN
10	CROSS FLOW FAN BEARING
12	WJ71X23063 GE Top Horizontal Louver
13	WJ71X23053 GE Horizontal Louver Bottom
14	WJ01X24243 GE Foam Snail
16	WJ71X23060 GE Louver Vertical
17	WJ71X23052 GE Connecting Rod
19	MOUNTING BRACKET
22	VERTICAL LOUVER MOTOR
23	LINK
27	ELECTRICAL BOX
28	WJ26X23588 GE Indoor Power Control Board
30	WJ76X24362 GE Electrical Box Cover
32	ELECTRICAL BOX COVER (METAL)
33	WJ26X23592 GE Terminal Block
34	WJ94X22766 GE Air Motor Louvre
35	WJ01X24220 GE Axletree Cover Assembly
36	WJ94X23054 GE Indoor Motor Assembly
37	WJ35X23134 GE Wiring Harness
39	COVER
40	GUARD
41	WJ35X23893 GE Wiring Harness
42	WJ26X23042 GE Temperature Sensor Assembly
