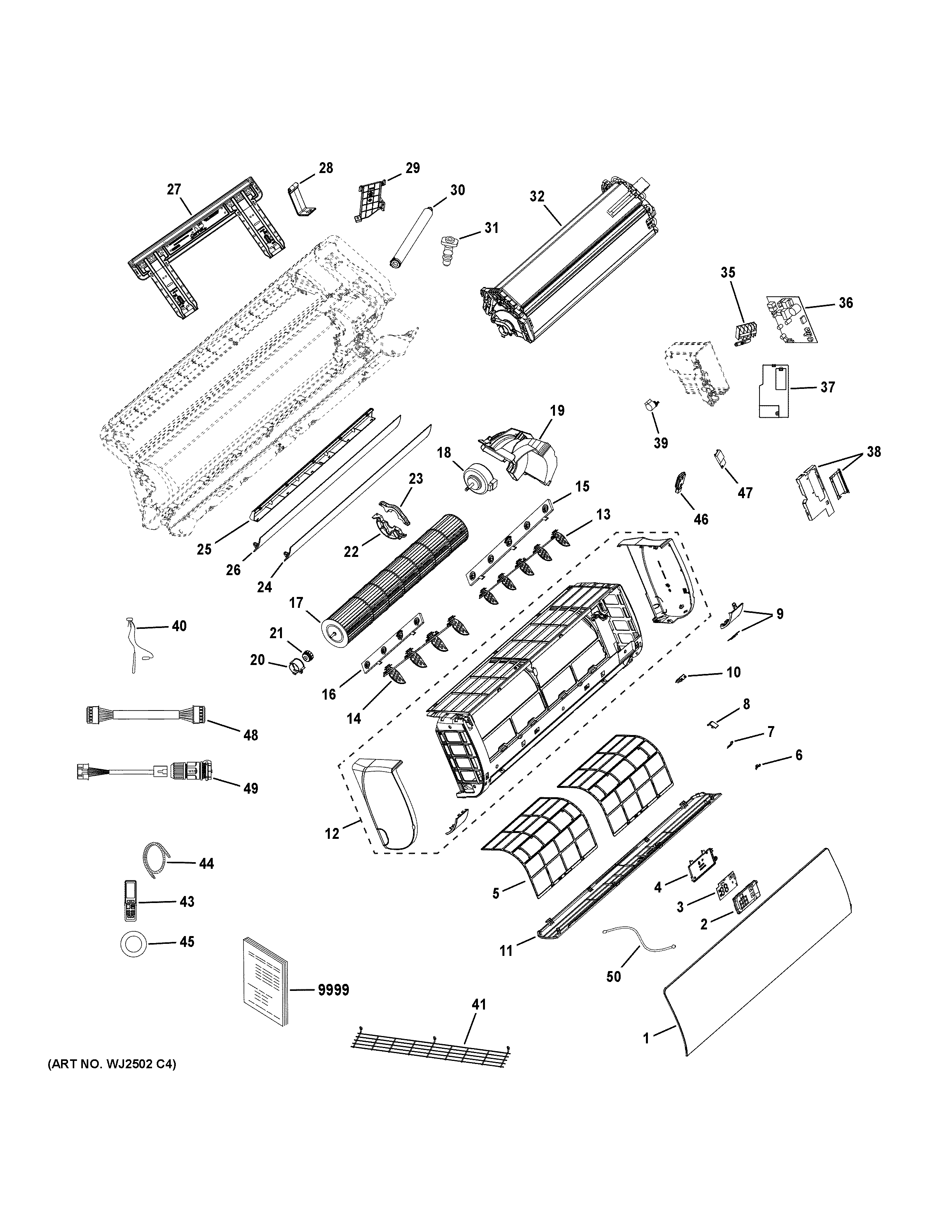

AW24TE2HDA1 ROOM AIR CONDITIONER

Products

Position	Product
1	WJ71X29562 GE Access Panel
2	WJ76X26408 GE Display Board Assembly
3	WJ26X26460 GE Display Panel
4	WJ76X27413 GE Display Box Cover
5	WJ85X26433 GE Air Filter
6	WJ01X26403 GE Panel Latch
7	WJ01X26404 GE Pin
8	WJ76X26422 GE Cover Screw
9	WJ76X29752 GE Right Cover
10	WJ76X26407 GE Power Switch Box
11	BOTTOM ACESS PANEL
12	WJ71X29751 GE Casing Assembly
13	WJ71X29746 GE Vertical Louvre
14	WJ71X29745 GE Louvre Vertical
15	WJ71X29742 GE 5-Hole Louver Socket
16	WJ71X29741 GE Louver Socket 4 Hole
17	WJ73X23255 GE Cross Flow Fan
18	WJ94X23054 GE Indoor Motor Assembly
19	WJ76X26430 GE Indoor Motor Cover
20	CROSS FLOW FAN BEARING COVER
21	WJ73X23028 GE Fan Cross Flow Bearing
22	WJ65X26399 GE Motor Bracket – Bottom
23	WJ65X26398 GE Top Motor Bracket
24	WJ71X26426 GE Horizontal Louver Assembly
25	WIRE COVER
26	WJ71X26427 GE Horizontal Louver
27	MOUNTING BRACKET
28	WJ65X29559 GE Drain Pipe Bracket
29	PIPE CHANEL COVER
30	WJ53X23256 GE Drain Pipe
31	WJ01X26401 GE Drain Plug
32	EVAPORATOR
35	WJ26X23043 GE Terminal Block
36	WJ26X29034 GE Indoor PCB
37	WJ76X29564 GE Cover Board
38	WJ76X29558 GE Metal Cover
39	WJ94X26439 GE Vertical Motor Louver
40	WJ26X23042 GE Temperature Sensor Assembly
41	WJ71X29797 GE Guard Outlet
43	REMOTE
44	WJ53X29553 GE Drain Hose
45	WJ53X28913 GE Ring Guard
46	WIFI module
47	WiFi WIRING HARNESS
48	RJ45
49	WIFI MODULE COVER
50	WJ35X33413 GE PCB Display Wire Harness
9999	PM OWNERS MANUAL
