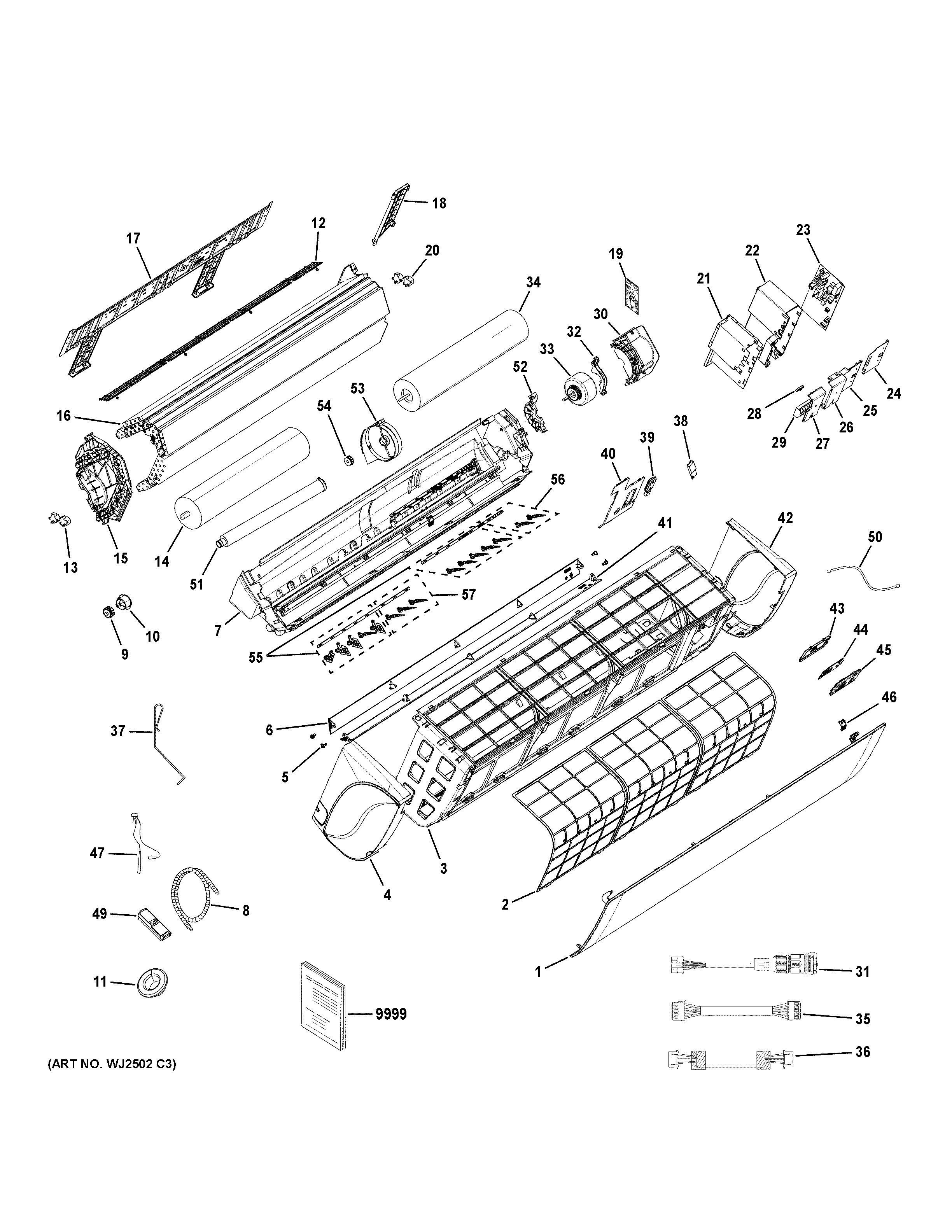

AW24TL2HFA1 ROOM AIR CONDITIONERadmin2025-04-26T08:46:22+00:00AW24TL2HFA1 ROOM AIR CONDITIONER ProductsPositionProduct1TOP PANEL2AIR FILTER3WJ76X29517 GE Casing4WJ71X30533 GE Left End Cap5WJ01X24235 GE Shaft Jacket6WJ71X24239 GE Flap Assembly7WJ71X30722 GE Evap Case Assembly W/Drain Pan8DRAIN HOSE9CROSS FLOW FAN BEARING10CROSS FLOW FAN BEARING COVER11WJ53X28913 GE Ring Guard12WJ71X29515 GE Fan Guard13LH HORIZONTAL LOUVER MOTOR14CROSS FLOW FAN RIGHT15WJ65X31114 GE Support Evaporator16WJ87X29754 GE Evaporator17MOUNTING BRACKET18WJ65X31113 GE Line Set Plate19WJ26X26464 GE Wired Control Adapter Board20WJ94X29526 GE Stepper Motor21WJ76X29662 GE Board Protector22WJ76X29661 GE Electrical Box23INDOOR PCB24WJ76X29660 GE Electrical Box Cover25WJ76X24362 GE Electrical Box Cover26WJ76X29514 GE Cover Protect Board27WJ76X29516 GE Electric Box Cover Board28WJ76X23057 GE Power Cable Cover29WJ35X29528 GE Terminal Block30WJ76X29520 GE Motor Cover31RJ4532WJ65X26398 GE Top Motor Bracket33INDOOR MOTOR34CROSS FLOW FAN LEFT35WiFi WIRING HARNESS36WJ35X27136 GE Wiring Harness37SENSOR CLIP38WIFI MODULE COVER39WiFi-module40WJ71X29524 GE Access Panel41WJ94X24391 GE Top Horizontal Louver42WJ71X30534 GE Right End Cap43WJ76X26408 GE Display Board Assembly44WJ26X26460 GE Display Panel45WJ76X26409 GE Display Board Cover46WJ76X29521 GE Screw Cover47WJ26X23042 GE Temperature Sensor Assembly49REMOTE50WJ35X33413 GE PCB Display Wire Harness51WJ53X29673 GE Drain Hose52WJ65X26399 GE Motor Bracket - Bottom53WJ65X29522 GE Fan Bracket54BEARING 155CONNECTING ROD56WJ71X29734 GE Vertical Louver57WJ71X30834 GE Vertical Louver Assembly9999PM OWNERS MANUAL9999PM INSTALLATION INSTRUCTION
