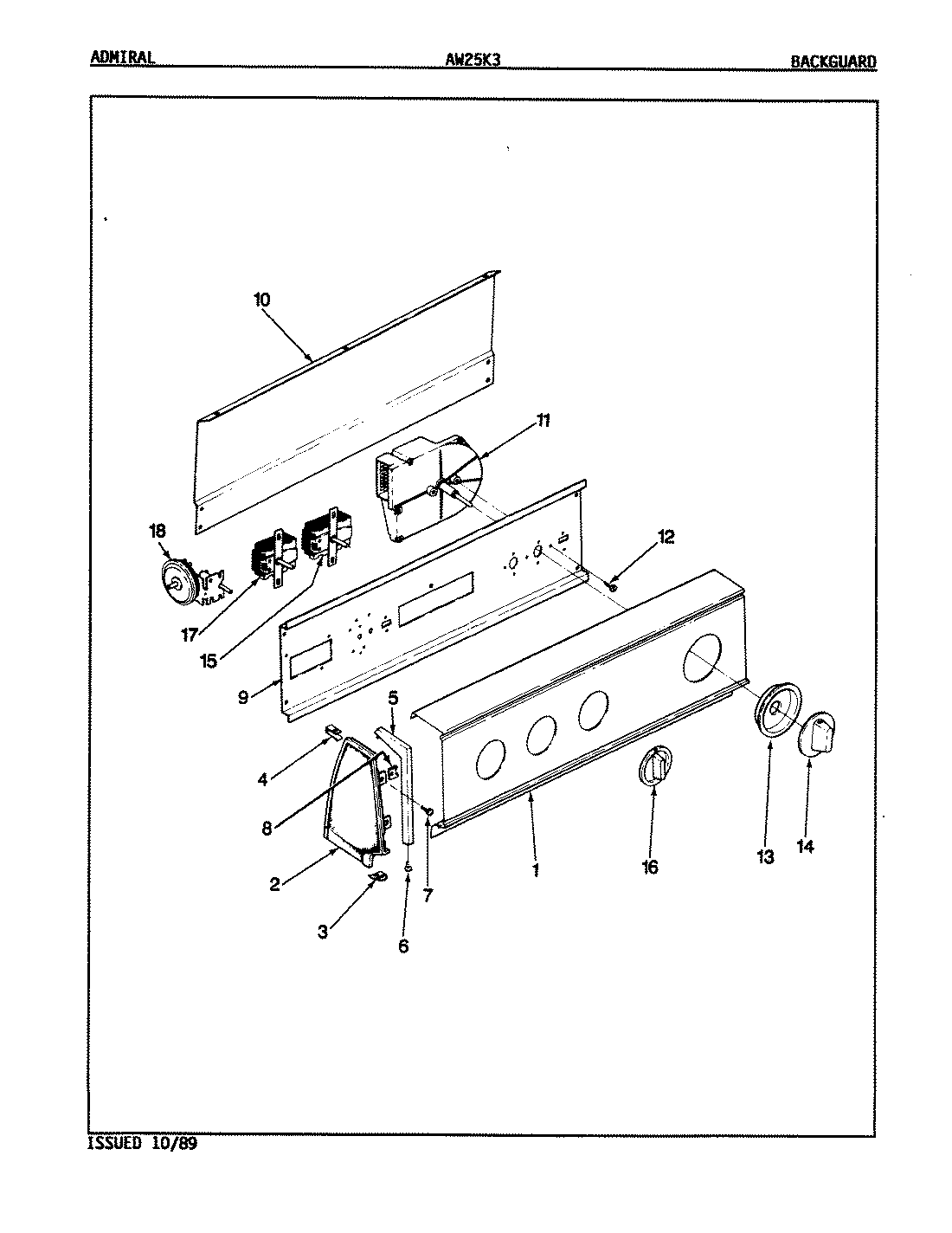

AW25K3A 04 – CONTROL PANEL (REV. E-J)

Products

Position	Product
NI	MAY 33-8304
1	MAY 35-2554
1	MAY 25-7649
2	MAY 35-2488
2	MAY 35-2487
3	MAY 34-9487
3	MAY 25-7697
3	MAY 25-7851
4	MAY 25-7435
4	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
5	MAY 53-0277
5	MAY 53-0278
6	MAY 25-7760
8	MAY 25-7702
9	MAY 53-1676
10	MAY 35-2688
10	MAY 25-7853
10	MAY 25-3457
11	MAY 35-2326
12	MAY 25-0205
13	MAY 35-2255
14	MAY 35-2187
15	MAY 35-0114
16	MAY 35-2185
17	MAY 35-2193
18	MAY 35-2145
18	WP90767 Whirlpool Screw
