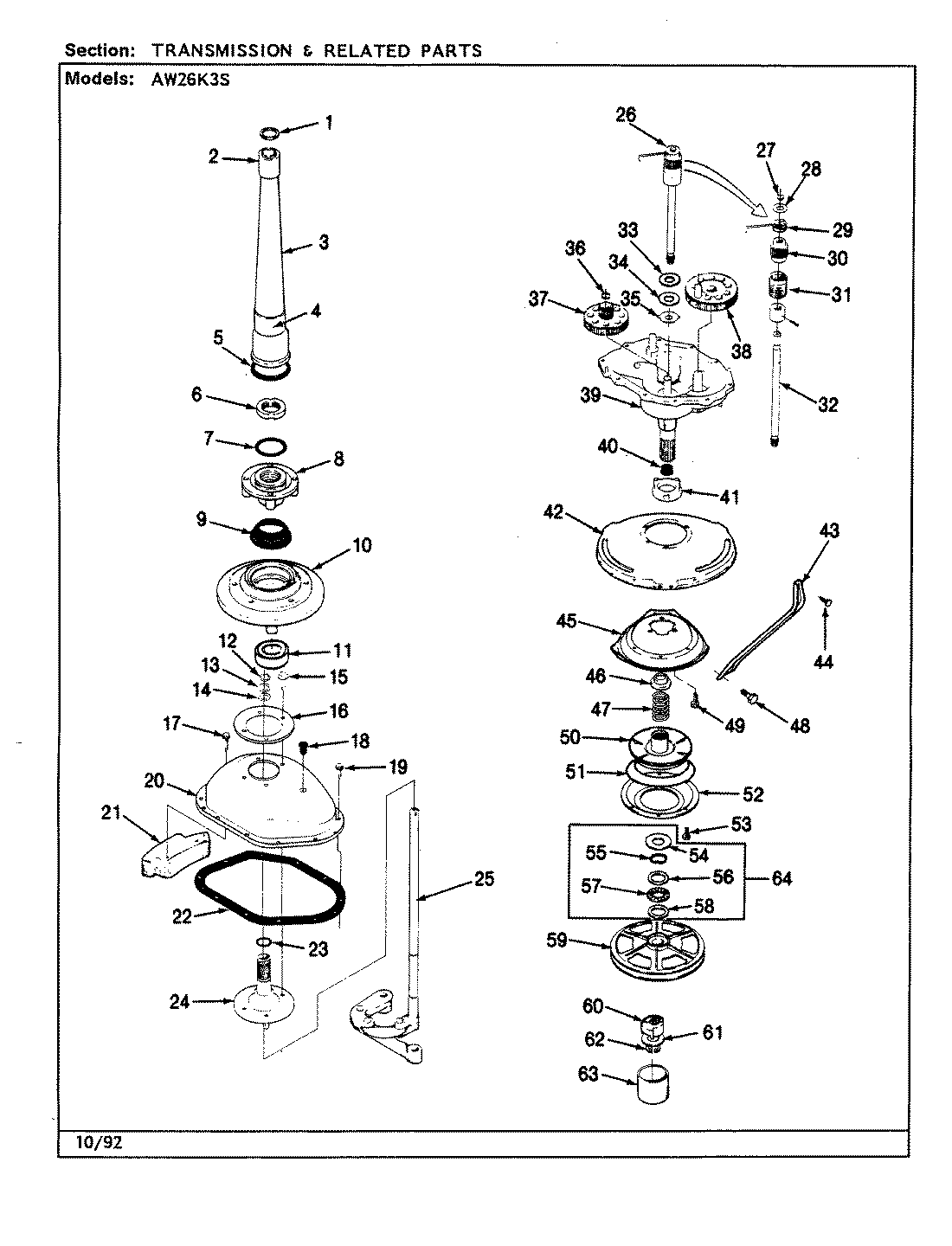

AW26K3AS 06 – TRANSMISSION (REV. A-E)

Products

Position	Product
NI	MAY LA-2175
NI	MAY 35-3748
1	MAY 25-7941
2	MAY 35-2835
3	MAY 35-2792
4	MAY 35-2983
4	MAY 33-6790
5	MAY 35-2906
6	MAY 35-2791
7	MAY 25-7938
8	MAY 35-2715
8	MAY 35-3647
9	MAY 35-2974
10	MAY 35-2716
11	MAY 35-2972
11	MAY 35-2205
12	MAY 25-7949
13	MAY 25-7057
14	MAY 25-7051
16	MAY 35-2981
18	MAY 35-2621
19	MAY 25-7926
20	MAY 35-2971
20	MAY 35-2620
21	MAY 35-2903
22	MAY 35-1030
23	MAY 25-7722
24	MAY 35-3702
24	MAY 35-2708
25	MAY 35-3804
25	MAY 35-3036
26	MAY LA-2176
27	MAY 25-7847
28	MAY 25-7416
28	MAY 25-7415
29	MAY 33-6114
30	MAY 35-2001
31	MAY 33-3195
32	MAY 35-2692
33	MAY 25-7274
34	MAY 35-2817
35	MAY 35-2070
36	MAY 25-7933
37	MAY 35-2527
38	MAY 35-2631
39	MAY 35-2812
40	MAY 35-2010
41	MAY 35-2973
41	MAY 35-2730
42	MAY 35-2732
42	MAY 35-3724
43	MAY 35-2798
45	MAY 35-2015
45	MAY 35-3698
46	MAY 35-2017
47	MAY 35-2112
48	MAY 25-7930
48	MAY 35-2025
49	MAY 25-7895
50	MAY 35-2948
51	MAY 35-2357
52	MAY 35-2018
53	MAY 25-7900
58	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
59	MAY 35-2683
60	MAY 35-2439
61	MAY 35-2132
61	MAY 35-2082
62	WP25-7854 Whirlpool Clip
63	MAY 35-2007
64	12002213 Whirlpool Washer Pulley and Thrust Bearing Kit
