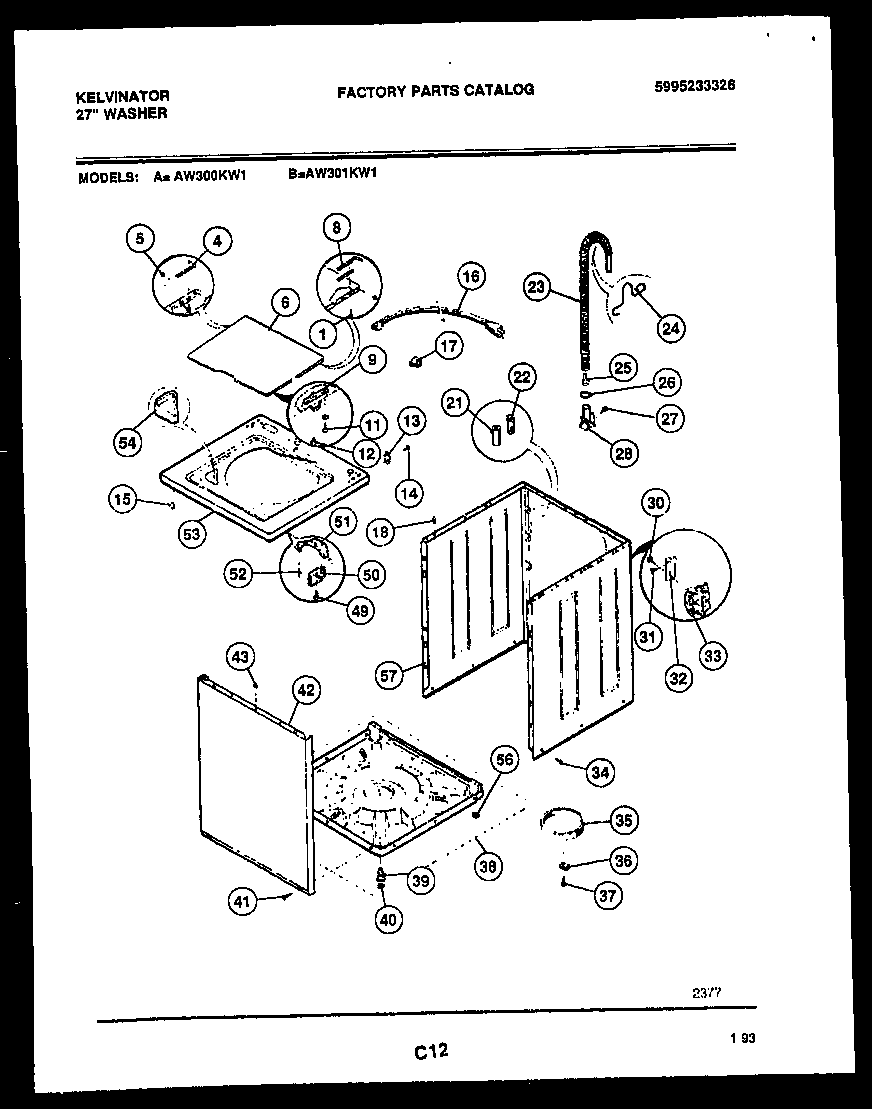

AW300KW1 02 – CABINET PARTS

Products

Position	Product
1	SCREW
4	WCI 5303210117
5	5303208743 Frigidaire Grommet
6	WCI 131048500
8	WCI 5303210122
9	131390000 Frigidaire Door Catch-Strike
11	3204368 Frigidaire Screw-Strike
12	134075500 Frigidaire Bumper-LID
13	WCI 5303208751
14	WCI 5308057419
15	3205821 Frigidaire Clip
16	5304505407 Frigidaire Cord
17	5303209428 Frigidaire Serv.Cord Bushing
21	WCI 5308014903
22	WCI 5303161252
23	WCI 3205414
24	RETAINER
25	3204375 Frigidaire Check Valve
26	WCI 5364154013
27	131205100 Frigidaire Screw
28	WCI 3204376
30	WCI 5303010202
31	5303015671 Frigidaire Bracket Termination Screw
32	WCI 3204378
33	134190200 Frigidaire Washer Water Valve
34	131205500 Frigidaire Screw
35	SNUBBER RING
36	SHIPPING BLOCK
37	SHIPPING SCREW
38	WCI 3204382
39	134548800 Frigidaire Washer Leg Levelling
40	PAD-LEG
41	131302800 Frigidaire Drum Vane Screw
42	WCI 131001803
43	PIN - LOCATING
49	131243800 Frigidaire Screw
50	WCI 3205646
51	WCI 3204391
52	RIVET (3)
53	WCI 5303937102
54	WCI 5303208778
56	131422200 Frigidaire P-1 Self Level Leg Pad
57	WCI 131062100
