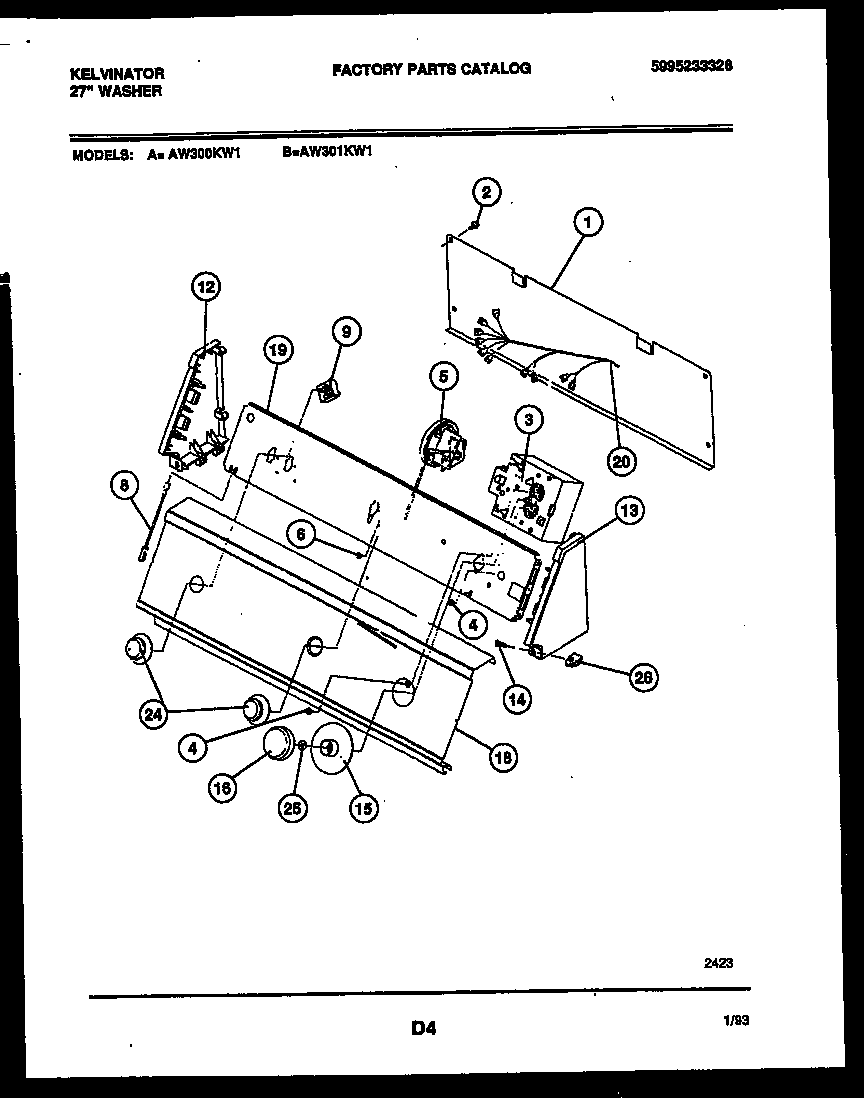

AW301KD1 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*29155	SCREW
*29155	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 5303271760
4	SCREW (2)
5	WCI 131047500
6	5303015671 Frigidaire Bracket Termination Screw
8	WCI 131062204
9	WCI 131047000
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	DIAL
16	WCI 5308014337
18	WCI 131080300
19	BRACKET – CONTROL
20	WCI 131060100
24	WCI 131081002
25	Spacer,washer ,timer shaft
26	CLIP
